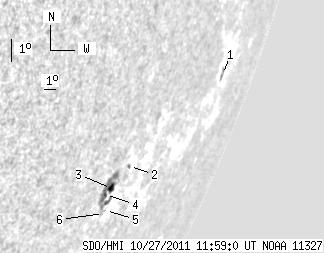

SDO HMI 2011-10-27 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.94 | 35.58 | 7.98 | 61.44 | -21.32 | 331.09 | 70.03 | 245.98 | 0.9585 | -387.3 | -283.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.64 | 0.00 | 9.97 | -18.81 | 338.34 | 77.29 | 249.84 | 0.9844 | 159.0 | 17.5 | |
| 0.00 | 1.48 | 0.00 | 2.49 | -21.13 | 330.68 | 69.63 | 246.14 | 0.9574 | -309.0 | -217.4 | |
| 3.73 | 29.16 | 6.04 | 46.83 | -21.77 | 329.71 | 68.65 | 245.28 | 0.9536 | -484.7 | -372.9 | |
| 1.21 | -3.00 | 1.94 | -3.00 | -21.94 | 329.35 | 68.29 | 245.03 | 0.9520 | -649.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 1.29 | -22.51 | 329.95 | 68.90 | 244.58 | 0.9556 | -140.0 | -133.1 | |
| 0.00 | 0.52 | 0.00 | 0.86 | -22.61 | 329.87 | 68.82 | 244.47 | 0.9553 | -161.0 | -135.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
