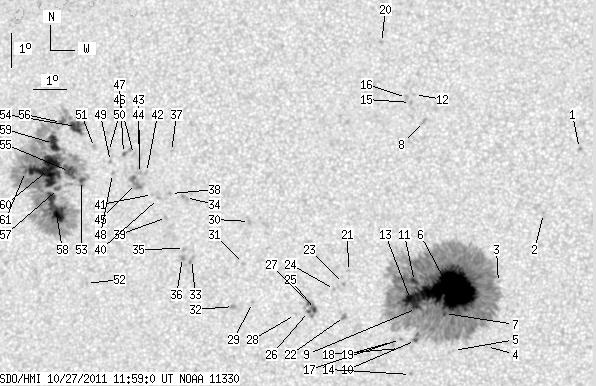

SDO HMI 2011-10-27 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244.13 | 1393.82 | 124.10 | 705.95 | 7.53 | 250.99 | -10.06 | 74.67 | 0.1799 | -128.0 | -130.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.65 | 0.00 | 0.82 | 10.53 | 259.57 | -1.49 | 14.46 | 0.1026 | -886.0 | -681.3 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 8.58 | 258.49 | -2.56 | 34.17 | 0.0791 | -744.0 | -645.2 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 6.52 | 257.15 | -3.90 | 66.58 | 0.0740 | -81.0 | -131.6 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 4.61 | 256.81 | -4.25 | 93.08 | 0.0743 | 710.0 | 547.1 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 4.48 | 255.82 | -5.24 | 93.81 | 0.0916 | 305.0 | 112.7 | |
| 117.07 | 827.20 | 58.26 | 411.88 | 6.27 | 255.71 | -5.34 | 74.81 | 0.0964 | -1430.6 | -459.0 | |
| 1.56 | -6.00 | 0.78 | -6.00 | 5.58 | 255.54 | -5.52 | 82.16 | 0.0970 | -1098.9 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.39 | 11.31 | 254.81 | -6.24 | 43.34 | 0.1560 | -924.0 | -704.2 | |
| 0.69 | -6.00 | 0.35 | -6.00 | 5.72 | 254.69 | -6.36 | 81.86 | 0.1119 | -1091.1 | 999999 | |
| 1.30 | -6.00 | 0.65 | -6.00 | 4.77 | 254.67 | -6.38 | 90.44 | 0.1113 | -844.0 | 999999 | |
| 3.12 | -6.00 | 1.56 | -6.00 | 6.53 | 254.62 | -6.43 | 75.00 | 0.1157 | -776.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 12.11 | 254.52 | -6.54 | 41.23 | 0.1696 | -782.0 | -550.8 | |
| 6.51 | -6.00 | 3.25 | -6.00 | 5.99 | 254.51 | -6.54 | 79.77 | 0.1157 | -1196.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 3.76 | 254.53 | -6.52 | 99.28 | 0.1154 | 823.0 | 699.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 11.87 | 254.40 | -6.65 | 42.70 | 0.1679 | -907.0 | -693.8 | |
| 0.00 | 2.78 | 0.00 | 1.40 | 12.02 | 254.28 | -6.78 | 42.62 | 0.1713 | -773.0 | -724.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 4.80 | 254.22 | -6.83 | 90.16 | 0.1191 | -717.0 | -592.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 4.53 | 254.20 | -6.86 | 92.41 | 0.1197 | -696.0 | -442.4 | |
| 0.00 | 3.12 | 0.00 | 1.56 | 4.73 | 254.01 | -7.04 | 90.65 | 0.1228 | 54.0 | 112.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.67 | 253.46 | -7.60 | 39.82 | 0.2015 | -829.0 | -656.4 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 6.80 | 252.62 | -8.43 | 76.48 | 0.1504 | -784.0 | -627.6 | |
| 0.00 | 3.30 | 0.00 | 1.65 | 5.46 | 252.52 | -8.53 | 85.50 | 0.1488 | -1199.0 | -869.3 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 6.44 | 252.48 | -8.58 | 79.01 | 0.1516 | -1065.0 | -892.6 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 6.26 | 252.21 | -8.85 | 80.47 | 0.1557 | -875.0 | -685.8 | |
| 1.48 | 14.06 | 0.74 | 7.06 | 5.66 | 251.64 | -9.41 | 84.65 | 0.1642 | -1066.0 | -778.0 | |
| 1.13 | -25.00 | 0.57 | -25.00 | 5.60 | 251.43 | -9.62 | 85.12 | 0.1677 | -820.5 | 999999 | |
| 1.30 | -25.00 | 0.65 | -25.00 | 5.86 | 251.43 | -9.63 | 83.52 | 0.1682 | -820.9 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 5.50 | 251.04 | -10.02 | 85.82 | 0.1744 | -783.0 | -560.3 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 5.84 | 249.72 | -11.33 | 84.48 | 0.1973 | 765.0 | 612.9 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 8.25 | 249.57 | -11.48 | 72.80 | 0.2072 | -920.0 | -729.3 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 7.00 | 249.42 | -11.63 | 78.93 | 0.2049 | 792.0 | 491.6 | |
| 0.00 | 3.04 | 0.00 | 1.54 | 5.71 | 249.14 | -11.91 | 85.32 | 0.2070 | 1016.0 | 794.1 | |
| 0.00 | 3.47 | 0.00 | 1.77 | 7.09 | 247.82 | -13.23 | 79.71 | 0.2320 | 842.0 | 785.0 | |
| 0.00 | 2.78 | 0.00 | 1.42 | 8.93 | 247.57 | -13.48 | 72.31 | 0.2428 | 686.0 | 708.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 7.41 | 247.59 | -13.46 | 78.50 | 0.2366 | 975.0 | 758.7 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 7.14 | 247.54 | -13.51 | 79.67 | 0.2368 | 1053.0 | 865.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.30 | 247.08 | -13.97 | 67.71 | 0.2579 | 846.0 | 628.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 9.04 | 247.10 | -13.95 | 72.40 | 0.2509 | 985.0 | 800.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 8.32 | 247.01 | -14.05 | 75.29 | 0.2495 | 816.0 | 713.9 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 8.88 | 246.74 | -14.32 | 73.38 | 0.2562 | 807.0 | 683.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 9.00 | 246.54 | -14.51 | 73.13 | 0.2598 | 772.0 | 623.8 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 9.65 | 246.33 | -14.73 | 70.96 | 0.2663 | 913.0 | 770.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 10.04 | 246.09 | -14.96 | 69.86 | 0.2720 | 808.0 | 676.9 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 9.62 | 246.11 | -14.94 | 71.32 | 0.2696 | 884.0 | 727.2 | |
| 0.00 | 11.28 | 0.00 | 5.80 | 9.32 | 246.00 | -15.05 | 72.51 | 0.2699 | 1008.0 | 877.2 | |
| 0.00 | 2.17 | 0.00 | 1.12 | 10.18 | 245.90 | -15.16 | 69.58 | 0.2759 | 821.0 | 675.3 | |
| 0.35 | 4.43 | 0.18 | 2.28 | 10.20 | 245.58 | -15.47 | 69.85 | 0.2809 | 889.0 | 804.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 9.60 | 245.27 | -15.79 | 72.24 | 0.2830 | -823.0 | -599.7 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 9.96 | 245.19 | -15.87 | 71.10 | 0.2859 | 716.0 | 542.9 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 10.25 | 245.11 | -15.95 | 70.19 | 0.2886 | 757.0 | 569.8 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 10.36 | 244.66 | -16.39 | 70.29 | 0.2962 | 240.0 | 93.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 6.30 | 244.59 | -16.47 | 84.17 | 0.2845 | 833.0 | 635.4 | |
| 2.17 | 468.19 | 1.13 | 244.13 | 9.37 | 244.30 | -16.75 | 73.86 | 0.2974 | 983.0 | 408.9 | |
| 10.07 | -53.00 | 5.24 | -53.00 | 10.98 | 244.06 | -17.00 | 68.96 | 0.3089 | 1052.9 | 999999 | |
| 11.46 | -53.00 | 5.95 | -53.00 | 9.63 | 243.91 | -17.14 | 73.34 | 0.3047 | 1146.2 | 999999 | |
| 1.74 | -53.00 | 0.91 | -53.00 | 11.09 | 243.57 | -17.48 | 69.12 | 0.3169 | 830.5 | 999999 | |
| 2.52 | -53.00 | 1.31 | -53.00 | 9.11 | 243.59 | -17.47 | 75.23 | 0.3079 | 1091.6 | 999999 | |
| 23.69 | -53.00 | 12.32 | -53.00 | 8.54 | 243.52 | -17.53 | 77.09 | 0.3070 | 1247.0 | 999999 | |
| 11.02 | -53.00 | 5.75 | -53.00 | 10.45 | 243.36 | -17.70 | 71.24 | 0.3171 | 1013.2 | 999999 | |
| 45.91 | -53.00 | 23.95 | -53.00 | 9.67 | 243.24 | -17.81 | 73.73 | 0.3155 | 1163.1 | 999999 | |
| 1.04 | -53.00 | 0.55 | -53.00 | 9.59 | 242.52 | -18.54 | 74.49 | 0.3268 | 796.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
