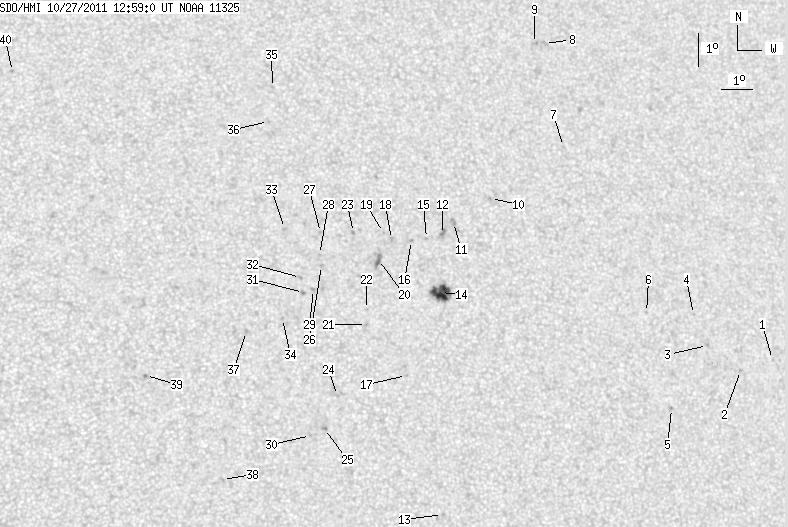

SDO HMI 2011-10-27 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.35 | 88.12 | 9.29 | 47.23 | 16.79 | 279.41 | 18.90 | 304.71 | 0.3798 | -73.4 | -47.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.60 | 13.74 | 291.11 | 30.60 | 288.56 | 0.5237 | -489.0 | -449.4 | |
| 0.00 | 1.56 | 0.00 | 0.90 | 13.46 | 289.93 | 29.43 | 288.55 | 0.5061 | -787.0 | -614.2 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 14.26 | 288.89 | 28.38 | 290.62 | 0.4942 | -721.0 | -557.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 15.21 | 288.53 | 28.02 | 292.68 | 0.4934 | -463.0 | -470.2 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 12.41 | 287.41 | 26.90 | 287.65 | 0.4657 | -849.0 | -720.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 15.33 | 286.91 | 26.41 | 293.95 | 0.4713 | -715.0 | -618.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 20.50 | 284.83 | 24.32 | 305.66 | 0.4768 | 716.0 | 545.5 | |
| 0.00 | 2.17 | 0.00 | 1.24 | 23.73 | 284.75 | 24.24 | 311.31 | 0.5025 | 693.0 | 595.7 | |
| 0.00 | 1.65 | 0.00 | 0.94 | 23.74 | 284.40 | 23.89 | 311.71 | 0.4986 | 843.0 | 645.0 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 18.98 | 282.08 | 21.58 | 305.68 | 0.4300 | -814.0 | -731.3 | |
| 0.00 | 3.82 | 0.00 | 2.07 | 18.28 | 280.75 | 20.24 | 305.84 | 0.4070 | -658.0 | -664.5 | |
| 0.00 | 5.99 | 0.00 | 3.23 | 17.92 | 280.34 | 19.83 | 305.59 | 0.3986 | -1016.0 | -796.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 9.48 | 279.61 | 19.10 | 284.83 | 0.3354 | 572.0 | 514.2 | |
| 17.35 | 23.95 | 9.29 | 12.82 | 16.16 | 280.08 | 19.57 | 301.97 | 0.3809 | -1043.9 | -761.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 17.82 | 279.79 | 19.29 | 306.05 | 0.3907 | -751.0 | -513.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 17.77 | 279.29 | 18.79 | 306.61 | 0.3837 | -949.0 | -737.5 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 13.68 | 278.74 | 18.24 | 297.41 | 0.3440 | -815.0 | -655.9 | |
| 0.00 | 2.17 | 0.00 | 1.16 | 17.81 | 278.64 | 18.13 | 307.63 | 0.3757 | -810.0 | -623.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 18.04 | 278.40 | 17.89 | 308.46 | 0.3747 | -562.0 | -456.2 | |
| 0.00 | 7.38 | 0.00 | 3.92 | 17.22 | 278.15 | 17.64 | 306.98 | 0.3640 | -67.0 | -86.5 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 15.25 | 277.58 | 17.07 | 303.03 | 0.3394 | -747.0 | -556.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 15.71 | 277.62 | 17.11 | 304.13 | 0.3437 | -657.0 | -446.4 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 18.06 | 277.41 | 16.91 | 310.00 | 0.3625 | 898.0 | 754.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 13.13 | 276.49 | 15.98 | 298.78 | 0.3073 | 683.0 | 513.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 12.15 | 276.02 | 15.51 | 296.46 | 0.2933 | 995.0 | 778.7 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 17.08 | 276.28 | 15.77 | 309.58 | 0.3387 | 950.0 | 627.9 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 18.08 | 276.34 | 15.83 | 311.82 | 0.3495 | 781.0 | 601.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 17.41 | 276.25 | 15.74 | 310.44 | 0.3416 | 795.0 | 644.9 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 16.35 | 275.96 | 15.45 | 308.36 | 0.3275 | 857.0 | 682.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 11.95 | 275.56 | 15.06 | 296.46 | 0.2851 | 859.0 | 628.0 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 16.27 | 275.63 | 15.13 | 308.72 | 0.3225 | 982.0 | 794.0 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 16.73 | 275.57 | 15.07 | 309.96 | 0.3262 | 756.0 | 610.6 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 18.23 | 275.18 | 14.68 | 314.21 | 0.3372 | 819.0 | 723.4 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 15.49 | 274.90 | 14.40 | 308.02 | 0.3055 | 890.0 | 701.5 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 22.60 | 275.22 | 14.71 | 322.67 | 0.3883 | 634.0 | 490.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 21.54 | 274.97 | 14.46 | 321.27 | 0.3730 | 784.0 | 602.0 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 15.12 | 273.73 | 13.23 | 309.26 | 0.2865 | 957.0 | 735.0 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 10.69 | 272.75 | 12.24 | 296.44 | 0.2338 | 836.0 | 638.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 13.85 | 270.49 | 9.99 | 313.12 | 0.2317 | 932.0 | 782.9 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 23.22 | 266.71 | 6.20 | 342.55 | 0.3324 | 790.0 | 615.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
