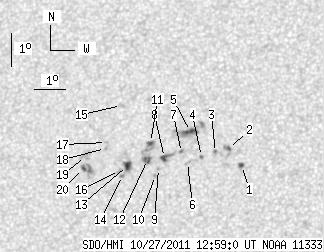

SDO HMI 2011-10-27 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.47 | 96.31 | 12.88 | 50.80 | 14.80 | 242.87 | -17.63 | 58.78 | 0.3438 | 2.8 | 101.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 3.56 | 0.99 | 1.85 | 14.42 | 245.64 | -14.87 | 55.76 | 0.3019 | -825.7 | -577.1 | |
| 1.48 | 5.47 | 0.77 | 2.85 | 14.93 | 245.19 | -15.32 | 55.12 | 0.3125 | -936.2 | -681.0 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 14.80 | 244.78 | -15.72 | 56.13 | 0.3170 | -774.0 | -618.5 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 14.67 | 244.34 | -16.16 | 57.16 | 0.3219 | -738.0 | -680.1 | |
| 6.33 | 23.86 | 3.33 | 12.54 | 15.42 | 243.93 | -16.58 | 55.82 | 0.3339 | -861.2 | -440.5 | |
| 0.00 | 2.26 | 0.00 | 1.18 | 14.48 | 243.91 | -16.60 | 58.32 | 0.3264 | -647.0 | -521.5 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 14.77 | 243.69 | -16.81 | 57.84 | 0.3319 | 496.0 | 526.6 | |
| 3.04 | 6.85 | 1.60 | 3.60 | 14.61 | 243.16 | -17.35 | 59.01 | 0.3380 | 851.6 | 581.0 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 14.27 | 242.99 | -17.51 | 60.12 | 0.3378 | 930.0 | 719.6 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 14.06 | 242.91 | -17.59 | 60.79 | 0.3374 | 898.0 | 734.9 | |
| 2.08 | 16.31 | 1.10 | 8.61 | 15.05 | 242.67 | -17.84 | 58.53 | 0.3484 | -501.2 | 407.4 | |
| 3.90 | -11.00 | 2.06 | -11.00 | 14.54 | 242.62 | -17.89 | 59.92 | 0.3452 | 979.1 | 999999 | |
| 4.34 | 6.16 | 2.29 | 3.26 | 14.34 | 241.99 | -18.52 | 61.21 | 0.3527 | -848.5 | -531.3 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 14.03 | 241.85 | -18.66 | 62.16 | 0.3525 | 964.0 | 667.2 | |
| 0.00 | 2.86 | 0.00 | 1.53 | 16.15 | 241.62 | -18.88 | 57.21 | 0.3715 | 868.0 | 544.1 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 14.18 | 241.74 | -18.77 | 61.90 | 0.3551 | -244.0 | -101.0 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 15.01 | 241.24 | -19.27 | 60.39 | 0.3681 | -334.0 | -270.1 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 14.83 | 241.22 | -19.28 | 60.86 | 0.3671 | 738.0 | 543.4 | |
| 0.00 | 6.07 | 0.00 | 3.24 | 14.57 | 240.60 | -19.91 | 62.20 | 0.3743 | 817.0 | 698.3 | |
| 1.39 | 10.15 | 0.74 | 5.41 | 14.21 | 240.56 | -19.94 | 63.12 | 0.3723 | 834.6 | 753.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
