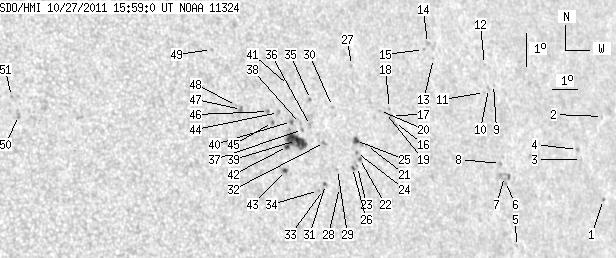

SDO HMI 2011-10-27 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.11 | 93.96 | 14.54 | 64.14 | 12.45 | 301.97 | 43.12 | 283.20 | 0.6858 | 167.1 | 24.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.65 | 9.83 | 312.68 | 53.82 | 278.65 | 0.8067 | -589.0 | -543.4 | |
| 0.00 | 1.04 | 0.00 | 0.88 | 12.29 | 313.30 | 54.44 | 281.67 | 0.8139 | -288.0 | -204.0 | |
| 0.00 | 1.04 | 0.00 | 0.85 | 11.09 | 311.87 | 53.01 | 280.25 | 0.7988 | -438.0 | -347.4 | |
| 0.00 | 1.47 | 0.00 | 1.21 | 11.40 | 311.75 | 52.89 | 280.65 | 0.7977 | -634.0 | -493.8 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 8.71 | 308.20 | 49.34 | 277.33 | 0.7583 | -275.0 | -208.3 | |
| 0.00 | 2.43 | 0.00 | 1.84 | 10.67 | 308.08 | 49.22 | 279.93 | 0.7578 | -697.0 | -580.4 | |
| 0.00 | 4.94 | 0.00 | 3.74 | 10.82 | 308.06 | 49.21 | 280.13 | 0.7577 | -582.0 | -611.6 | |
| 0.00 | 1.39 | 0.00 | 1.05 | 11.22 | 307.97 | 49.11 | 280.66 | 0.7569 | -562.0 | -481.5 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 13.59 | 308.25 | 49.39 | 283.76 | 0.7620 | -435.0 | -434.4 | |
| 0.00 | 1.82 | 0.00 | 1.38 | 13.49 | 307.98 | 49.12 | 283.66 | 0.7590 | -536.0 | -414.2 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 13.38 | 307.76 | 48.91 | 283.54 | 0.7565 | -430.0 | -395.6 | |
| 0.00 | 0.52 | 0.00 | 0.40 | 14.22 | 308.00 | 49.15 | 284.61 | 0.7600 | -416.0 | -414.5 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 14.54 | 305.74 | 46.88 | 285.37 | 0.7351 | -591.0 | -513.2 | |
| 0.00 | 1.99 | 0.00 | 1.45 | 15.00 | 305.60 | 46.74 | 286.03 | 0.7342 | -568.0 | -443.7 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 14.83 | 305.37 | 46.51 | 285.83 | 0.7314 | -479.0 | -522.5 | |
| 0.00 | 2.26 | 0.00 | 1.57 | 12.72 | 303.56 | 44.71 | 283.20 | 0.7071 | -868.0 | -752.5 | |
| 0.00 | 1.21 | 0.00 | 0.85 | 12.94 | 303.48 | 44.63 | 283.52 | 0.7065 | -837.0 | -753.1 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 13.15 | 303.44 | 44.59 | 283.82 | 0.7063 | -741.0 | -580.8 | |
| 0.00 | 1.21 | 0.00 | 0.84 | 13.05 | 303.25 | 44.39 | 283.70 | 0.7038 | -710.0 | -572.9 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 13.12 | 303.01 | 44.15 | 283.84 | 0.7010 | -812.0 | -665.6 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 12.11 | 302.24 | 43.38 | 282.51 | 0.6902 | 377.0 | 271.7 | |
| 0.35 | 1.65 | 0.24 | 1.12 | 11.73 | 301.87 | 43.01 | 282.02 | 0.6852 | 695.2 | 486.5 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 11.50 | 301.74 | 42.88 | 281.69 | 0.6833 | 634.0 | 558.0 | |
| 0.00 | 1.30 | 0.00 | 0.88 | 11.92 | 301.78 | 42.92 | 282.30 | 0.6843 | 719.0 | 623.1 | |
| 2.43 | 4.42 | 1.65 | 3.00 | 12.28 | 301.81 | 42.95 | 282.82 | 0.6852 | 663.9 | 488.8 | |
| 0.95 | 1.47 | 0.64 | 0.99 | 11.48 | 301.53 | 42.67 | 281.69 | 0.6807 | 664.8 | 696.8 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 14.53 | 302.15 | 43.29 | 286.02 | 0.6929 | 517.0 | 404.5 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 10.92 | 300.89 | 42.03 | 280.94 | 0.6720 | 685.0 | 521.0 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 11.46 | 300.91 | 42.05 | 281.74 | 0.6728 | -662.0 | -579.0 | |
| 0.00 | 0.52 | 0.00 | 0.35 | 13.35 | 301.08 | 42.22 | 284.51 | 0.6777 | 569.0 | 430.5 | |
| 0.00 | 1.65 | 0.00 | 1.09 | 11.04 | 300.34 | 41.48 | 281.19 | 0.6651 | -789.0 | -581.7 | |
| 0.00 | 2.34 | 0.00 | 1.56 | 12.29 | 300.53 | 41.67 | 283.04 | 0.6692 | 553.0 | 401.9 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 10.89 | 300.23 | 41.38 | 280.99 | 0.6636 | 355.0 | 264.1 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 10.87 | 300.03 | 41.17 | 280.99 | 0.6609 | 380.0 | 344.8 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 13.61 | 300.23 | 41.37 | 285.06 | 0.6676 | 692.0 | 629.7 | |
| 0.00 | 2.26 | 0.00 | 1.49 | 12.83 | 300.07 | 41.21 | 283.93 | 0.6642 | 616.0 | 454.8 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 12.73 | 299.72 | 40.86 | 283.84 | 0.6596 | 435.0 | 318.2 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 12.91 | 299.68 | 40.82 | 284.13 | 0.6593 | 551.0 | 428.9 | |
| 15.09 | 24.63 | 9.87 | 16.09 | 12.41 | 299.42 | 40.56 | 283.42 | 0.6552 | 772.4 | 660.1 | |
| 0.00 | 1.47 | 0.00 | 0.96 | 12.99 | 299.33 | 40.47 | 284.32 | 0.6550 | 779.0 | 686.6 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 14.08 | 299.43 | 40.57 | 285.93 | 0.6584 | 658.0 | 533.0 | |
| 1.47 | -39.00 | 0.96 | -39.00 | 12.25 | 299.03 | 40.17 | 283.25 | 0.6499 | 801.4 | 999999 | |
| 1.82 | 2.34 | 1.18 | 1.52 | 11.54 | 298.82 | 39.96 | 282.19 | 0.6461 | 818.3 | 729.3 | |
| 0.00 | 2.34 | 0.00 | 1.52 | 13.29 | 298.86 | 40.01 | 284.87 | 0.6497 | 768.0 | 609.5 | |
| 0.00 | 1.13 | 0.00 | 0.73 | 13.00 | 298.57 | 39.71 | 284.49 | 0.6453 | 802.0 | 714.9 | |
| 0.00 | 1.47 | 0.00 | 0.95 | 13.34 | 298.47 | 39.62 | 285.03 | 0.6448 | 795.0 | 666.8 | |
| 0.00 | 2.43 | 0.00 | 1.55 | 13.45 | 297.43 | 38.57 | 285.45 | 0.6314 | 831.0 | 716.7 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 13.58 | 297.26 | 38.40 | 285.70 | 0.6295 | 693.0 | 578.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 15.32 | 296.63 | 37.77 | 288.60 | 0.6256 | 478.0 | 438.3 | |
| 0.00 | 2.08 | 0.00 | 1.20 | 13.66 | 289.15 | 30.30 | 288.54 | 0.5192 | -873.0 | -725.3 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 14.24 | 288.99 | 30.13 | 289.71 | 0.5190 | -703.0 | -593.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
