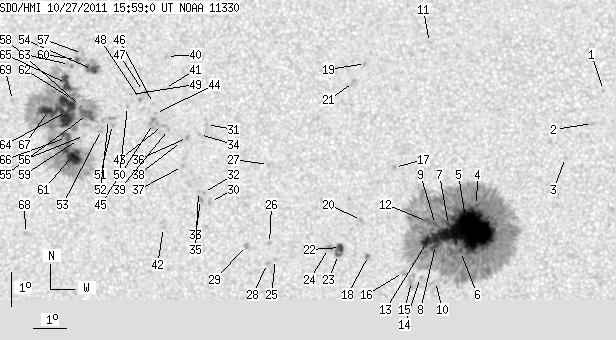

SDO HMI 2011-10-27 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 274.85 | 1345.06 | 138.45 | 676.91 | 7.47 | 251.06 | -7.80 | 69.91 | 0.1427 | -226.8 | -112.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.56 | 10.46 | 259.76 | 0.91 | 350.98 | 0.0995 | -876.0 | -652.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.47 | 259.43 | 0.57 | 353.06 | 0.0817 | -969.0 | -627.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 8.46 | 258.61 | -0.24 | 3.82 | 0.0635 | -917.0 | -696.5 | |
| 1.13 | 806.89 | 0.56 | 400.56 | 7.02 | 255.94 | -2.91 | 52.95 | 0.0635 | -1053.8 | -456.5 | |
| 141.90 | -4.00 | 70.42 | -4.00 | 6.28 | 255.68 | -3.18 | 65.52 | 0.0609 | -1563.2 | 999999 | |
| 1.30 | -4.00 | 0.65 | -4.00 | 5.65 | 255.47 | -3.38 | 76.43 | 0.0607 | -1091.7 | 999999 | |
| 1.91 | -4.00 | 0.95 | -4.00 | 6.45 | 255.11 | -3.75 | 66.53 | 0.0712 | -1151.8 | 999999 | |
| 1.73 | -4.00 | 0.86 | -4.00 | 5.82 | 254.72 | -4.14 | 76.44 | 0.0742 | -1130.6 | 999999 | |
| 2.08 | -4.00 | 1.03 | -4.00 | 6.45 | 254.72 | -4.14 | 68.53 | 0.0775 | -861.2 | 999999 | |
| 0.00 | 4.08 | 0.00 | 2.02 | 4.75 | 254.73 | -4.13 | 91.12 | 0.0721 | -774.0 | -484.0 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 11.88 | 254.47 | -4.39 | 31.37 | 0.1445 | -799.0 | -617.2 | |
| 3.56 | -4.00 | 1.77 | -4.00 | 6.54 | 254.47 | -4.38 | 68.58 | 0.0819 | -796.0 | 999999 | |
| 6.85 | -4.00 | 3.40 | -4.00 | 5.91 | 254.45 | -4.41 | 76.14 | 0.0791 | -1245.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 4.87 | 254.28 | -4.58 | 89.51 | 0.0799 | -737.0 | -496.4 | |
| 0.00 | 6.59 | 0.00 | 3.28 | 4.75 | 254.01 | -4.85 | 90.95 | 0.0846 | -216.0 | -172.0 | |
| 0.00 | 2.78 | 0.00 | 1.38 | 5.01 | 253.77 | -5.09 | 87.88 | 0.0888 | 77.0 | 43.5 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 8.14 | 253.46 | -5.39 | 58.14 | 0.1101 | -976.0 | -745.7 | |
| 1.04 | 2.08 | 0.52 | 1.04 | 5.51 | 252.71 | -6.15 | 83.52 | 0.1077 | -1017.9 | -929.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.24 | 252.53 | -6.33 | 44.02 | 0.1563 | -997.0 | -740.1 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 6.55 | 252.49 | -6.37 | 74.63 | 0.1148 | -978.0 | -712.8 | |
| 0.00 | 2.86 | 0.00 | 1.43 | 10.67 | 252.17 | -6.68 | 48.27 | 0.1539 | -822.0 | -756.6 | |
| 4.68 | 9.11 | 2.34 | 4.55 | 5.74 | 251.87 | -6.99 | 82.35 | 0.1228 | -1096.0 | -1057.1 | |
| 2.95 | -22.00 | 1.47 | -22.00 | 5.53 | 251.81 | -7.05 | 84.10 | 0.1234 | -962.0 | 999999 | |
| 0.00 | 4.34 | 0.00 | 2.17 | 5.71 | 251.50 | -7.35 | 82.95 | 0.1289 | -816.0 | -679.8 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 5.36 | 249.91 | -8.95 | 86.29 | 0.1559 | 910.0 | 602.7 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 5.83 | 249.72 | -9.14 | 83.38 | 0.1598 | 857.0 | 580.8 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 8.19 | 249.64 | -9.22 | 69.46 | 0.1701 | -915.0 | -735.2 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 5.24 | 249.67 | -9.19 | 87.14 | 0.1600 | 1007.0 | 738.8 | |
| 0.00 | 2.69 | 0.00 | 1.35 | 5.77 | 249.02 | -9.84 | 84.19 | 0.1716 | 1044.0 | 803.4 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 7.06 | 247.90 | -10.96 | 77.98 | 0.1938 | 889.0 | 741.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.35 | 247.71 | -11.15 | 67.20 | 0.2079 | 933.0 | 731.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 7.32 | 247.68 | -11.18 | 76.87 | 0.1984 | 1118.0 | 956.9 | |
| 0.00 | 2.95 | 0.00 | 1.49 | 7.11 | 247.59 | -11.27 | 78.00 | 0.1991 | 1066.0 | 858.9 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 9.05 | 247.50 | -11.35 | 68.91 | 0.2093 | 992.0 | 768.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 7.35 | 247.52 | -11.33 | 76.90 | 0.2010 | 862.0 | 745.6 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 8.96 | 247.14 | -11.72 | 69.90 | 0.2146 | 1108.0 | 864.5 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 8.09 | 247.01 | -11.84 | 73.98 | 0.2124 | 880.0 | 756.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 8.83 | 246.96 | -11.90 | 70.70 | 0.2169 | 913.0 | 684.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 9.18 | 246.55 | -12.31 | 69.77 | 0.2254 | 987.0 | 793.1 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 11.37 | 246.40 | -12.46 | 61.36 | 0.2421 | 721.0 | 455.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.41 | 246.37 | -12.48 | 65.05 | 0.2355 | 858.0 | 644.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 6.26 | 246.48 | -12.38 | 82.87 | 0.2157 | 843.0 | 692.1 | |
| 0.00 | 2.60 | 0.00 | 1.32 | 9.30 | 246.36 | -12.50 | 69.55 | 0.2290 | 885.0 | 771.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 9.65 | 246.13 | -12.73 | 68.43 | 0.2347 | 1000.0 | 816.7 | |
| 0.00 | 6.68 | 0.00 | 3.40 | 9.35 | 246.08 | -12.78 | 69.71 | 0.2338 | 714.0 | 843.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 9.95 | 246.05 | -12.80 | 67.35 | 0.2376 | 769.0 | 639.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 10.30 | 245.73 | -13.13 | 66.47 | 0.2449 | 858.0 | 737.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 10.06 | 245.64 | -13.21 | 67.51 | 0.2447 | 950.0 | 734.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.21 | 245.33 | -13.53 | 67.41 | 0.2505 | 750.0 | 511.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 9.85 | 245.25 | -13.61 | 68.88 | 0.2496 | 910.0 | 621.9 | |
| 0.00 | 2.86 | 0.00 | 1.47 | 9.30 | 244.81 | -14.05 | 71.50 | 0.2538 | 74.0 | 117.9 | |
| 0.00 | 5.81 | 0.00 | 2.98 | 9.45 | 244.67 | -14.18 | 71.09 | 0.2566 | 830.0 | 678.8 | |
| 0.00 | 3.04 | 0.00 | 1.56 | 9.14 | 244.47 | -14.39 | 72.45 | 0.2585 | 308.0 | 180.7 | |
| 8.24 | 15.27 | 4.24 | 7.86 | 10.93 | 244.11 | -14.75 | 66.49 | 0.2739 | 1118.8 | 636.3 | |
| 9.63 | 406.70 | 4.95 | 209.70 | 9.58 | 244.01 | -14.84 | 71.32 | 0.2678 | 1186.3 | 437.9 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 8.95 | 243.95 | -14.91 | 73.67 | 0.2660 | 771.0 | 539.9 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 11.40 | 243.77 | -15.09 | 65.36 | 0.2820 | 276.0 | 261.5 | |
| 0.78 | -55.00 | 0.40 | -55.00 | 9.82 | 243.78 | -15.07 | 70.74 | 0.2727 | 1013.7 | 999999 | |
| 0.00 | 2.78 | 0.00 | 1.43 | 8.83 | 243.77 | -15.09 | 74.28 | 0.2685 | 408.0 | 451.9 | |
| 1.91 | 5.03 | 0.99 | 2.60 | 11.22 | 243.59 | -15.27 | 66.19 | 0.2836 | 851.9 | 630.9 | |
| 17.17 | -55.00 | 8.83 | -55.00 | 8.35 | 243.60 | -15.26 | 76.18 | 0.2694 | 1283.1 | 999999 | |
| 1.99 | -55.00 | 1.03 | -55.00 | 10.02 | 243.52 | -15.33 | 70.31 | 0.2778 | 1034.6 | 999999 | |
| 0.00 | 3.12 | 0.00 | 1.61 | 11.07 | 243.38 | -15.48 | 66.97 | 0.2859 | 540.0 | 543.0 | |
| 34.95 | -55.00 | 18.02 | -55.00 | 9.66 | 243.35 | -15.50 | 71.74 | 0.2787 | 1272.1 | 999999 | |
| 10.23 | -55.00 | 5.28 | -55.00 | 10.49 | 243.31 | -15.55 | 68.94 | 0.2837 | 1032.7 | 999999 | |
| 6.94 | -55.00 | 3.57 | -55.00 | 8.88 | 243.39 | -15.47 | 74.43 | 0.2748 | 1181.6 | 999999 | |
| 13.88 | -55.00 | 7.17 | -55.00 | 9.68 | 242.79 | -16.07 | 72.23 | 0.2878 | 987.1 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 5.99 | 242.21 | -16.64 | 85.27 | 0.2871 | 941.0 | 749.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 9.95 | 241.64 | -17.22 | 72.37 | 0.3073 | 775.0 | 611.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
