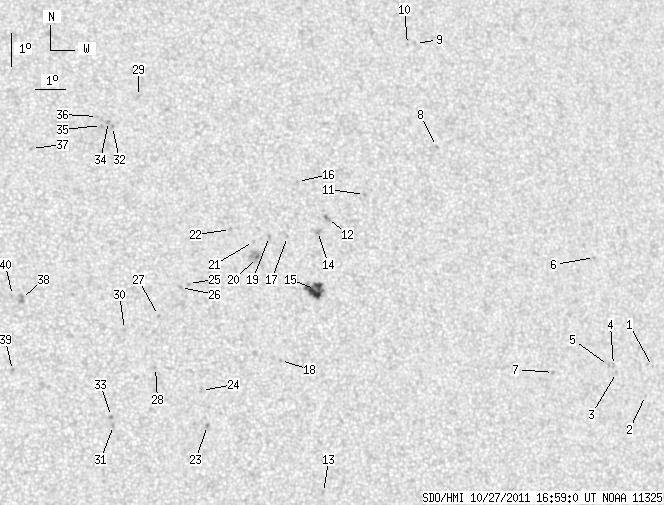

SDO HMI 2011-10-27 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.61 | 83.65 | 9.56 | 45.45 | 16.62 | 279.18 | 20.88 | 302.32 | 0.4051 | -9.4 | 68.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.47 | 13.41 | 291.45 | 33.15 | 286.98 | 0.5583 | -394.0 | -372.7 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 12.56 | 291.07 | 32.76 | 285.58 | 0.5505 | -527.0 | -477.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 13.29 | 290.12 | 31.82 | 287.24 | 0.5394 | -613.0 | -496.3 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 13.51 | 290.05 | 31.74 | 287.66 | 0.5390 | -655.0 | -557.8 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 13.51 | 289.87 | 31.56 | 287.75 | 0.5365 | -707.0 | -629.8 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 16.79 | 289.91 | 31.60 | 293.59 | 0.5496 | -666.0 | -516.4 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 13.39 | 287.89 | 29.59 | 288.34 | 0.5081 | -695.0 | -581.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 20.41 | 284.89 | 26.59 | 303.41 | 0.5046 | 759.0 | 596.3 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 23.64 | 284.79 | 26.49 | 308.95 | 0.5275 | 694.0 | 559.9 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 23.62 | 284.50 | 26.19 | 309.19 | 0.5239 | 679.0 | 493.6 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 19.02 | 282.14 | 23.83 | 303.39 | 0.4594 | -879.0 | -706.0 | |
| 0.00 | 3.64 | 0.00 | 2.00 | 18.33 | 280.77 | 22.47 | 303.41 | 0.4364 | -924.0 | -756.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 10.07 | 279.79 | 21.49 | 285.03 | 0.3750 | 788.0 | 649.2 | |
| 0.00 | 3.64 | 0.00 | 1.99 | 17.94 | 280.38 | 22.08 | 303.03 | 0.4283 | -950.0 | -764.1 | |
| 16.74 | 20.81 | 9.09 | 11.30 | 16.18 | 280.09 | 21.79 | 299.58 | 0.4117 | -1026.5 | -761.3 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 19.49 | 279.91 | 21.61 | 306.67 | 0.4347 | -748.0 | -638.8 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 17.82 | 279.35 | 21.05 | 303.91 | 0.4138 | -731.0 | -563.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 14.07 | 278.72 | 20.41 | 296.06 | 0.3782 | -663.0 | -534.6 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 17.84 | 278.75 | 20.45 | 304.65 | 0.4060 | -830.0 | -652.5 | |
| 0.87 | 9.28 | 0.47 | 5.00 | 17.21 | 278.28 | 19.98 | 303.86 | 0.3947 | -443.1 | 118.9 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 17.70 | 278.20 | 19.90 | 305.03 | 0.3977 | 841.0 | 603.9 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 18.09 | 277.49 | 19.18 | 306.79 | 0.3916 | 793.0 | 597.4 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 12.18 | 276.20 | 17.89 | 293.67 | 0.3294 | 821.0 | 717.5 | |
| 0.00 | 2.08 | 0.00 | 1.09 | 13.23 | 276.08 | 17.78 | 296.75 | 0.3343 | 782.0 | 611.4 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 16.48 | 275.94 | 17.63 | 305.27 | 0.3573 | 863.0 | 772.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 16.36 | 275.67 | 17.36 | 305.39 | 0.3527 | 949.0 | 728.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 15.53 | 274.88 | 16.57 | 304.49 | 0.3349 | 855.0 | 744.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 13.96 | 274.66 | 16.36 | 300.62 | 0.3190 | 875.0 | 707.2 | |
| 0.00 | 1.65 | 0.00 | 0.89 | 22.27 | 274.91 | 16.61 | 318.85 | 0.4037 | 787.0 | 610.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 15.13 | 273.76 | 15.45 | 305.22 | 0.3162 | 737.0 | 669.1 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 12.25 | 273.22 | 14.91 | 297.63 | 0.2851 | 832.0 | 740.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 21.35 | 273.94 | 15.63 | 318.84 | 0.3829 | 821.0 | 719.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 12.52 | 273.17 | 14.86 | 298.56 | 0.2864 | 859.0 | 729.1 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 21.51 | 273.82 | 15.52 | 319.33 | 0.3836 | 853.0 | 773.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 21.39 | 273.58 | 15.27 | 319.54 | 0.3796 | 885.0 | 666.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 21.67 | 273.47 | 15.17 | 320.24 | 0.3818 | 646.0 | 496.4 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 20.72 | 271.21 | 12.90 | 322.84 | 0.3473 | 779.0 | 579.2 | |
| 0.00 | 4.16 | 0.00 | 2.15 | 16.13 | 270.54 | 12.24 | 314.14 | 0.2850 | 957.0 | 797.6 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 13.96 | 270.14 | 11.83 | 308.84 | 0.2566 | 923.0 | 742.2 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 16.23 | 270.26 | 11.96 | 315.03 | 0.2828 | 731.0 | 605.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
