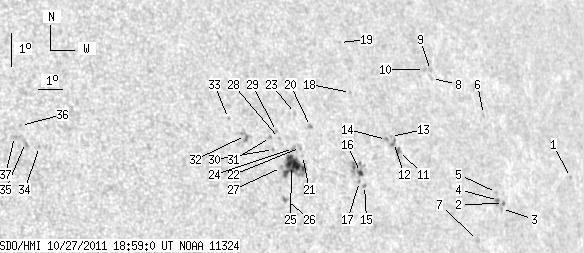

SDO HMI 2011-10-27 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.03 | 103.02 | 14.93 | 70.94 | 12.66 | 300.85 | 43.65 | 283.44 | 0.6927 | 184.5 | 60.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.03 | 11.37 | 311.79 | 54.59 | 280.53 | 0.8149 | -606.0 | -511.4 | |
| 0.00 | 1.21 | 0.00 | 0.95 | 10.82 | 308.26 | 51.06 | 280.02 | 0.7781 | -647.0 | -560.4 | |
| 0.00 | 1.39 | 0.00 | 1.09 | 10.68 | 308.13 | 50.93 | 279.84 | 0.7766 | -601.0 | -480.1 | |
| 1.13 | 3.04 | 0.88 | 2.37 | 10.93 | 308.04 | 50.84 | 280.17 | 0.7758 | -691.9 | -616.4 | |
| 0.00 | 1.47 | 0.00 | 1.15 | 11.17 | 308.01 | 50.81 | 280.48 | 0.7755 | -678.0 | -473.1 | |
| 0.00 | 0.87 | 0.00 | 0.68 | 13.53 | 308.01 | 50.81 | 283.53 | 0.7774 | -640.0 | -499.9 | |
| 0.00 | 2.34 | 0.00 | 1.78 | 9.80 | 306.80 | 49.60 | 278.76 | 0.7616 | -345.0 | -315.7 | |
| 0.00 | 1.39 | 0.00 | 1.05 | 14.76 | 305.90 | 48.70 | 285.39 | 0.7558 | -320.0 | -371.4 | |
| 0.00 | 1.65 | 0.00 | 1.24 | 15.00 | 305.92 | 48.72 | 285.71 | 0.7564 | -581.0 | -490.5 | |
| 0.00 | 1.21 | 0.00 | 0.91 | 15.05 | 305.66 | 48.46 | 285.81 | 0.7535 | -693.0 | -540.1 | |
| 0.00 | 3.56 | 0.00 | 2.57 | 12.67 | 303.82 | 46.62 | 282.87 | 0.7298 | -836.0 | -699.3 | |
| 0.00 | 3.04 | 0.00 | 2.19 | 12.95 | 303.67 | 46.47 | 283.27 | 0.7283 | -855.0 | -704.1 | |
| 0.00 | 1.13 | 0.00 | 0.81 | 13.14 | 303.58 | 46.38 | 283.54 | 0.7275 | -595.0 | -598.4 | |
| 0.00 | 1.47 | 0.00 | 1.06 | 13.06 | 303.38 | 46.18 | 283.46 | 0.7251 | -691.0 | -710.1 | |
| 0.00 | 1.39 | 0.00 | 0.97 | 11.74 | 302.13 | 44.92 | 281.79 | 0.7086 | 546.0 | 462.8 | |
| 2.34 | 12.49 | 1.64 | 8.72 | 12.14 | 302.04 | 44.84 | 282.36 | 0.7080 | 523.7 | 430.5 | |
| 0.00 | 1.30 | 0.00 | 0.91 | 11.88 | 301.94 | 44.74 | 282.00 | 0.7065 | 620.0 | 460.0 | |
| 0.00 | 1.13 | 0.00 | 0.79 | 14.56 | 302.18 | 44.98 | 285.73 | 0.7131 | 454.0 | 327.2 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 16.09 | 302.12 | 44.92 | 287.87 | 0.7151 | -458.0 | -379.6 | |
| 0.00 | 1.56 | 0.00 | 1.06 | 13.64 | 300.24 | 43.04 | 284.78 | 0.6883 | 773.0 | 640.4 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 12.79 | 299.72 | 42.52 | 283.63 | 0.6805 | 432.0 | 368.8 | |
| 0.00 | 2.25 | 0.00 | 1.52 | 13.03 | 299.69 | 42.49 | 284.00 | 0.6805 | 427.0 | 436.0 | |
| 0.00 | 1.47 | 0.00 | 1.00 | 14.06 | 299.71 | 42.51 | 285.50 | 0.6825 | 625.0 | 512.1 | |
| 0.00 | 1.73 | 0.00 | 1.16 | 13.02 | 299.39 | 42.19 | 284.03 | 0.6768 | 758.0 | 621.7 | |
| 18.56 | 30.27 | 12.41 | 20.26 | 12.51 | 299.21 | 42.01 | 283.32 | 0.6737 | 809.0 | 398.6 | |
| 0.00 | 2.86 | 0.00 | 1.90 | 11.51 | 298.77 | 41.57 | 281.90 | 0.6668 | 867.0 | 681.5 | |
| 0.00 | 1.56 | 0.00 | 1.04 | 12.48 | 298.79 | 41.59 | 283.33 | 0.6684 | 824.0 | 755.0 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 13.35 | 298.89 | 41.68 | 284.61 | 0.6710 | 683.0 | 541.9 | |
| 0.00 | 1.82 | 0.00 | 1.21 | 13.56 | 298.81 | 41.61 | 284.95 | 0.6704 | 626.0 | 523.5 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 13.03 | 298.57 | 41.37 | 284.20 | 0.6666 | 772.0 | 584.5 | |
| 0.00 | 1.65 | 0.00 | 1.09 | 13.40 | 298.53 | 41.33 | 284.76 | 0.6666 | 771.0 | 637.2 | |
| 0.00 | 4.08 | 0.00 | 2.66 | 13.51 | 297.54 | 40.33 | 285.14 | 0.6543 | 470.0 | 626.4 | |
| 0.00 | 1.13 | 0.00 | 0.73 | 14.06 | 296.97 | 39.76 | 286.10 | 0.6481 | 520.0 | 450.9 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 13.56 | 289.68 | 32.48 | 287.49 | 0.5494 | -728.0 | -570.7 | |
| 0.00 | 3.64 | 0.00 | 2.15 | 13.71 | 289.19 | 31.99 | 287.93 | 0.5431 | -837.0 | -616.7 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 14.23 | 289.09 | 31.89 | 288.90 | 0.5434 | -716.0 | -597.9 | |
| 0.00 | 1.99 | 0.00 | 1.17 | 13.90 | 288.83 | 31.62 | 288.43 | 0.5386 | -601.0 | -541.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
