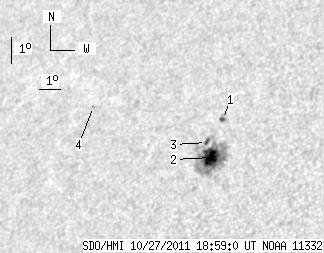

SDO HMI 2011-10-27 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.29 | 87.94 | 15.79 | 62.30 | 31.35 | 217.52 | -39.68 | 49.66 | 0.7176 | -845.4 | -370.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 2.78 | 1.61 | 1.99 | 32.52 | 217.56 | -39.65 | 48.21 | 0.7239 | -740.3 | -434.5 | |
| 17.87 | 83.95 | 12.63 | 59.35 | 31.24 | 217.67 | -39.53 | 49.72 | 0.7156 | -1030.7 | -388.5 | |
| 2.17 | -2.00 | 1.55 | -2.00 | 31.73 | 217.24 | -39.96 | 49.36 | 0.7223 | -416.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.96 | 32.63 | 211.25 | -45.95 | 51.13 | 0.7797 | 660.0 | 532.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
