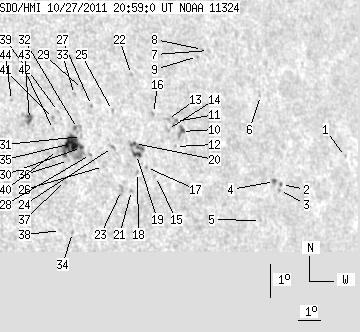

SDO HMI 2011-10-27 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.89 | 116.21 | 16.00 | 81.83 | 12.51 | 301.24 | 45.14 | 282.88 | 0.7114 | 240.0 | 132.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.76 | 11.41 | 311.82 | 55.73 | 280.53 | 0.8261 | -561.0 | -491.8 | |
| 1.04 | 1.30 | 0.84 | 1.05 | 10.80 | 308.33 | 52.24 | 279.94 | 0.7906 | -437.0 | -472.3 | |
| 0.00 | 1.30 | 0.00 | 1.04 | 10.63 | 308.19 | 52.10 | 279.72 | 0.7891 | -450.0 | -393.3 | |
| 1.30 | 2.34 | 1.04 | 1.87 | 10.91 | 308.01 | 51.92 | 280.09 | 0.7873 | -691.0 | -564.8 | |
| 0.00 | 1.04 | 0.00 | 0.82 | 9.80 | 307.07 | 50.98 | 278.71 | 0.7768 | -586.0 | -511.3 | |
| 0.00 | 0.95 | 0.00 | 0.77 | 13.52 | 308.04 | 51.94 | 283.40 | 0.7893 | -569.0 | -481.9 | |
| 0.00 | 1.65 | 0.00 | 1.27 | 15.02 | 305.97 | 49.87 | 285.57 | 0.7689 | -627.0 | -502.3 | |
| 0.00 | 1.39 | 0.00 | 1.06 | 15.07 | 305.69 | 49.60 | 285.67 | 0.7660 | -631.0 | -452.9 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 14.87 | 305.39 | 49.30 | 285.46 | 0.7625 | -597.0 | -526.2 | |
| 0.00 | 5.12 | 0.00 | 3.78 | 12.68 | 304.03 | 47.94 | 282.73 | 0.7449 | -775.0 | -606.8 | |
| 0.00 | 3.38 | 0.00 | 2.49 | 12.99 | 303.84 | 47.74 | 283.17 | 0.7430 | -771.0 | -638.2 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 12.25 | 303.65 | 47.56 | 282.19 | 0.7401 | -499.0 | -453.8 | |
| 0.00 | 2.08 | 0.00 | 1.53 | 13.08 | 303.49 | 47.40 | 283.32 | 0.7392 | -608.0 | -686.3 | |
| 0.00 | 2.17 | 0.00 | 1.59 | 12.78 | 303.42 | 47.32 | 282.93 | 0.7380 | -772.0 | -563.4 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 11.41 | 302.57 | 46.47 | 281.15 | 0.7267 | 603.0 | 549.0 | |
| 0.00 | 1.04 | 0.00 | 0.75 | 13.29 | 302.92 | 46.82 | 283.69 | 0.7328 | -713.0 | -598.7 | |
| 0.00 | 1.13 | 0.00 | 0.81 | 11.70 | 302.23 | 46.14 | 281.59 | 0.7231 | 589.0 | 437.6 | |
| 0.00 | 1.56 | 0.00 | 1.11 | 11.57 | 301.81 | 45.71 | 281.46 | 0.7179 | -585.0 | -476.2 | |
| 3.38 | 13.96 | 2.40 | 9.93 | 12.11 | 301.88 | 45.79 | 282.20 | 0.7193 | 623.4 | 357.7 | |
| 0.87 | -19.00 | 0.62 | -19.00 | 12.45 | 301.87 | 45.77 | 282.67 | 0.7196 | 513.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.85 | 11.05 | 301.44 | 45.35 | 280.77 | 0.7130 | 531.0 | 435.0 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 14.52 | 302.25 | 46.16 | 285.47 | 0.7268 | 461.0 | 389.0 | |
| 0.00 | 4.16 | 0.00 | 2.91 | 11.08 | 301.02 | 44.92 | 280.85 | 0.7079 | 172.0 | 106.4 | |
| 0.00 | 2.26 | 0.00 | 1.58 | 12.38 | 300.90 | 44.80 | 282.71 | 0.7079 | 278.0 | 310.8 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 13.49 | 301.15 | 45.06 | 284.22 | 0.7124 | 337.0 | 274.8 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 11.84 | 300.40 | 44.30 | 282.00 | 0.7012 | -237.0 | -202.5 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 13.69 | 300.29 | 44.20 | 284.65 | 0.7024 | 656.0 | 566.1 | |
| 0.00 | 1.56 | 0.00 | 1.07 | 12.23 | 299.92 | 43.83 | 282.62 | 0.6959 | 478.0 | 285.2 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 14.19 | 300.03 | 43.93 | 285.41 | 0.7001 | 506.0 | 399.0 | |
| 1.21 | 35.04 | 0.83 | 23.84 | 12.46 | 299.59 | 43.50 | 283.00 | 0.6921 | 475.4 | 398.5 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 12.79 | 299.66 | 43.57 | 283.46 | 0.6934 | 483.0 | 359.5 | |
| 0.00 | 5.03 | 0.00 | 3.44 | 13.04 | 299.55 | 43.45 | 283.84 | 0.6924 | 471.0 | 512.7 | |
| 0.00 | 1.39 | 0.00 | 0.95 | 14.06 | 299.66 | 43.56 | 285.29 | 0.6953 | 630.0 | 551.3 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 9.95 | 298.75 | 42.65 | 279.44 | 0.6789 | 632.0 | 499.7 | |
| 15.09 | -30.00 | 10.27 | -30.00 | 12.60 | 299.20 | 43.11 | 283.27 | 0.6875 | 777.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 12.10 | 298.97 | 42.88 | 282.58 | 0.6840 | 407.0 | 336.6 | |
| 0.00 | 2.43 | 0.00 | 1.64 | 11.51 | 298.73 | 42.64 | 281.75 | 0.6803 | 812.0 | 583.2 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 10.03 | 298.27 | 42.17 | 279.62 | 0.6729 | 679.0 | 526.7 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 13.59 | 298.87 | 42.78 | 284.76 | 0.6850 | 666.0 | 617.6 | |
| 0.00 | 1.65 | 0.00 | 1.11 | 12.42 | 298.58 | 42.48 | 283.11 | 0.6796 | 626.0 | 438.8 | |
| 0.00 | 1.65 | 0.00 | 1.11 | 13.39 | 298.62 | 42.52 | 284.52 | 0.6815 | 710.0 | 601.2 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 13.06 | 298.55 | 42.45 | 284.05 | 0.6801 | 664.0 | 605.6 | |
| 0.00 | 5.29 | 0.00 | 3.52 | 13.42 | 297.63 | 41.53 | 284.74 | 0.6693 | 860.0 | 684.2 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 14.02 | 297.03 | 40.93 | 285.78 | 0.6628 | 582.0 | 457.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
