SDO HMI 2011-10-27 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 272.85 | 1322.64 | 136.58 | 661.42 | 7.34 | 251.42 | -4.67 | 254.34 | 0.0968 | -303.2 | -145.1 | |
|
previous
or next observation for the same group /

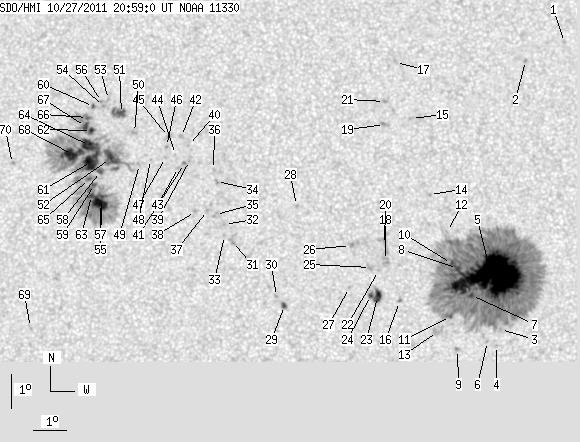

back to the solar disc SDO HMI 2011-10-27 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.18 | 257.81 | 1.71 | 348.68 | 0.1487 | -791.0 | -530.7 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 12.64 | 256.61 | 0.52 | 356.29 | 0.1367 | -915.0 | -684.4 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 4.61 | 255.86 | -0.24 | 133.57 | 0.0058 | -37.0 | -66.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 4.13 | 255.74 | -0.36 | 152.99 | 0.0139 | 900.0 | 665.9 | |
| 155.77 | 821.79 | 77.19 | 407.28 | 6.22 | 255.58 | -0.51 | 20.23 | 0.0258 | -1593.4 | -463.6 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 4.25 | 255.47 | -0.63 | 133.04 | 0.0150 | 646.0 | 550.8 | |
| 2.69 | -5.00 | 1.33 | -5.00 | 5.62 | 254.99 | -1.11 | 54.62 | 0.0237 | -854.2 | 999999 | |
| 2.86 | -5.00 | 1.42 | -5.00 | 6.43 | 254.57 | -1.53 | 43.76 | 0.0385 | -982.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 4.01 | 254.57 | -1.52 | 118.45 | 0.0303 | 1040.0 | 757.2 | |
| 1.39 | -5.00 | 0.69 | -5.00 | 6.57 | 254.39 | -1.71 | 44.38 | 0.0426 | -946.6 | 999999 | |
| 1.39 | -5.00 | 0.69 | -5.00 | 5.00 | 254.36 | -1.74 | 84.76 | 0.0304 | -777.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 7.53 | 254.26 | -1.83 | 34.06 | 0.0569 | -191.0 | -145.5 | |
| 0.00 | 7.03 | 0.00 | 3.48 | 4.55 | 253.97 | -2.12 | 97.75 | 0.0374 | -168.0 | -75.7 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 8.63 | 253.71 | -2.38 | 31.84 | 0.0782 | 926.0 | 697.4 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 10.90 | 253.15 | -2.94 | 25.52 | 0.1176 | -784.0 | -664.8 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 5.44 | 252.83 | -3.26 | 79.44 | 0.0579 | -987.0 | -859.2 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.57 | 252.65 | -3.45 | 23.56 | 0.1477 | -405.0 | -416.8 | |
| 0.00 | 4.86 | 0.00 | 2.41 | 6.66 | 252.41 | -3.69 | 63.51 | 0.0718 | -621.0 | -808.2 | |
| 0.00 | 3.90 | 0.00 | 1.95 | 10.71 | 252.33 | -3.76 | 32.16 | 0.1217 | -1098.0 | -755.3 | |
| 0.00 | 7.98 | 0.00 | 3.96 | 7.13 | 252.37 | -3.72 | 58.07 | 0.0763 | -760.0 | -539.5 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 11.40 | 252.33 | -3.77 | 29.38 | 0.1320 | -955.0 | -736.2 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 6.36 | 252.20 | -3.90 | 68.47 | 0.0730 | -892.0 | -685.0 | |
| 6.16 | 11.71 | 3.06 | 5.81 | 5.58 | 252.17 | -3.92 | 79.06 | 0.0697 | -1122.0 | -900.2 | |
| 1.82 | -23.00 | 0.90 | -23.00 | 5.61 | 251.96 | -4.13 | 79.21 | 0.0734 | -908.7 | 999999 | |
| 0.00 | 3.47 | 0.00 | 1.72 | 6.44 | 251.96 | -4.14 | 68.52 | 0.0774 | -956.0 | -716.7 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 7.10 | 251.35 | -4.75 | 64.23 | 0.0916 | -761.0 | -744.3 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 5.84 | 251.33 | -4.77 | 77.82 | 0.0849 | -952.0 | -603.5 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.27 | 249.70 | -6.39 | 61.25 | 0.1263 | -845.0 | -768.2 | |
| 2.34 | 3.21 | 1.17 | 1.60 | 5.29 | 249.38 | -6.71 | 85.83 | 0.1173 | 1033.1 | 910.1 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 5.56 | 249.14 | -6.96 | 83.77 | 0.1219 | 964.0 | 728.8 | |
| 0.00 | 3.38 | 0.00 | 1.69 | 7.18 | 247.78 | -8.31 | 73.78 | 0.1501 | 923.0 | 777.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 7.68 | 247.53 | -8.57 | 71.09 | 0.1567 | 1025.0 | 868.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 7.36 | 247.54 | -8.56 | 73.10 | 0.1550 | 712.0 | 621.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 8.96 | 247.26 | -8.84 | 64.34 | 0.1691 | 1076.0 | 875.2 | |
| 0.00 | 2.52 | 0.00 | 1.26 | 7.98 | 247.25 | -8.85 | 69.89 | 0.1629 | 820.0 | 739.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.32 | 247.16 | -8.94 | 62.70 | 0.1733 | 836.0 | 725.6 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 8.10 | 247.00 | -9.09 | 69.71 | 0.1676 | 807.0 | 678.9 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 8.06 | 246.64 | -9.46 | 70.59 | 0.1733 | 910.0 | 616.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.58 | 246.42 | -9.68 | 63.18 | 0.1866 | 895.0 | 733.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 10.03 | 246.37 | -9.72 | 61.15 | 0.1907 | 858.0 | 589.3 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 9.49 | 246.27 | -9.83 | 63.96 | 0.1883 | 1287.0 | 994.2 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 10.29 | 246.15 | -9.95 | 60.46 | 0.1962 | 806.0 | 655.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.37 | 246.09 | -10.01 | 64.94 | 0.1902 | 788.0 | 643.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 9.75 | 245.98 | -10.11 | 63.33 | 0.1946 | 733.0 | 524.4 | |
| 0.00 | 3.56 | 0.00 | 1.80 | 10.29 | 245.75 | -10.35 | 61.41 | 0.2022 | 906.0 | 679.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 9.99 | 245.70 | -10.40 | 62.86 | 0.2006 | 1070.0 | 795.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 9.66 | 245.68 | -10.42 | 64.41 | 0.1986 | 866.0 | 671.7 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 9.59 | 245.22 | -10.88 | 65.61 | 0.2052 | 714.0 | 485.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 9.44 | 244.89 | -11.21 | 66.91 | 0.2094 | 614.0 | 592.5 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 10.39 | 244.70 | -11.40 | 63.16 | 0.2188 | 956.0 | 741.2 | |
| 5.03 | 11.62 | 2.56 | 5.92 | 10.95 | 244.27 | -11.82 | 61.71 | 0.2295 | 1057.1 | 928.2 | |
| 14.40 | 379.97 | 7.32 | 193.54 | 9.60 | 243.99 | -12.11 | 67.69 | 0.2246 | 1155.2 | 468.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 11.36 | 243.85 | -12.24 | 60.94 | 0.2389 | 466.0 | 434.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 11.15 | 243.71 | -12.39 | 62.01 | 0.2395 | 941.0 | 823.5 | |
| 0.52 | -52.00 | 0.26 | -52.00 | 8.40 | 243.75 | -12.35 | 73.15 | 0.2220 | 1452.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 11.30 | 243.64 | -12.46 | 61.58 | 0.2416 | 865.0 | 759.1 | |
| 10.93 | -52.00 | 5.55 | -52.00 | 8.25 | 243.72 | -12.37 | 73.83 | 0.2218 | 1385.9 | 999999 | |
| 2.95 | -52.00 | 1.50 | -52.00 | 9.21 | 243.69 | -12.40 | 69.78 | 0.2270 | 1098.5 | 999999 | |
| 1.73 | -52.00 | 0.88 | -52.00 | 8.82 | 243.52 | -12.58 | 71.65 | 0.2277 | 1209.2 | 999999 | |
| 1.47 | 1.82 | 0.75 | 0.93 | 11.15 | 243.40 | -12.70 | 62.58 | 0.2441 | 737.4 | 765.8 | |
| 19.69 | -52.00 | 10.03 | -52.00 | 9.50 | 243.40 | -12.69 | 68.97 | 0.2332 | 1299.8 | 999999 | |
| 1.82 | -52.00 | 0.93 | -52.00 | 10.43 | 243.37 | -12.73 | 65.36 | 0.2395 | 1171.7 | 999999 | |
| 1.56 | -52.00 | 0.79 | -52.00 | 8.49 | 243.44 | -12.66 | 73.15 | 0.2275 | 1098.2 | 999999 | |
| 14.31 | -52.00 | 7.29 | -52.00 | 9.98 | 243.32 | -12.77 | 67.18 | 0.2373 | 1136.2 | 999999 | |
| 1.39 | -52.00 | 0.71 | -52.00 | 8.99 | 243.36 | -12.74 | 71.12 | 0.2312 | 1013.9 | 999999 | |
| 1.30 | -52.00 | 0.66 | -52.00 | 10.81 | 243.23 | -12.87 | 64.12 | 0.2443 | 899.0 | 999999 | |
| 3.38 | -52.00 | 1.73 | -52.00 | 10.54 | 243.17 | -12.92 | 65.22 | 0.2432 | 973.8 | 999999 | |
| 17.95 | -52.00 | 9.17 | -52.00 | 9.70 | 242.81 | -13.29 | 69.01 | 0.2438 | 1040.9 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 4.52 | 241.67 | -14.43 | 90.68 | 0.2496 | 922.0 | 648.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 9.39 | 240.95 | -15.15 | 72.30 | 0.2718 | 857.0 | 760.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
