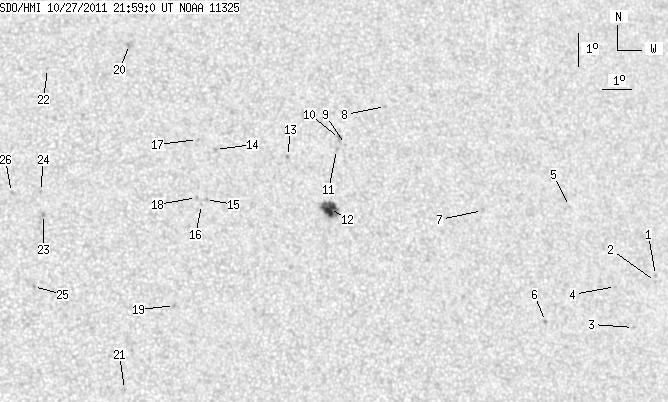

SDO HMI 2011-10-27 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.66 | 57.55 | 8.12 | 31.98 | 16.45 | 279.63 | 24.09 | 298.96 | 0.4478 | -182.9 | -84.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.75 | 13.67 | 291.34 | 35.80 | 286.57 | 0.5952 | -603.0 | -503.0 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 13.49 | 291.31 | 35.77 | 286.28 | 0.5944 | -713.0 | -593.6 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 12.16 | 290.27 | 34.73 | 284.31 | 0.5769 | -668.0 | -478.8 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 13.41 | 289.80 | 34.26 | 286.62 | 0.5736 | -598.0 | -485.2 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 15.90 | 288.53 | 32.99 | 291.38 | 0.5645 | -619.0 | -488.3 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 12.48 | 287.11 | 31.56 | 285.86 | 0.5334 | -725.0 | -583.5 | |
| 0.00 | 2.00 | 0.00 | 1.16 | 15.91 | 285.37 | 29.82 | 292.98 | 0.5216 | -605.0 | -493.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 19.21 | 282.48 | 26.94 | 300.99 | 0.5011 | -784.0 | -567.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 18.10 | 280.90 | 25.35 | 300.23 | 0.4730 | -618.0 | -490.5 | |
| 0.00 | 3.56 | 0.00 | 2.00 | 18.29 | 280.72 | 25.17 | 300.75 | 0.4719 | -901.0 | -740.9 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 17.96 | 280.56 | 25.02 | 300.24 | 0.4676 | -809.0 | -731.6 | |
| 14.66 | 22.03 | 8.12 | 12.20 | 16.17 | 280.07 | 24.53 | 297.08 | 0.4497 | -959.2 | -618.4 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 17.80 | 278.86 | 23.31 | 301.50 | 0.4438 | -848.0 | -759.6 | |
| 0.00 | 1.65 | 0.00 | 0.90 | 18.09 | 276.46 | 20.92 | 304.65 | 0.4143 | 777.0 | 555.2 | |
| 0.00 | 1.73 | 0.00 | 0.93 | 16.58 | 275.95 | 20.41 | 301.97 | 0.3956 | 666.0 | 577.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 16.43 | 275.80 | 20.26 | 301.80 | 0.3924 | 801.0 | 678.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 18.41 | 275.90 | 20.35 | 305.99 | 0.4096 | 690.0 | 629.8 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 16.64 | 275.66 | 20.11 | 302.46 | 0.3922 | 698.0 | 558.5 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 13.40 | 274.63 | 19.08 | 295.75 | 0.3547 | 864.0 | 707.8 | |
| 0.00 | 3.90 | 0.00 | 2.12 | 21.40 | 273.99 | 18.45 | 314.45 | 0.4146 | 794.0 | 678.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 10.92 | 272.85 | 17.30 | 290.60 | 0.3134 | 805.0 | 600.6 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 20.72 | 271.18 | 15.63 | 317.66 | 0.3758 | 805.0 | 587.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 16.25 | 270.63 | 15.09 | 308.77 | 0.3220 | 918.0 | 794.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 16.95 | 270.59 | 15.05 | 310.57 | 0.3284 | 781.0 | 603.9 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 14.08 | 270.16 | 14.61 | 303.71 | 0.2955 | 916.0 | 713.9 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 16.94 | 269.66 | 14.12 | 312.28 | 0.3167 | 707.0 | 620.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
