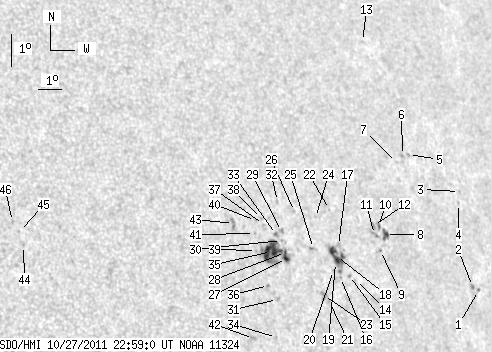

SDO HMI 2011-10-27 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.08 | 127.86 | 24.27 | 91.33 | 12.54 | 300.94 | 45.95 | 282.82 | 0.7210 | 210.5 | 124.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 1.07 | 10.79 | 308.29 | 53.30 | 279.87 | 0.8016 | -432.0 | -426.0 | |
| 0.00 | 2.00 | 0.00 | 1.64 | 10.92 | 308.02 | 53.03 | 280.06 | 0.7989 | -756.0 | -628.3 | |
| 0.00 | 0.87 | 0.00 | 0.72 | 13.79 | 308.20 | 53.20 | 283.63 | 0.8025 | -339.0 | -267.3 | |
| 0.00 | 0.95 | 0.00 | 0.78 | 13.44 | 308.03 | 53.04 | 283.20 | 0.8005 | -485.0 | -442.0 | |
| 0.00 | 1.21 | 0.00 | 0.96 | 15.06 | 306.05 | 51.06 | 285.47 | 0.7815 | -524.0 | -468.4 | |
| 0.00 | 1.65 | 0.00 | 1.29 | 15.05 | 305.75 | 50.76 | 285.49 | 0.7784 | -654.0 | -482.4 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 14.86 | 305.39 | 50.40 | 285.29 | 0.7744 | -514.0 | -563.7 | |
| 4.68 | 6.59 | 3.55 | 5.00 | 12.74 | 304.25 | 49.26 | 282.67 | 0.7597 | -586.0 | -452.1 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 12.28 | 303.89 | 48.90 | 282.10 | 0.7554 | -562.0 | -572.6 | |
| 0.00 | 2.95 | 0.00 | 2.23 | 13.03 | 304.00 | 49.00 | 283.08 | 0.7572 | -665.0 | -592.2 | |
| 0.00 | 3.99 | 0.00 | 3.00 | 12.77 | 303.74 | 48.75 | 282.77 | 0.7541 | -625.0 | -645.4 | |
| 0.00 | 2.34 | 0.00 | 1.76 | 13.04 | 303.77 | 48.77 | 283.12 | 0.7547 | -804.0 | -726.1 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 18.60 | 305.09 | 50.10 | 290.14 | 0.7767 | -466.0 | -407.5 | |
| 0.00 | 0.87 | 0.00 | 0.64 | 11.48 | 302.56 | 47.57 | 281.16 | 0.7396 | 423.0 | 354.4 | |
| 0.00 | 1.30 | 0.00 | 0.95 | 11.62 | 302.32 | 47.33 | 281.37 | 0.7369 | 583.0 | 520.9 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 11.58 | 301.91 | 46.91 | 281.36 | 0.7321 | -436.0 | -364.8 | |
| 0.00 | 2.86 | 0.00 | 2.08 | 12.54 | 302.04 | 47.05 | 282.65 | 0.7345 | -200.0 | -198.9 | |
| 10.67 | 19.08 | 7.74 | 13.83 | 12.22 | 301.87 | 46.88 | 282.23 | 0.7323 | 525.1 | 166.0 | |
| 0.43 | -18.00 | 0.31 | -18.00 | 12.05 | 301.79 | 46.79 | 282.00 | 0.7311 | -132.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.94 | 11.81 | 301.64 | 46.65 | 281.70 | 0.7292 | -268.0 | -222.7 | |
| 0.00 | 1.56 | 0.00 | 1.12 | 10.90 | 301.27 | 46.28 | 280.48 | 0.7241 | 592.0 | 440.8 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 13.64 | 301.91 | 46.92 | 284.16 | 0.7343 | 289.0 | 200.4 | |
| 0.00 | 4.51 | 0.00 | 3.22 | 11.09 | 301.05 | 46.06 | 280.77 | 0.7216 | -19.0 | 70.2 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 13.44 | 301.23 | 46.24 | 283.99 | 0.7262 | 387.0 | 311.4 | |
| 0.00 | 1.91 | 0.00 | 1.36 | 12.52 | 300.92 | 45.93 | 282.76 | 0.7215 | 589.0 | 462.3 | |
| 0.00 | 1.13 | 0.00 | 0.80 | 13.67 | 300.36 | 45.37 | 284.44 | 0.7164 | 682.0 | 538.4 | |
| 1.73 | 38.86 | 1.21 | 26.89 | 12.29 | 299.69 | 44.70 | 282.60 | 0.7066 | 479.1 | 477.4 | |
| 0.87 | -27.00 | 0.61 | -27.00 | 12.47 | 299.69 | 44.70 | 282.85 | 0.7067 | 241.3 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.70 | 13.11 | 299.66 | 44.67 | 283.76 | 0.7072 | 488.0 | 454.1 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 12.84 | 299.60 | 44.61 | 283.39 | 0.7061 | 390.0 | 424.0 | |
| 0.00 | 1.65 | 0.00 | 1.14 | 11.09 | 299.06 | 44.07 | 280.97 | 0.6976 | 501.0 | 427.4 | |
| 0.00 | 1.47 | 0.00 | 1.03 | 14.02 | 299.70 | 44.71 | 285.03 | 0.7091 | 558.0 | 469.4 | |
| 0.00 | 2.00 | 0.00 | 1.39 | 13.03 | 299.43 | 44.43 | 283.69 | 0.7043 | 664.0 | 556.9 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 9.96 | 298.82 | 43.83 | 279.37 | 0.6936 | 518.0 | 484.8 | |
| 15.70 | -27.00 | 10.85 | -27.00 | 12.54 | 299.10 | 44.11 | 283.03 | 0.6997 | 818.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 11.53 | 298.77 | 43.77 | 281.63 | 0.6944 | 734.0 | 653.1 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 13.36 | 298.94 | 43.95 | 284.23 | 0.6990 | 705.0 | 528.3 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 13.55 | 298.90 | 43.91 | 284.50 | 0.6988 | 595.0 | 505.3 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 12.60 | 298.48 | 43.49 | 283.22 | 0.6922 | 743.0 | 532.3 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 13.50 | 298.64 | 43.64 | 284.48 | 0.6955 | 459.0 | 485.1 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 13.11 | 298.51 | 43.51 | 283.95 | 0.6933 | 646.0 | 589.1 | |
| 0.00 | 3.04 | 0.00 | 2.05 | 9.98 | 297.86 | 42.87 | 279.49 | 0.6816 | 748.0 | 579.2 | |
| 0.00 | 4.51 | 0.00 | 3.05 | 13.46 | 297.70 | 42.71 | 284.60 | 0.6840 | 670.0 | 655.3 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 13.22 | 289.40 | 34.41 | 286.24 | 0.5752 | -537.0 | -466.9 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 13.65 | 289.32 | 34.33 | 287.00 | 0.5753 | -735.0 | -565.0 | |
| 0.00 | 1.39 | 0.00 | 0.84 | 13.96 | 289.12 | 34.12 | 287.61 | 0.5734 | -618.0 | -557.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
