SDO HMI 2011-10-27 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.87 | 78.24 | 13.68 | 53.84 | 31.34 | 217.49 | -37.50 | 48.43 | 0.6973 | -843.9 | -466.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

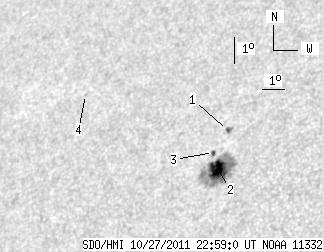

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.56 | 3.64 | 1.09 | 2.54 | 32.52 | 217.42 | -37.57 | 47.01 | 0.7052 | -630.3 | -562.3 | |
| 16.66 | 71.31 | 11.45 | 48.95 | 31.24 | 217.59 | -37.40 | 48.50 | 0.6958 | -1024.0 | -477.3 | |
| 1.65 | 2.60 | 1.14 | 1.81 | 31.76 | 217.17 | -37.82 | 48.10 | 0.7029 | -444.6 | -372.3 | |
| 0.00 | 0.69 | 0.00 | 0.54 | 33.37 | 210.21 | -44.78 | 49.74 | 0.7732 | 531.0 | 433.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
