SDO HMI 2011-10-27 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 271.89 | 1326.11 | 135.73 | 661.80 | 7.25 | 251.43 | -3.01 | 225.96 | 0.0897 | -299.1 | -132.0 | |
|
previous
or next observation for the same group /

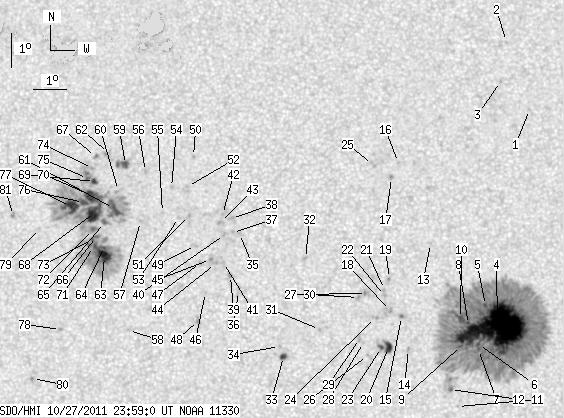

back to the solar disc SDO HMI 2011-10-27 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.56 | 12.69 | 256.63 | 2.19 | 344.74 | 0.1426 | -796.0 | -540.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 14.74 | 255.95 | 1.51 | 351.61 | 0.1749 | -676.0 | -535.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 13.54 | 255.75 | 1.31 | 351.63 | 0.1538 | -796.0 | -604.9 | |
| 158.94 | 831.32 | 78.77 | 412.02 | 6.18 | 255.63 | 1.19 | 318.74 | 0.0316 | -1561.0 | -454.8 | |
| 1.21 | -4.00 | 0.60 | -4.00 | 6.84 | 255.28 | 0.84 | 337.55 | 0.0381 | -974.6 | 999999 | |
| 1.13 | -4.00 | 0.56 | -4.00 | 5.67 | 255.07 | 0.62 | 323.73 | 0.0184 | -1028.2 | 999999 | |
| 1.30 | -4.00 | 0.64 | -4.00 | 5.53 | 255.07 | 0.62 | 318.32 | 0.0164 | -1098.0 | 999999 | |
| 0.52 | -4.00 | 0.26 | -4.00 | 6.27 | 254.77 | 0.33 | 347.35 | 0.0259 | -1095.2 | 999999 | |
| 1.47 | -4.00 | 0.73 | -4.00 | 5.65 | 254.56 | 0.12 | 351.96 | 0.0145 | -1037.3 | 999999 | |
| 4.42 | -4.00 | 2.19 | -4.00 | 6.45 | 254.53 | 0.09 | 356.98 | 0.0285 | -990.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 3.83 | 254.44 | -0.00 | 179.79 | 0.0175 | 829.0 | 539.9 | |
| 0.35 | -4.00 | 0.17 | -4.00 | 4.34 | 254.23 | -0.21 | 156.71 | 0.0094 | 711.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 8.68 | 253.62 | -0.82 | 11.83 | 0.0691 | 759.0 | 571.2 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 5.52 | 252.97 | -1.47 | 64.48 | 0.0284 | -1040.0 | -809.4 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 6.51 | 252.76 | -1.68 | 44.83 | 0.0416 | -1262.0 | -1097.8 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 11.10 | 252.65 | -1.79 | 15.69 | 0.1141 | -932.0 | -703.0 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 10.65 | 252.44 | -2.00 | 18.69 | 0.1077 | -1151.0 | -948.4 | |
| 0.00 | 2.26 | 0.00 | 1.12 | 6.68 | 252.43 | -2.01 | 47.07 | 0.0479 | -1057.0 | -875.2 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 7.64 | 252.39 | -2.05 | 35.80 | 0.0608 | 882.0 | 693.2 | |
| 6.16 | 12.67 | 3.05 | 6.28 | 5.58 | 252.37 | -2.07 | 69.79 | 0.0385 | -1095.7 | -674.7 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 7.31 | 252.25 | -2.20 | 41.23 | 0.0579 | -701.0 | -584.6 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 7.13 | 252.25 | -2.19 | 43.35 | 0.0556 | -860.0 | -664.2 | |
| 1.47 | -20.00 | 0.73 | -20.00 | 5.58 | 252.16 | -2.28 | 71.51 | 0.0419 | -976.4 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.16 | 6.47 | 251.98 | -2.46 | 55.97 | 0.0517 | -808.0 | -682.0 | |
| 0.00 | 3.04 | 0.00 | 1.51 | 11.04 | 251.86 | -2.58 | 22.21 | 0.1176 | -779.0 | -632.8 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 5.34 | 251.74 | -2.70 | 79.04 | 0.0479 | -760.0 | -600.0 | |
| 0.00 | 3.82 | 0.00 | 1.89 | 7.19 | 251.71 | -2.74 | 48.91 | 0.0631 | -972.0 | -730.1 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 5.73 | 251.62 | -2.82 | 72.07 | 0.0516 | -852.0 | -503.1 | |
| 0.00 | 3.04 | 0.00 | 1.51 | 5.85 | 251.50 | -2.94 | 70.65 | 0.0543 | -906.0 | -617.5 | |
| 0.00 | 2.60 | 0.00 | 1.29 | 7.07 | 251.47 | -2.98 | 52.72 | 0.0650 | -981.0 | -712.1 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 6.11 | 250.30 | -4.14 | 72.54 | 0.0756 | 805.0 | 557.3 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 8.22 | 249.86 | -4.58 | 53.04 | 0.0994 | -852.0 | -708.1 | |
| 3.04 | 3.56 | 1.51 | 1.77 | 5.30 | 249.23 | -5.21 | 84.60 | 0.0913 | 1082.2 | 890.3 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 5.59 | 249.10 | -5.34 | 81.55 | 0.0940 | 886.0 | 774.4 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.95 | 247.85 | -6.59 | 57.41 | 0.1352 | 902.0 | 650.5 | |
| 0.00 | 3.04 | 0.00 | 1.52 | 7.22 | 247.85 | -6.59 | 69.61 | 0.1220 | 827.0 | 704.7 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 8.98 | 247.64 | -6.80 | 58.04 | 0.1385 | 847.0 | 735.1 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 9.40 | 247.60 | -6.84 | 55.67 | 0.1430 | 871.0 | 640.4 | |
| 0.00 | 2.86 | 0.00 | 1.43 | 7.70 | 247.60 | -6.84 | 66.78 | 0.1290 | 1036.0 | 889.9 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 8.92 | 247.40 | -7.04 | 59.29 | 0.1416 | 910.0 | 768.8 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 8.08 | 247.38 | -7.06 | 64.74 | 0.1351 | 927.0 | 688.3 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 9.51 | 247.32 | -7.12 | 56.02 | 0.1480 | 1034.0 | 806.8 | |
| 0.00 | 2.95 | 0.00 | 1.48 | 9.27 | 247.27 | -7.17 | 57.61 | 0.1466 | 892.0 | 749.1 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 8.05 | 247.14 | -7.30 | 65.67 | 0.1387 | 684.0 | 519.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 8.17 | 246.99 | -7.45 | 65.34 | 0.1420 | 916.0 | 826.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 7.18 | 246.85 | -7.59 | 72.30 | 0.1382 | 940.0 | 738.4 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 8.07 | 246.68 | -7.76 | 66.75 | 0.1461 | 917.0 | 687.6 | |
| 0.00 | 2.69 | 0.00 | 1.34 | 6.35 | 246.65 | -7.79 | 78.56 | 0.1380 | 963.0 | 816.7 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 8.58 | 246.52 | -7.92 | 64.07 | 0.1522 | 824.0 | 642.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 11.24 | 246.40 | -8.04 | 50.67 | 0.1783 | 833.0 | 572.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 9.47 | 246.32 | -8.12 | 59.58 | 0.1623 | 1193.0 | 1056.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 10.34 | 246.24 | -8.20 | 55.38 | 0.1714 | 800.0 | 694.6 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 9.41 | 245.99 | -8.45 | 60.89 | 0.1668 | 722.0 | 584.2 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 10.30 | 245.75 | -8.69 | 57.05 | 0.1780 | 901.0 | 681.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 9.55 | 245.49 | -8.95 | 61.47 | 0.1754 | 827.0 | 606.4 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 10.77 | 244.94 | -9.50 | 57.16 | 0.1939 | 954.0 | 781.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.28 | 244.83 | -9.61 | 64.47 | 0.1835 | 911.0 | 711.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 6.02 | 244.54 | -9.90 | 82.65 | 0.1732 | 797.0 | 504.7 | |
| 4.60 | 9.02 | 2.33 | 4.57 | 10.97 | 244.31 | -10.13 | 57.89 | 0.2047 | 1086.2 | 853.0 | |
| 0.00 | 3.04 | 0.00 | 1.54 | 10.19 | 244.13 | -10.32 | 61.72 | 0.2010 | 557.0 | 377.1 | |
| 12.67 | 250.99 | 6.40 | 127.21 | 9.65 | 243.99 | -10.45 | 64.46 | 0.1991 | 1156.2 | 471.3 | |
| 0.00 | 4.51 | 0.00 | 2.29 | 11.29 | 243.78 | -10.66 | 57.85 | 0.2153 | 558.0 | 619.1 | |
| 10.76 | 124.58 | 5.43 | 62.93 | 8.21 | 243.76 | -10.69 | 71.75 | 0.1941 | 1374.7 | 488.0 | |
| 0.69 | -63.00 | 0.35 | -63.00 | 8.51 | 243.75 | -10.69 | 70.30 | 0.1958 | 1129.1 | 999999 | |
| 2.26 | -61.00 | 1.14 | -61.00 | 9.23 | 243.73 | -10.71 | 66.92 | 0.2004 | 1009.0 | 999999 | |
| 1.56 | -63.00 | 0.79 | -63.00 | 8.81 | 243.49 | -10.95 | 69.30 | 0.2015 | 1156.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 11.20 | 243.38 | -11.06 | 59.13 | 0.2203 | 862.0 | 701.3 | |
| 18.31 | -61.00 | 9.27 | -61.00 | 9.52 | 243.41 | -11.03 | 66.16 | 0.2073 | 1294.3 | 999999 | |
| 2.95 | -61.00 | 1.50 | -61.00 | 10.45 | 243.38 | -11.06 | 62.20 | 0.2143 | 1072.7 | 999999 | |
| 15.70 | -61.00 | 7.96 | -61.00 | 10.00 | 243.36 | -11.08 | 64.15 | 0.2112 | 1150.7 | 999999 | |
| 0.87 | -63.00 | 0.44 | -63.00 | 8.51 | 243.41 | -11.03 | 70.85 | 0.2012 | 1078.0 | 999999 | |
| 1.82 | -61.00 | 0.92 | -61.00 | 9.01 | 243.39 | -11.05 | 68.50 | 0.2043 | 1018.1 | 999999 | |
| 1.30 | -63.00 | 0.66 | -63.00 | 8.72 | 243.37 | -11.07 | 69.92 | 0.2030 | 961.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 10.84 | 243.30 | -11.14 | 60.75 | 0.2185 | 1027.0 | 691.8 | |
| 0.95 | -61.00 | 0.48 | -61.00 | 10.54 | 243.16 | -11.28 | 62.28 | 0.2183 | 966.9 | 999999 | |
| 4.51 | -61.00 | 2.29 | -61.00 | 9.82 | 243.06 | -11.38 | 65.51 | 0.2146 | 996.7 | 999999 | |
| 12.93 | -61.00 | 6.56 | -61.00 | 9.69 | 242.66 | -11.78 | 66.73 | 0.2200 | 1064.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 6.02 | 242.46 | -11.98 | 83.76 | 0.2086 | 947.0 | 780.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 9.02 | 241.73 | -12.71 | 70.94 | 0.2310 | -928.0 | -615.6 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 4.54 | 241.64 | -12.80 | 90.75 | 0.2220 | 1089.0 | 848.9 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 9.39 | 240.91 | -13.53 | 70.48 | 0.2460 | 1081.0 | 817.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
