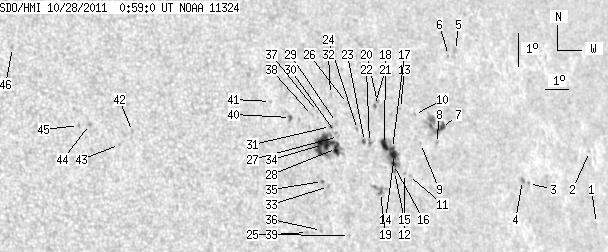

SDO HMI 2011-10-28 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.05 | 143.90 | 31.12 | 104.98 | 12.45 | 301.02 | 47.13 | 282.60 | 0.7345 | 240.6 | -0.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.72 | 9.37 | 311.61 | 57.72 | 278.04 | 0.8446 | -350.0 | -358.8 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 11.52 | 311.85 | 57.96 | 280.59 | 0.8471 | -363.0 | -330.5 | |
| 0.00 | 1.30 | 0.00 | 1.10 | 10.80 | 308.28 | 54.39 | 279.85 | 0.8128 | -447.0 | -412.5 | |
| 0.00 | 1.56 | 0.00 | 1.31 | 10.91 | 308.00 | 54.11 | 280.00 | 0.8100 | -670.0 | -607.6 | |
| 0.00 | 1.82 | 0.00 | 1.47 | 15.00 | 305.83 | 51.94 | 285.29 | 0.7907 | -612.0 | -573.8 | |
| 0.00 | 0.52 | 0.00 | 0.42 | 14.87 | 305.43 | 51.54 | 285.17 | 0.7865 | -580.0 | -515.7 | |
| 4.60 | 20.74 | 3.58 | 16.04 | 12.75 | 304.44 | 50.55 | 282.56 | 0.7739 | -590.9 | -603.5 | |
| 0.00 | 1.91 | 0.00 | 1.47 | 12.29 | 304.08 | 50.19 | 281.99 | 0.7696 | -512.0 | -488.3 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 12.33 | 303.33 | 49.44 | 282.12 | 0.7614 | -462.0 | -478.6 | |
| 0.00 | 1.13 | 0.00 | 0.86 | 13.22 | 303.28 | 49.39 | 283.29 | 0.7617 | -716.0 | -638.8 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 11.41 | 302.54 | 48.65 | 280.98 | 0.7519 | 333.0 | 323.5 | |
| 0.00 | 0.95 | 0.00 | 0.71 | 11.49 | 302.38 | 48.49 | 281.09 | 0.7501 | 673.0 | 582.0 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 13.43 | 302.68 | 48.79 | 283.65 | 0.7553 | -659.0 | -512.5 | |
| 3.47 | 26.55 | 2.57 | 19.65 | 12.08 | 302.06 | 48.17 | 281.91 | 0.7469 | 488.5 | 98.6 | |
| 0.00 | 1.82 | 0.00 | 1.35 | 11.57 | 301.94 | 48.05 | 281.24 | 0.7452 | -457.0 | -332.6 | |
| 1.91 | -14.00 | 1.41 | -14.00 | 11.78 | 301.94 | 48.05 | 281.53 | 0.7454 | -495.9 | 999999 | |
| 1.39 | -14.00 | 1.03 | -14.00 | 12.26 | 302.01 | 48.12 | 282.16 | 0.7466 | 396.7 | 999999 | |
| 4.60 | -14.00 | 3.39 | -14.00 | 12.41 | 301.68 | 47.79 | 282.39 | 0.7429 | 507.4 | 999999 | |
| 1.74 | 7.72 | 1.27 | 5.63 | 10.99 | 301.17 | 47.28 | 280.52 | 0.7359 | 508.4 | -197.4 | |
| 0.00 | 0.95 | 0.00 | 0.71 | 13.71 | 301.69 | 47.80 | 284.14 | 0.7445 | 502.0 | 433.8 | |
| 0.35 | 1.39 | 0.26 | 1.02 | 13.60 | 301.52 | 47.63 | 284.01 | 0.7425 | 456.2 | 352.3 | |
| 0.00 | 2.95 | 0.00 | 2.15 | 12.51 | 301.02 | 47.13 | 282.60 | 0.7355 | 509.0 | 453.6 | |
| 1.13 | 1.56 | 0.82 | 1.13 | 12.55 | 300.81 | 46.92 | 282.68 | 0.7331 | 576.5 | 642.2 | |
| 0.00 | 1.30 | 0.00 | 0.94 | 12.93 | 300.58 | 46.69 | 283.23 | 0.7309 | 490.0 | 402.5 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 9.79 | 299.57 | 45.68 | 278.99 | 0.7162 | 511.0 | 417.5 | |
| 0.00 | 1.30 | 0.00 | 0.94 | 13.73 | 300.34 | 46.45 | 284.36 | 0.7291 | 574.0 | 429.8 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 12.77 | 299.70 | 45.81 | 283.12 | 0.7204 | 339.0 | 222.3 | |
| 4.43 | 41.47 | 3.14 | 29.23 | 12.41 | 299.53 | 45.64 | 282.66 | 0.7180 | 440.1 | 425.3 | |
| 0.00 | 1.48 | 0.00 | 1.05 | 13.19 | 299.72 | 45.83 | 283.71 | 0.7211 | 434.0 | 394.0 | |
| 0.00 | 1.21 | 0.00 | 0.86 | 12.89 | 299.60 | 45.71 | 283.31 | 0.7194 | 548.0 | 459.0 | |
| 0.00 | 1.74 | 0.00 | 1.23 | 13.09 | 299.43 | 45.54 | 283.61 | 0.7176 | 653.0 | 569.8 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 14.04 | 299.66 | 45.77 | 284.89 | 0.7217 | 364.0 | 408.9 | |
| 0.00 | 1.56 | 0.00 | 1.09 | 11.30 | 298.95 | 45.06 | 281.17 | 0.7098 | 669.0 | 542.8 | |
| 17.87 | -28.00 | 12.57 | -28.00 | 12.57 | 299.00 | 45.11 | 282.94 | 0.7119 | 816.6 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.97 | 11.46 | 298.72 | 44.83 | 281.42 | 0.7073 | 708.0 | 603.8 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 10.01 | 298.41 | 44.52 | 279.39 | 0.7021 | 652.0 | 501.0 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 13.57 | 298.97 | 45.08 | 284.35 | 0.7129 | 599.0 | 538.8 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 13.46 | 298.73 | 44.84 | 284.23 | 0.7098 | 642.0 | 537.0 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 9.98 | 297.81 | 43.92 | 279.40 | 0.6948 | 742.0 | 629.1 | |
| 1.56 | 2.43 | 1.08 | 1.68 | 13.45 | 297.78 | 43.89 | 284.38 | 0.6985 | 688.6 | 830.1 | |
| 0.00 | 0.52 | 0.00 | 0.36 | 13.98 | 297.06 | 43.17 | 285.27 | 0.6905 | 550.0 | 521.2 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 13.37 | 291.36 | 37.47 | 285.63 | 0.6169 | -589.0 | -442.8 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 13.01 | 290.80 | 36.91 | 285.19 | 0.6085 | -628.0 | -531.2 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 13.66 | 289.77 | 35.88 | 286.55 | 0.5963 | -707.0 | -630.4 | |
| 0.00 | 1.39 | 0.00 | 0.85 | 13.65 | 289.35 | 35.46 | 286.66 | 0.5907 | -510.0 | -445.1 | |
| 0.00 | 1.48 | 0.00 | 0.89 | 16.12 | 287.33 | 33.44 | 291.57 | 0.5714 | -736.0 | -607.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
