SDO HMI 2011-10-28 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.35 | 154.12 | 23.63 | 78.70 | 14.78 | 243.24 | -10.10 | 43.79 | 0.2453 | -165.5 | -107.8 | |
|
previous
or next observation for the same group /

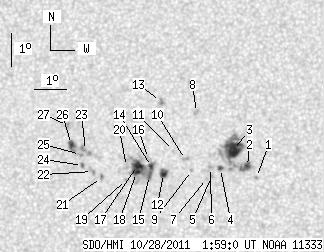

back to the solar disc SDO HMI 2011-10-28 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.21 | 245.88 | -7.46 | 37.52 | 0.2075 | -984.0 | -777.1 | |
| 1.91 | 55.88 | 0.97 | 28.40 | 14.54 | 245.59 | -7.75 | 37.58 | 0.2150 | -1201.4 | -621.8 | |
| 18.57 | -2.00 | 9.44 | -2.00 | 15.05 | 245.14 | -8.20 | 37.67 | 0.2264 | -1161.5 | 999999 | |
| 2.17 | 3.04 | 1.10 | 1.54 | 14.47 | 244.76 | -8.58 | 40.61 | 0.2230 | -833.4 | -685.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 14.22 | 244.49 | -8.85 | 42.23 | 0.2230 | -887.0 | -771.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.49 | 244.44 | -8.90 | 41.53 | 0.2269 | -777.0 | -616.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.16 | 244.33 | -9.01 | 42.90 | 0.2240 | -770.0 | -571.5 | |
| 0.00 | 2.60 | 0.00 | 1.33 | 16.15 | 243.93 | -9.41 | 38.46 | 0.2536 | -983.0 | -726.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.39 | 243.86 | -9.48 | 43.62 | 0.2324 | -826.0 | -625.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 14.72 | 243.65 | -9.69 | 43.21 | 0.2387 | 781.0 | 734.0 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 14.99 | 243.27 | -10.07 | 43.52 | 0.2465 | 866.0 | 714.9 | |
| 5.47 | 6.16 | 2.79 | 3.14 | 14.29 | 242.99 | -10.35 | 46.38 | 0.2416 | 1011.7 | 766.0 | |
| 0.00 | 3.04 | 0.00 | 1.56 | 16.47 | 242.78 | -10.56 | 40.83 | 0.2700 | 1038.0 | 857.4 | |
| 2.26 | 42.43 | 1.15 | 21.71 | 14.50 | 242.60 | -10.74 | 46.77 | 0.2487 | 994.7 | -199.4 | |
| 1.82 | -14.00 | 0.93 | -14.00 | 14.22 | 242.55 | -10.79 | 47.73 | 0.2463 | 1122.6 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 14.74 | 242.50 | -10.84 | 46.32 | 0.2527 | 5.0 | 25.1 | |
| 7.12 | -14.00 | 3.64 | -14.00 | 14.52 | 242.16 | -11.18 | 47.81 | 0.2544 | -1025.0 | 999999 | |
| 2.26 | -14.00 | 1.15 | -14.00 | 14.31 | 242.14 | -11.20 | 48.51 | 0.2524 | -1134.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 14.09 | 241.84 | -11.50 | 49.90 | 0.2540 | 707.0 | 538.8 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 14.48 | 241.82 | -11.52 | 48.75 | 0.2584 | -568.0 | -266.8 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 14.14 | 241.05 | -12.29 | 51.55 | 0.2647 | 1150.0 | 1005.5 | |
| 0.00 | 3.82 | 0.00 | 1.96 | 14.32 | 240.76 | -12.58 | 51.65 | 0.2703 | 1050.0 | 760.8 | |
| 0.00 | 5.90 | 0.00 | 3.04 | 14.95 | 240.50 | -12.84 | 50.35 | 0.2801 | 961.0 | 833.1 | |
| 0.43 | 1.74 | 0.22 | 0.89 | 14.49 | 240.43 | -12.91 | 51.81 | 0.2764 | 919.0 | 758.9 | |
| 0.00 | 2.17 | 0.00 | 1.12 | 14.82 | 240.35 | -12.99 | 51.02 | 0.2808 | 1150.0 | 909.6 | |
| 4.34 | 7.20 | 2.24 | 3.72 | 15.12 | 240.05 | -13.29 | 50.80 | 0.2877 | 968.9 | 887.6 | |
| 0.00 | 2.78 | 0.00 | 1.44 | 15.69 | 239.88 | -13.46 | 49.57 | 0.2957 | 979.0 | 823.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
