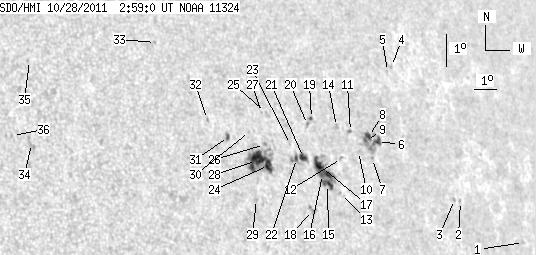

SDO HMI 2011-10-28 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.08 | 164.00 | 48.40 | 122.35 | 12.57 | 301.10 | 48.31 | 282.63 | 0.7481 | 135.5 | -29.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.15 | 9.32 | 311.50 | 58.71 | 278.00 | 0.8536 | -522.0 | -406.9 | |
| 0.00 | 1.21 | 0.00 | 1.06 | 10.78 | 308.36 | 55.57 | 279.79 | 0.8244 | -505.0 | -382.9 | |
| 0.00 | 1.65 | 0.00 | 1.42 | 10.86 | 308.06 | 55.27 | 279.90 | 0.8215 | -607.0 | -498.6 | |
| 0.00 | 1.21 | 0.00 | 1.01 | 15.03 | 306.08 | 53.29 | 285.18 | 0.8045 | -547.0 | -489.3 | |
| 0.00 | 0.69 | 0.00 | 0.57 | 14.90 | 305.83 | 53.03 | 285.04 | 0.8018 | -562.0 | -491.6 | |
| 5.03 | 25.95 | 4.03 | 20.63 | 12.84 | 304.65 | 51.86 | 282.57 | 0.7880 | -497.9 | -570.6 | |
| 0.00 | 1.13 | 0.00 | 0.90 | 12.35 | 304.27 | 51.48 | 281.98 | 0.7835 | -599.0 | -481.9 | |
| 3.30 | -6.00 | 2.62 | -6.00 | 13.02 | 304.26 | 51.47 | 282.83 | 0.7840 | -708.4 | 999999 | |
| 0.52 | -6.00 | 0.41 | -6.00 | 12.91 | 304.13 | 51.34 | 282.70 | 0.7825 | -821.0 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.82 | 12.60 | 303.65 | 50.86 | 282.35 | 0.7772 | -235.0 | -225.3 | |
| 0.00 | 1.13 | 0.00 | 0.88 | 13.22 | 303.44 | 50.65 | 283.17 | 0.7754 | -763.0 | -712.2 | |
| 0.00 | 1.56 | 0.00 | 1.20 | 12.44 | 302.79 | 50.00 | 282.23 | 0.7677 | 302.0 | 210.6 | |
| 0.00 | 0.95 | 0.00 | 0.73 | 11.41 | 302.48 | 49.69 | 280.90 | 0.7635 | 700.0 | 616.3 | |
| 0.00 | 2.26 | 0.00 | 1.74 | 13.41 | 302.82 | 50.03 | 283.49 | 0.7689 | -522.0 | -482.2 | |
| 5.90 | 38.45 | 4.46 | 29.05 | 11.71 | 301.94 | 49.15 | 281.34 | 0.7578 | -731.1 | -87.2 | |
| 6.77 | -15.00 | 5.10 | -15.00 | 12.02 | 301.79 | 49.00 | 281.77 | 0.7563 | -354.5 | 999999 | |
| 9.63 | -15.00 | 7.27 | -15.00 | 12.24 | 301.79 | 49.00 | 282.05 | 0.7565 | 504.1 | 999999 | |
| 0.00 | 3.64 | 0.00 | 2.71 | 10.98 | 301.08 | 48.29 | 280.44 | 0.7475 | 282.0 | 151.3 | |
| 1.13 | 1.82 | 0.85 | 1.38 | 13.73 | 301.72 | 48.93 | 284.02 | 0.7572 | 339.0 | 234.1 | |
| 0.00 | 2.08 | 0.00 | 1.57 | 13.56 | 301.49 | 48.70 | 283.83 | 0.7544 | 481.0 | 378.8 | |
| 4.34 | 13.54 | 3.23 | 10.04 | 12.58 | 301.05 | 48.25 | 282.59 | 0.7484 | 522.3 | 262.2 | |
| 1.82 | -21.00 | 1.35 | -21.00 | 12.57 | 300.72 | 47.93 | 282.61 | 0.7448 | 499.5 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.38 | 13.01 | 300.56 | 47.76 | 283.21 | 0.7433 | 566.0 | 501.3 | |
| 6.94 | 46.08 | 5.01 | 33.07 | 12.44 | 299.42 | 46.63 | 282.58 | 0.7297 | 482.4 | 460.1 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 14.03 | 299.69 | 46.90 | 284.72 | 0.7347 | 470.0 | 479.3 | |
| 0.00 | 1.48 | 0.00 | 1.07 | 13.08 | 299.40 | 46.61 | 283.46 | 0.7301 | 575.0 | 502.9 | |
| 0.00 | 0.61 | 0.00 | 0.44 | 14.04 | 299.51 | 46.72 | 284.76 | 0.7327 | 423.0 | 438.0 | |
| 17.70 | -24.00 | 12.67 | -24.00 | 12.62 | 298.93 | 46.14 | 282.89 | 0.7242 | 849.4 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.17 | 11.46 | 298.67 | 45.88 | 281.31 | 0.7199 | 639.0 | 475.1 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 13.51 | 298.84 | 46.05 | 284.12 | 0.7241 | 653.0 | 597.0 | |
| 2.00 | 2.95 | 1.40 | 2.08 | 13.41 | 297.89 | 45.10 | 284.14 | 0.7129 | 737.3 | 624.1 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 13.97 | 297.12 | 44.33 | 285.05 | 0.7045 | 567.0 | 479.0 | |
| 0.00 | 1.04 | 0.00 | 0.71 | 16.41 | 295.53 | 42.73 | 288.86 | 0.6902 | 583.0 | 522.0 | |
| 0.00 | 5.81 | 0.00 | 3.63 | 13.63 | 289.89 | 37.10 | 286.15 | 0.6126 | -643.0 | -561.3 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 16.13 | 290.32 | 37.53 | 290.00 | 0.6251 | -477.0 | -511.6 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 13.90 | 289.21 | 36.42 | 286.80 | 0.6043 | -747.0 | -574.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
