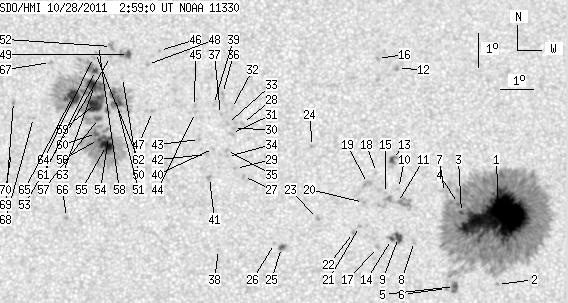

SDO HMI 2011-10-28 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 278.23 | 1288.51 | 138.64 | 642.13 | 7.16 | 251.60 | -1.19 | 223.40 | 0.0916 | -368.2 | -120.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 183.89 | 803.36 | 91.23 | 398.54 | 6.16 | 255.58 | 2.78 | 296.05 | 0.0540 | -1544.4 | -449.0 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 4.16 | 255.54 | 2.75 | 256.79 | 0.0493 | 830.0 | 652.1 | |
| 1.39 | -1.00 | 0.69 | -1.00 | 6.31 | 254.47 | 1.68 | 312.03 | 0.0393 | -967.9 | 999999 | |
| 1.39 | -1.00 | 0.69 | -1.00 | 6.58 | 254.38 | 1.59 | 318.30 | 0.0416 | -648.1 | 999999 | |
| 0.00 | 6.94 | 0.00 | 3.44 | 4.11 | 254.25 | 1.46 | 244.28 | 0.0284 | 1078.0 | 761.5 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 4.05 | 254.01 | 1.22 | 238.00 | 0.0252 | 881.0 | 660.9 | |
| 0.00 | 4.95 | 0.00 | 2.45 | 6.91 | 253.96 | 1.17 | 331.06 | 0.0420 | -361.0 | -324.9 | |
| 0.00 | 2.34 | 0.00 | 1.16 | 5.45 | 253.06 | 0.27 | 337.36 | 0.0121 | -866.0 | -661.7 | |
| 5.47 | 10.85 | 2.71 | 5.37 | 5.57 | 252.58 | -0.21 | 15.53 | 0.0138 | -1147.7 | -751.0 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 7.03 | 252.58 | -0.21 | 5.42 | 0.0390 | -831.0 | -574.1 | |
| 0.00 | 20.05 | 0.00 | 9.93 | 6.61 | 252.55 | -0.24 | 7.60 | 0.0318 | -887.0 | -862.3 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 10.61 | 252.55 | -0.24 | 2.38 | 0.1016 | -1200.0 | -892.5 | |
| 2.34 | 6.42 | 1.16 | 3.19 | 7.89 | 252.37 | -0.42 | 7.74 | 0.0545 | 1065.4 | 717.3 | |
| 1.48 | -9.00 | 0.73 | -9.00 | 5.51 | 252.37 | -0.42 | 30.98 | 0.0143 | -922.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 6.88 | 252.19 | -0.60 | 16.12 | 0.0377 | -876.0 | -703.7 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 10.91 | 251.94 | -0.85 | 7.82 | 0.1077 | -918.0 | -752.0 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 5.27 | 251.95 | -0.84 | 61.21 | 0.0167 | -915.0 | -649.4 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 7.50 | 251.92 | -0.87 | 17.82 | 0.0496 | -639.0 | -489.3 | |
| 0.00 | 5.38 | 0.00 | 2.67 | 7.17 | 251.65 | -1.14 | 25.61 | 0.0460 | -646.0 | -717.9 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 6.61 | 251.53 | -1.26 | 34.84 | 0.0384 | -1016.0 | -728.6 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 5.89 | 251.41 | -1.38 | 51.67 | 0.0307 | -931.0 | -685.4 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 5.71 | 251.23 | -1.56 | 59.70 | 0.0315 | -952.0 | -663.4 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 6.13 | 250.15 | -2.64 | 63.23 | 0.0515 | 1071.0 | 865.1 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 8.27 | 249.99 | -2.80 | 38.64 | 0.0778 | -925.0 | -684.5 | |
| 2.43 | 3.12 | 1.21 | 1.55 | 5.26 | 249.08 | -3.71 | 82.91 | 0.0653 | 1114.0 | 972.9 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 5.38 | 248.87 | -3.92 | 81.57 | 0.0692 | 881.0 | 588.7 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 7.37 | 247.92 | -4.87 | 61.93 | 0.0959 | 1053.0 | 817.9 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 8.95 | 247.87 | -4.92 | 49.47 | 0.1120 | 774.0 | 642.0 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 7.60 | 247.68 | -5.12 | 60.96 | 0.1016 | 968.0 | 835.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 8.80 | 247.60 | -5.19 | 52.00 | 0.1140 | 920.0 | 812.3 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 8.65 | 247.54 | -5.25 | 53.37 | 0.1133 | 933.0 | 786.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 9.39 | 247.53 | -5.26 | 48.42 | 0.1215 | 791.0 | 601.1 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 8.94 | 247.42 | -5.38 | 51.94 | 0.1181 | 993.0 | 730.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 7.96 | 247.43 | -5.36 | 59.13 | 0.1083 | 978.0 | 808.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.14 | 247.40 | -5.39 | 57.88 | 0.1104 | 1106.0 | 870.2 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 9.84 | 247.25 | -5.54 | 47.22 | 0.1302 | 974.0 | 696.8 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.21 | 247.20 | -5.59 | 51.27 | 0.1239 | 996.0 | 774.2 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 5.19 | 247.19 | -5.60 | 85.90 | 0.0979 | 826.0 | 645.9 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 9.51 | 246.98 | -5.81 | 50.48 | 0.1300 | 981.0 | 865.8 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 8.19 | 247.00 | -5.79 | 59.22 | 0.1167 | 1033.0 | 775.6 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 7.33 | 246.89 | -5.90 | 66.46 | 0.1117 | 1063.0 | 829.5 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 8.01 | 246.79 | -6.00 | 61.42 | 0.1184 | 921.0 | 794.5 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 8.46 | 246.58 | -6.22 | 59.08 | 0.1254 | 1038.0 | 787.2 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.26 | 246.44 | -6.35 | 54.39 | 0.1349 | 935.0 | 776.5 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 9.44 | 246.41 | -6.38 | 53.46 | 0.1372 | 1131.0 | 846.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 11.11 | 245.30 | -7.49 | 49.20 | 0.1697 | 899.0 | 744.0 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 9.28 | 245.13 | -7.66 | 59.11 | 0.1540 | 944.0 | 727.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.68 | 244.95 | -7.84 | 52.44 | 0.1700 | 1101.0 | 759.5 | |
| 2.78 | 7.64 | 1.40 | 3.85 | 10.98 | 244.36 | -8.43 | 53.05 | 0.1810 | 1037.5 | 945.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.29 | 244.19 | -8.60 | 56.77 | 0.1767 | 799.0 | 592.9 | |
| 13.28 | 226.33 | 6.68 | 114.12 | 9.66 | 243.99 | -8.80 | 60.45 | 0.1741 | 1150.1 | 519.3 | |
| 0.00 | 4.86 | 0.00 | 2.45 | 11.21 | 243.83 | -8.96 | 53.65 | 0.1906 | 942.0 | 744.2 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 10.91 | 243.81 | -8.99 | 55.02 | 0.1880 | 963.0 | 731.1 | |
| 0.87 | 124.45 | 0.44 | 62.53 | 8.52 | 243.81 | -8.98 | 66.95 | 0.1686 | 994.4 | 484.4 | |
| 8.94 | -54.00 | 4.49 | -54.00 | 8.25 | 243.76 | -9.04 | 68.56 | 0.1678 | 1442.8 | 999999 | |
| 0.95 | -54.00 | 0.48 | -54.00 | 8.42 | 243.51 | -9.28 | 68.10 | 0.1728 | 1190.1 | 999999 | |
| 3.21 | -51.00 | 1.62 | -51.00 | 9.05 | 243.49 | -9.30 | 64.81 | 0.1772 | 1143.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 11.23 | 243.43 | -9.36 | 54.70 | 0.1965 | 828.0 | 608.4 | |
| 18.75 | -51.00 | 9.44 | -51.00 | 9.50 | 243.42 | -9.37 | 62.71 | 0.1816 | 1285.8 | 999999 | |
| 2.60 | -54.00 | 1.31 | -54.00 | 8.60 | 243.44 | -9.35 | 67.28 | 0.1750 | 1103.9 | 999999 | |
| 2.69 | -51.00 | 1.36 | -51.00 | 10.48 | 243.36 | -9.43 | 58.18 | 0.1905 | 1106.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 11.02 | 243.34 | -9.45 | 55.84 | 0.1957 | 757.0 | 568.7 | |
| 12.58 | -51.00 | 6.34 | -51.00 | 10.04 | 243.34 | -9.45 | 60.30 | 0.1870 | 1128.0 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 10.87 | 243.28 | -9.51 | 56.64 | 0.1951 | 958.0 | 711.9 | |
| 13.19 | -51.00 | 6.66 | -51.00 | 9.70 | 242.68 | -10.11 | 63.45 | 0.1944 | 1097.5 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 6.09 | 242.58 | -10.21 | 82.37 | 0.1786 | 1018.0 | 792.9 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 10.70 | 241.97 | -10.83 | 60.56 | 0.2129 | 709.0 | 497.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 9.05 | 241.50 | -11.29 | 68.65 | 0.2086 | -742.0 | -622.0 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 9.52 | 240.87 | -11.92 | 67.62 | 0.2214 | 992.0 | 731.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 8.00 | 240.85 | -11.94 | 74.35 | 0.2137 | 704.0 | 561.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
