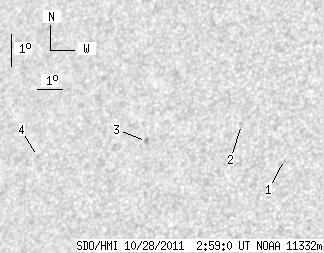

SDO HMI 2011-10-28 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.21 | 0.00 | 3.38 | 17.29 | 213.81 | -38.98 | 68.62 | 0.6465 | -638.0 | -534.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.21 | 17.02 | 219.09 | -33.70 | 67.03 | 0.5785 | -496.0 | -473.0 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 18.01 | 217.24 | -35.56 | 66.27 | 0.6064 | -680.0 | -558.2 | |
| 0.00 | 2.69 | 0.00 | 1.75 | 17.31 | 213.66 | -39.13 | 68.75 | 0.6488 | -640.0 | -507.4 | |
| 0.00 | 1.04 | 0.00 | 0.72 | 16.61 | 209.31 | -43.48 | 71.03 | 0.6996 | -736.0 | -594.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
