SDO HMI 2011-10-28 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.63 | 166.26 | 38.73 | 125.20 | 12.53 | 301.00 | 48.75 | 282.55 | 0.7531 | 178.0 | 5.7 | |
|
previous
or next observation for the same group /

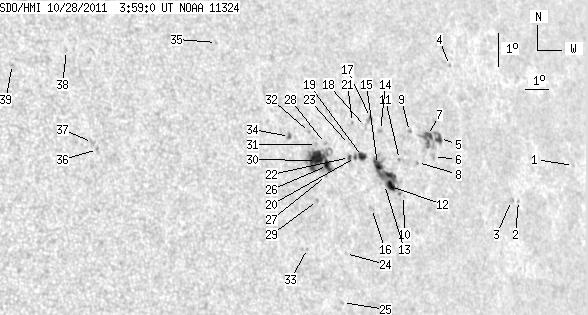

back to the solar disc SDO HMI 2011-10-28 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.67 | 11.61 | 311.79 | 59.54 | 280.67 | 0.8613 | -207.0 | -197.1 | |
| 0.00 | 1.22 | 0.00 | 1.07 | 10.79 | 308.36 | 56.12 | 279.79 | 0.8298 | -405.0 | -306.4 | |
| 0.00 | 2.60 | 0.00 | 2.28 | 10.82 | 307.99 | 55.75 | 279.84 | 0.8262 | -223.0 | -325.6 | |
| 0.00 | 1.04 | 0.00 | 0.88 | 15.05 | 306.06 | 53.82 | 285.15 | 0.8098 | -639.0 | -533.2 | |
| 4.17 | 22.30 | 3.39 | 17.99 | 12.91 | 304.83 | 52.59 | 282.60 | 0.7956 | -454.8 | -613.2 | |
| 0.00 | 3.12 | 0.00 | 2.51 | 12.39 | 304.38 | 52.13 | 281.98 | 0.7905 | -477.0 | -404.7 | |
| 4.77 | -5.00 | 3.84 | -5.00 | 13.04 | 304.27 | 52.02 | 282.81 | 0.7898 | -722.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.55 | 12.26 | 303.55 | 51.31 | 281.89 | 0.7817 | -568.0 | -527.0 | |
| 0.00 | 1.39 | 0.00 | 1.10 | 13.21 | 303.43 | 51.18 | 283.11 | 0.7811 | -752.0 | -691.1 | |
| 0.00 | 0.69 | 0.00 | 0.54 | 11.32 | 302.63 | 50.39 | 280.74 | 0.7711 | 307.0 | 398.4 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 12.41 | 302.71 | 50.47 | 282.14 | 0.7728 | 460.0 | 323.4 | |
| 4.77 | 39.49 | 3.66 | 30.21 | 11.63 | 302.08 | 49.84 | 281.18 | 0.7654 | -738.7 | -110.9 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 11.71 | 301.82 | 49.58 | 281.31 | 0.7625 | -497.0 | -487.8 | |
| 0.00 | 1.91 | 0.00 | 1.47 | 13.33 | 302.06 | 49.81 | 283.41 | 0.7665 | -302.0 | -295.5 | |
| 5.55 | -12.00 | 4.22 | -12.00 | 12.32 | 301.64 | 49.40 | 282.13 | 0.7610 | 529.3 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.89 | 11.03 | 301.05 | 48.81 | 280.47 | 0.7535 | -330.0 | -91.4 | |
| 0.61 | 3.12 | 0.46 | 2.38 | 13.75 | 301.70 | 49.46 | 283.99 | 0.7630 | 362.9 | 314.4 | |
| 0.00 | 1.74 | 0.00 | 1.32 | 13.49 | 301.39 | 49.15 | 283.70 | 0.7594 | 416.0 | 347.4 | |
| 4.77 | 8.16 | 3.59 | 6.12 | 12.60 | 301.01 | 48.77 | 282.57 | 0.7543 | 509.7 | 436.5 | |
| 0.69 | -19.00 | 0.52 | -19.00 | 12.59 | 300.69 | 48.44 | 282.59 | 0.7506 | 529.6 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.91 | 13.65 | 300.83 | 48.58 | 283.97 | 0.7533 | 523.0 | 468.5 | |
| 1.74 | 3.73 | 1.29 | 2.77 | 12.61 | 300.41 | 48.17 | 282.64 | 0.7475 | 471.0 | 218.7 | |
| 0.00 | 0.87 | 0.00 | 0.65 | 13.00 | 300.51 | 48.27 | 283.15 | 0.7491 | 498.0 | 435.7 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 9.76 | 299.61 | 47.36 | 278.87 | 0.7361 | 460.0 | 382.2 | |
| 0.00 | 1.13 | 0.00 | 0.82 | 8.32 | 299.22 | 46.98 | 276.90 | 0.7311 | 586.0 | 504.4 | |
| 5.47 | 48.51 | 3.98 | 35.15 | 12.43 | 299.37 | 47.12 | 282.52 | 0.7354 | 489.4 | 489.0 | |
| 0.00 | 1.13 | 0.00 | 0.82 | 12.14 | 299.25 | 47.01 | 282.13 | 0.7338 | 418.0 | 336.8 | |
| 0.00 | 1.30 | 0.00 | 0.95 | 13.09 | 299.44 | 47.20 | 283.41 | 0.7370 | 597.0 | 480.8 | |
| 0.00 | 0.95 | 0.00 | 0.69 | 11.42 | 298.69 | 46.45 | 281.20 | 0.7266 | 609.0 | 562.5 | |
| 17.79 | -26.00 | 12.85 | -26.00 | 12.61 | 298.92 | 46.67 | 282.82 | 0.7304 | 842.5 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.13 | 13.09 | 299.03 | 46.79 | 283.45 | 0.7323 | 607.0 | 563.6 | |
| 0.00 | 1.39 | 0.00 | 1.00 | 13.47 | 298.81 | 46.57 | 284.00 | 0.7302 | 606.0 | 500.8 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 10.01 | 297.98 | 45.73 | 279.32 | 0.7170 | 656.0 | 539.0 | |
| 1.30 | 2.17 | 0.93 | 1.54 | 13.40 | 297.91 | 45.67 | 284.04 | 0.7196 | 742.5 | 597.9 | |
| 0.00 | 1.30 | 0.00 | 0.90 | 16.40 | 295.53 | 43.29 | 288.72 | 0.6968 | 556.0 | 483.9 | |
| 0.00 | 1.74 | 0.00 | 1.09 | 13.44 | 290.01 | 37.76 | 285.68 | 0.6209 | -630.0 | -457.2 | |
| 0.00 | 2.69 | 0.00 | 1.69 | 13.65 | 289.85 | 37.61 | 286.07 | 0.6194 | -717.0 | -542.6 | |
| 0.00 | 1.30 | 0.00 | 0.82 | 16.48 | 289.42 | 37.18 | 290.67 | 0.6217 | -680.0 | -478.9 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 16.15 | 287.27 | 35.03 | 290.97 | 0.5927 | -737.0 | -610.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
