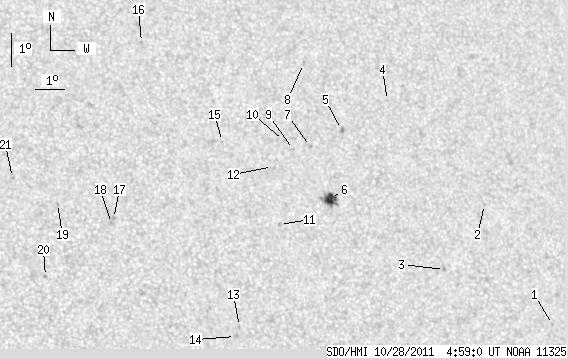

SDO HMI 2011-10-28 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.94 | 39.50 | 5.12 | 22.41 | 16.37 | 278.57 | 26.88 | 296.09 | 0.4843 | -197.4 | -197.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.59 | 12.11 | 287.44 | 35.74 | 284.03 | 0.5910 | -596.0 | -460.0 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 15.84 | 285.54 | 33.84 | 290.95 | 0.5759 | -725.0 | -613.2 | |
| 0.00 | 1.30 | 0.00 | 0.77 | 13.94 | 283.74 | 32.04 | 288.41 | 0.5448 | -792.0 | -684.2 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 19.16 | 282.61 | 30.91 | 298.11 | 0.5523 | -482.0 | -425.1 | |
| 0.00 | 2.17 | 0.00 | 1.26 | 18.34 | 280.77 | 29.08 | 297.89 | 0.5240 | -691.0 | -637.5 | |
| 8.94 | 16.32 | 5.12 | 9.33 | 16.25 | 280.02 | 28.33 | 294.57 | 0.5029 | -934.4 | -749.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 17.86 | 279.58 | 27.88 | 297.86 | 0.5056 | -822.0 | -600.8 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 20.41 | 279.80 | 28.11 | 302.24 | 0.5241 | -401.0 | -414.7 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 17.79 | 278.97 | 27.27 | 298.18 | 0.4970 | -815.0 | -639.5 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 18.08 | 278.66 | 26.97 | 298.94 | 0.4946 | -443.0 | -403.6 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 15.53 | 278.14 | 26.44 | 294.41 | 0.4731 | -667.0 | -498.3 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 17.30 | 278.15 | 26.46 | 297.86 | 0.4831 | -198.0 | -283.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 12.51 | 276.41 | 24.71 | 289.14 | 0.4339 | 584.0 | 477.5 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 12.21 | 276.25 | 24.55 | 288.57 | 0.4302 | 694.0 | 557.4 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 18.12 | 276.54 | 24.85 | 300.78 | 0.4668 | 653.0 | 493.5 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 21.26 | 274.23 | 22.54 | 309.01 | 0.4616 | 693.0 | 565.1 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 15.89 | 272.57 | 20.87 | 300.00 | 0.3973 | 820.0 | 645.5 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 15.74 | 272.48 | 20.79 | 299.75 | 0.3951 | 673.0 | 580.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 16.40 | 270.77 | 19.07 | 303.26 | 0.3765 | 746.0 | 577.6 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 14.20 | 270.17 | 18.48 | 298.62 | 0.3515 | 851.0 | 716.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 17.23 | 269.38 | 17.68 | 307.06 | 0.3651 | 744.0 | 561.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
