SDO HMI 2011-10-28 04:59:00 UT

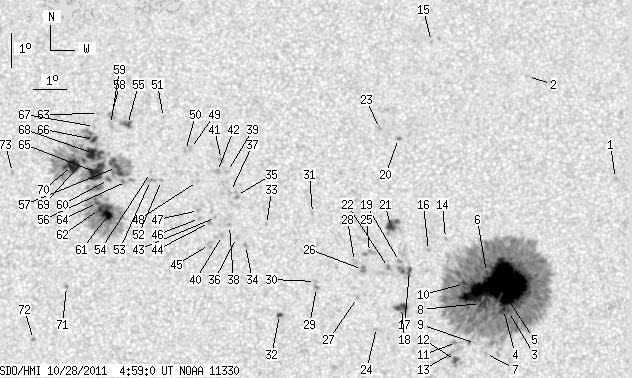

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 241.27 | 1336.67 | 120.22 | 665.88 | 7.13 | 251.79 | 0.09 | 220.44 | 0.0966 | -376.7 | -139.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.78 | 9.33 | 259.14 | 7.44 | 301.95 | 0.1514 | -878.0 | -685.1 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 12.41 | 256.52 | 4.82 | 328.26 | 0.1568 | -731.0 | -508.1 | |
| 1.39 | 837.53 | 0.69 | 415.95 | 5.39 | 255.86 | 4.16 | 278.36 | 0.0734 | -1010.9 | -477.0 | |
| 1.74 | -3.00 | 0.86 | -3.00 | 5.45 | 255.71 | 4.01 | 279.50 | 0.0709 | -1175.9 | 999999 | |
| 144.77 | -3.00 | 71.90 | -3.00 | 6.17 | 255.59 | 3.90 | 289.66 | 0.0721 | -1661.7 | 999999 | |
| 0.52 | -3.00 | 0.26 | -3.00 | 6.56 | 255.20 | 3.51 | 296.93 | 0.0685 | -1249.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 4.14 | 255.16 | 3.46 | 259.46 | 0.0616 | 691.0 | 507.5 | |
| 1.48 | -3.00 | 0.73 | -3.00 | 5.63 | 255.02 | 3.32 | 284.37 | 0.0598 | -1103.1 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 4.44 | 254.86 | 3.17 | 263.77 | 0.0557 | -29.0 | -22.2 | |
| 1.91 | -3.00 | 0.95 | -3.00 | 6.23 | 254.54 | 2.85 | 297.02 | 0.0557 | -971.3 | 999999 | |
| 0.00 | 3.38 | 0.00 | 1.68 | 4.47 | 254.29 | 2.60 | 263.07 | 0.0458 | -805.0 | -693.6 | |
| 2.34 | 6.42 | 1.16 | 3.18 | 3.94 | 254.26 | 2.57 | 251.62 | 0.0473 | 987.4 | 787.3 | |
| 0.00 | 8.07 | 0.00 | 4.00 | 4.21 | 254.23 | 2.54 | 257.03 | 0.0455 | 167.0 | 124.4 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 7.57 | 253.98 | 2.28 | 320.88 | 0.0629 | -785.0 | -625.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 13.47 | 253.59 | 1.90 | 347.95 | 0.1551 | -879.0 | -738.4 | |
| 0.00 | 1.56 | 0.00 | 0.77 | 7.22 | 253.47 | 1.77 | 324.08 | 0.0525 | -1003.0 | -806.6 | |
| 2.69 | 11.72 | 1.33 | 5.81 | 6.62 | 252.89 | 1.20 | 326.94 | 0.0383 | -1042.0 | -905.3 | |
| 5.55 | 8.85 | 2.75 | 4.39 | 5.52 | 252.65 | 0.96 | 307.37 | 0.0210 | -1097.3 | -974.1 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 6.89 | 252.59 | 0.90 | 336.94 | 0.0400 | -1029.0 | -803.7 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 10.56 | 252.57 | 0.88 | 351.48 | 0.1021 | -1100.0 | -873.3 | |
| 5.81 | 15.28 | 2.88 | 7.58 | 7.94 | 252.33 | 0.63 | 348.74 | 0.0561 | 1151.0 | 638.3 | |
| 0.00 | 2.52 | 0.00 | 1.25 | 6.71 | 252.26 | 0.57 | 343.58 | 0.0351 | -1198.0 | -1005.6 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 10.86 | 252.00 | 0.30 | 357.19 | 0.1064 | -932.0 | -722.5 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 4.93 | 251.90 | 0.21 | 302.38 | 0.0043 | -345.0 | -402.3 | |
| 0.00 | 5.90 | 0.00 | 2.93 | 7.16 | 251.70 | 0.00 | 0.00 | 0.0415 | -747.0 | -792.7 | |
| 0.00 | 3.99 | 0.00 | 1.98 | 6.65 | 251.49 | -0.21 | 6.41 | 0.0328 | -909.0 | -903.6 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 5.82 | 251.34 | -0.36 | 19.24 | 0.0190 | -917.0 | -627.9 | |
| 0.00 | 2.69 | 0.00 | 1.33 | 6.89 | 251.25 | -0.45 | 12.04 | 0.0376 | -592.0 | -554.2 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 6.12 | 250.11 | -1.59 | 50.04 | 0.0361 | 1159.0 | 885.8 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 6.29 | 250.08 | -1.62 | 46.97 | 0.0386 | 930.0 | 606.6 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 8.32 | 249.98 | -1.72 | 25.71 | 0.0686 | -846.0 | -636.4 | |
| 1.91 | 2.43 | 0.95 | 1.21 | 5.31 | 249.00 | -2.69 | 79.04 | 0.0479 | 960.0 | 980.3 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 7.99 | 248.60 | -3.10 | 43.80 | 0.0777 | 885.0 | 663.1 | |
| 0.00 | 2.08 | 0.00 | 1.03 | 7.36 | 247.97 | -3.73 | 55.13 | 0.0789 | 1045.0 | 831.9 | |
| 0.00 | 3.47 | 0.00 | 1.73 | 8.85 | 247.68 | -4.01 | 44.27 | 0.0995 | 803.0 | 786.1 | |
| 0.00 | 1.22 | 0.00 | 0.60 | 7.60 | 247.70 | -4.00 | 54.63 | 0.0852 | 1025.0 | 837.8 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 8.97 | 247.50 | -4.19 | 44.71 | 0.1032 | 678.0 | 711.2 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 7.95 | 247.48 | -4.21 | 52.76 | 0.0918 | 929.0 | 795.6 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 9.56 | 247.40 | -4.29 | 41.52 | 0.1119 | 730.0 | 659.8 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 7.65 | 247.27 | -4.42 | 56.74 | 0.0918 | 922.0 | 750.3 | |
| 0.00 | 2.52 | 0.00 | 1.26 | 9.92 | 247.22 | -4.48 | 40.64 | 0.1187 | 945.0 | 776.6 | |
| 0.00 | 3.21 | 0.00 | 1.60 | 9.56 | 247.10 | -4.60 | 43.46 | 0.1154 | 907.0 | 825.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 8.19 | 247.06 | -4.64 | 53.39 | 0.1002 | 862.0 | 653.2 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 8.04 | 246.88 | -4.82 | 55.63 | 0.1012 | 1053.0 | 843.0 | |
| 0.00 | 3.73 | 0.00 | 1.86 | 7.38 | 246.89 | -4.81 | 61.35 | 0.0952 | 839.0 | 731.9 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 8.16 | 246.57 | -5.12 | 56.29 | 0.1067 | 826.0 | 632.2 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 8.39 | 246.54 | -5.15 | 54.62 | 0.1095 | 953.0 | 760.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.26 | 246.50 | -5.20 | 48.83 | 0.1193 | 918.0 | 662.9 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 10.24 | 246.27 | -5.43 | 44.30 | 0.1338 | 767.0 | 645.1 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 10.18 | 246.12 | -5.58 | 45.41 | 0.1349 | 1016.0 | 801.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.16 | 245.43 | -6.27 | 43.85 | 0.1553 | 831.0 | 624.5 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 9.28 | 245.41 | -6.29 | 53.95 | 0.1344 | 947.0 | 761.6 | |
| 0.00 | 3.82 | 0.00 | 1.91 | 9.28 | 245.07 | -6.62 | 55.34 | 0.1390 | 1036.0 | 680.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 9.52 | 245.07 | -6.63 | 53.95 | 0.1415 | 863.0 | 605.1 | |
| 1.39 | 7.55 | 0.70 | 3.79 | 10.94 | 244.33 | -7.36 | 49.40 | 0.1664 | 1198.1 | 853.5 | |
| 0.00 | 5.81 | 0.00 | 2.91 | 9.24 | 244.34 | -7.35 | 58.24 | 0.1492 | 493.0 | 766.7 | |
| 9.72 | 38.80 | 4.88 | 19.45 | 9.65 | 244.03 | -7.67 | 56.98 | 0.1576 | 1184.2 | 617.0 | |
| 0.00 | 3.91 | 0.00 | 1.96 | 11.21 | 243.84 | -7.86 | 50.01 | 0.1759 | 918.0 | 803.0 | |
| 0.00 | 2.86 | 0.00 | 1.44 | 10.94 | 243.81 | -7.88 | 51.31 | 0.1733 | 849.0 | 694.7 | |
| 1.13 | 2.34 | 0.57 | 1.18 | 9.29 | 243.79 | -7.90 | 59.72 | 0.1578 | 927.7 | 975.9 | |
| 6.68 | 118.21 | 3.35 | 59.23 | 8.22 | 243.79 | -7.91 | 66.04 | 0.1497 | 1462.0 | 523.9 | |
| 1.56 | -61.00 | 0.78 | -61.00 | 8.39 | 243.54 | -8.16 | 65.61 | 0.1548 | 1164.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 11.26 | 243.44 | -8.26 | 51.13 | 0.1818 | 808.0 | 510.9 | |
| 1.65 | -61.00 | 0.83 | -61.00 | 8.60 | 243.47 | -8.22 | 64.55 | 0.1573 | 1108.6 | 999999 | |
| 17.36 | 176.10 | 8.72 | 88.59 | 9.50 | 243.42 | -8.27 | 59.72 | 0.1651 | 1267.1 | 531.6 | |
| 2.60 | -65.00 | 1.31 | -65.00 | 10.48 | 243.34 | -8.36 | 55.02 | 0.1753 | 1094.9 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 10.87 | 243.33 | -8.37 | 53.24 | 0.1792 | 843.0 | 561.8 | |
| 13.45 | -65.00 | 6.76 | -65.00 | 10.07 | 243.32 | -8.38 | 57.12 | 0.1716 | 1118.5 | 999999 | |
| 2.08 | -65.00 | 1.05 | -65.00 | 9.85 | 243.02 | -8.68 | 59.06 | 0.1741 | 1042.0 | 999999 | |
| 13.54 | -65.00 | 6.81 | -65.00 | 9.70 | 242.68 | -9.01 | 60.74 | 0.1778 | 1123.5 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 6.09 | 242.58 | -9.11 | 81.47 | 0.1600 | 1034.0 | 768.1 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 4.49 | 241.61 | -10.09 | 91.29 | 0.1755 | 1055.0 | 810.3 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 9.46 | 240.85 | -10.84 | 65.94 | 0.2042 | 985.0 | 678.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
