SDO HMI 2011-10-28 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.44 | 140.18 | 23.59 | 71.31 | 14.74 | 243.22 | -8.47 | 38.83 | 0.2270 | -146.1 | -46.4 | |
|
previous
or next observation for the same group /

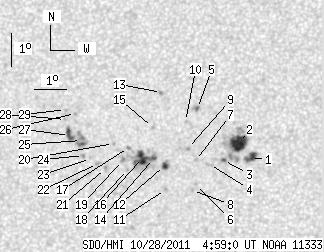

back to the solar disc SDO HMI 2011-10-28 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.60 | 8.77 | 3.33 | 4.43 | 14.51 | 245.65 | -6.04 | 31.06 | 0.1984 | -1036.7 | -695.1 | |
| 18.49 | 41.92 | 9.36 | 21.23 | 14.96 | 245.27 | -6.43 | 31.43 | 0.2083 | -1172.2 | -592.3 | |
| 1.30 | 1.82 | 0.66 | 0.92 | 14.41 | 244.82 | -6.87 | 34.67 | 0.2047 | -888.9 | -834.7 | |
| 0.00 | 2.86 | 0.00 | 1.45 | 14.28 | 244.39 | -7.30 | 36.66 | 0.2073 | -622.0 | -615.7 | |
| 1.39 | 2.69 | 0.71 | 1.37 | 15.97 | 243.96 | -7.74 | 33.63 | 0.2348 | -878.0 | -658.5 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 13.68 | 244.01 | -7.69 | 39.96 | 0.2033 | 677.0 | 570.6 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.40 | 243.95 | -7.74 | 37.90 | 0.2134 | -685.0 | -583.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.49 | 243.89 | -7.80 | 40.98 | 0.2023 | 853.0 | 643.7 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 14.76 | 243.69 | -8.00 | 37.76 | 0.2209 | 931.0 | 627.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 15.58 | 243.60 | -8.10 | 35.84 | 0.2328 | -684.0 | -583.3 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 13.51 | 243.06 | -8.64 | 43.76 | 0.2122 | 982.0 | 769.8 | |
| 3.30 | 4.86 | 1.67 | 2.47 | 14.24 | 243.00 | -8.70 | 41.62 | 0.2217 | 1072.6 | 746.7 | |
| 0.00 | 1.74 | 0.00 | 0.89 | 16.45 | 242.81 | -8.89 | 36.13 | 0.2524 | 1000.0 | 897.3 | |
| 2.00 | 33.41 | 1.02 | 17.01 | 14.44 | 242.65 | -9.05 | 42.09 | 0.2283 | 707.4 | -318.1 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 15.38 | 242.58 | -9.12 | 39.60 | 0.2409 | -915.0 | -688.9 | |
| 7.98 | -14.00 | 4.07 | -14.00 | 14.47 | 242.30 | -9.39 | 43.05 | 0.2325 | -1143.0 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 14.77 | 241.85 | -9.84 | 43.47 | 0.2414 | -842.0 | -609.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.10 | 241.85 | -9.84 | 45.51 | 0.2335 | 591.0 | 367.0 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 14.37 | 241.68 | -10.01 | 45.14 | 0.2387 | -872.0 | -601.9 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 14.88 | 241.38 | -10.32 | 44.45 | 0.2483 | 691.0 | 467.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 14.12 | 241.16 | -10.53 | 47.32 | 0.2422 | 1179.0 | 988.6 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 14.27 | 240.91 | -10.79 | 47.53 | 0.2471 | 1000.0 | 777.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 14.42 | 240.68 | -11.02 | 47.66 | 0.2515 | 692.0 | 594.3 | |
| 0.00 | 1.74 | 0.00 | 0.89 | 14.50 | 240.46 | -11.24 | 47.95 | 0.2553 | 1115.0 | 838.5 | |
| 0.00 | 10.50 | 0.00 | 5.39 | 14.96 | 240.37 | -11.33 | 46.83 | 0.2613 | 761.0 | 886.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 15.77 | 240.13 | -11.56 | 45.12 | 0.2734 | 1006.0 | 824.4 | |
| 5.38 | 7.12 | 2.77 | 3.66 | 15.10 | 239.98 | -11.71 | 47.34 | 0.2677 | 981.1 | 878.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 15.58 | 239.83 | -11.87 | 46.35 | 0.2749 | 869.0 | 659.4 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 15.89 | 239.81 | -11.88 | 45.58 | 0.2786 | 814.0 | 712.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
