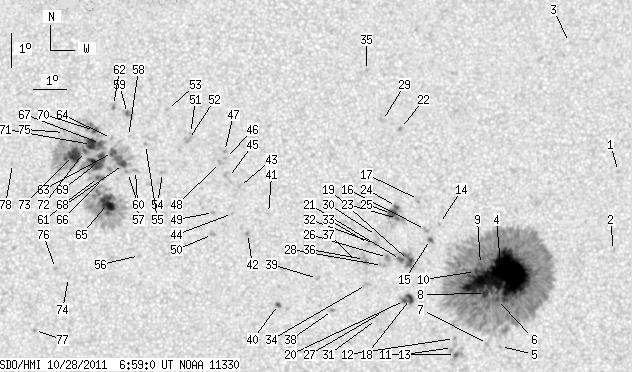

SDO HMI 2011-10-28 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 256.11 | 1336.73 | 127.59 | 666.04 | 7.12 | 251.79 | 1.19 | 224.59 | 0.1034 | -382.4 | -155.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.74 | 9.24 | 259.20 | 8.60 | 298.07 | 0.1680 | -934.0 | -671.9 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 6.89 | 259.00 | 8.40 | 284.55 | 0.1505 | -829.0 | -651.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.12 | 257.81 | 7.20 | 320.04 | 0.1910 | -585.0 | -452.3 | |
| 142.68 | 817.71 | 70.97 | 406.70 | 6.14 | 255.61 | 5.01 | 285.53 | 0.0905 | -1654.9 | -480.3 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 4.06 | 255.56 | 4.96 | 261.90 | 0.0875 | 820.0 | 709.0 | |
| 1.39 | -4.00 | 0.69 | -4.00 | 5.46 | 255.48 | 4.88 | 278.17 | 0.0860 | -1089.2 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.16 | 4.15 | 255.17 | 4.57 | 262.33 | 0.0806 | 385.0 | 378.3 | |
| 3.99 | -4.00 | 1.98 | -4.00 | 5.64 | 255.12 | 4.52 | 281.02 | 0.0803 | -1182.6 | 999999 | |
| 1.13 | -4.00 | 0.56 | -4.00 | 6.51 | 254.98 | 4.38 | 291.81 | 0.0821 | -1007.4 | 999999 | |
| 1.22 | -4.00 | 0.60 | -4.00 | 6.30 | 254.83 | 4.23 | 290.03 | 0.0783 | -1208.6 | 999999 | |
| 1.74 | 9.03 | 0.86 | 4.48 | 3.83 | 254.21 | 3.61 | 255.35 | 0.0653 | 981.2 | 615.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 4.31 | 254.19 | 3.58 | 262.59 | 0.0632 | -912.0 | -629.9 | |
| 0.00 | 3.99 | 0.00 | 1.98 | 4.04 | 254.12 | 3.52 | 258.21 | 0.0629 | 151.0 | 254.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 7.73 | 253.76 | 3.16 | 313.45 | 0.0755 | -723.0 | -615.9 | |
| 2.08 | 3.04 | 1.03 | 1.51 | 7.26 | 253.48 | 2.88 | 311.00 | 0.0664 | -1011.7 | -787.8 | |
| 0.00 | 2.95 | 0.00 | 1.46 | 7.56 | 253.33 | 2.73 | 315.76 | 0.0681 | -877.0 | -677.8 | |
| 0.00 | 3.21 | 0.00 | 1.60 | 8.45 | 253.13 | 2.53 | 325.77 | 0.0779 | 941.0 | 629.2 | |
| 4.17 | 9.98 | 2.07 | 4.95 | 5.50 | 252.87 | 2.27 | 287.81 | 0.0416 | -1165.2 | -892.9 | |
| 8.07 | 22.13 | 4.00 | 10.98 | 6.63 | 252.82 | 2.22 | 310.16 | 0.0505 | -1077.6 | -688.6 | |
| 2.08 | -18.00 | 1.03 | -18.00 | 5.44 | 252.69 | 2.09 | 287.75 | 0.0383 | -981.7 | 999999 | |
| 2.26 | -19.00 | 1.12 | -19.00 | 6.67 | 252.58 | 1.98 | 313.87 | 0.0478 | -1218.6 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 10.58 | 252.60 | 2.00 | 341.26 | 0.1072 | -1159.0 | -922.8 | |
| 1.13 | 23.09 | 0.56 | 11.46 | 7.89 | 252.49 | 1.89 | 328.91 | 0.0636 | 818.2 | 474.7 | |
| 2.00 | -23.00 | 0.99 | -23.00 | 8.25 | 252.47 | 1.86 | 331.98 | 0.0688 | 1001.9 | 999999 | |
| 5.81 | -23.00 | 2.89 | -23.00 | 8.04 | 252.31 | 1.71 | 332.50 | 0.0644 | 1144.0 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.51 | 6.73 | 252.19 | 1.59 | 321.01 | 0.0439 | -1159.0 | -995.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 5.12 | 252.07 | 1.46 | 283.10 | 0.0262 | -1009.0 | -809.7 | |
| 0.00 | 2.86 | 0.00 | 1.42 | 6.49 | 252.04 | 1.44 | 320.13 | 0.0390 | -897.0 | -804.7 | |
| 0.00 | 2.52 | 0.00 | 1.25 | 10.82 | 252.06 | 1.45 | 346.67 | 0.1086 | -845.0 | -645.8 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 7.38 | 251.86 | 1.26 | 334.36 | 0.0506 | -635.0 | -559.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 4.88 | 251.86 | 1.25 | 274.62 | 0.0220 | -662.0 | -459.3 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 7.14 | 251.80 | 1.20 | 333.30 | 0.0464 | -1062.0 | -969.9 | |
| 0.00 | 1.22 | 0.00 | 0.60 | 7.14 | 251.62 | 1.02 | 336.85 | 0.0451 | -908.0 | -729.7 | |
| 0.00 | 3.56 | 0.00 | 1.76 | 5.92 | 251.56 | 0.96 | 320.24 | 0.0261 | -817.0 | -652.7 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 12.32 | 251.58 | 0.97 | 352.79 | 0.1328 | -909.0 | -624.0 | |
| 0.00 | 6.60 | 0.00 | 3.27 | 6.67 | 251.50 | 0.90 | 334.72 | 0.0366 | -848.0 | -874.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 6.58 | 251.29 | 0.69 | 339.20 | 0.0337 | -695.0 | -545.8 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 5.15 | 250.54 | -0.06 | 9.45 | 0.0066 | 1001.0 | 801.1 | |
| 0.00 | 1.56 | 0.00 | 0.77 | 6.10 | 250.09 | -0.51 | 21.02 | 0.0248 | 1135.0 | 809.6 | |
| 1.82 | 2.26 | 0.90 | 1.12 | 5.33 | 248.93 | -1.68 | 71.84 | 0.0308 | 1119.9 | 887.4 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 8.04 | 248.62 | -1.99 | 31.13 | 0.0667 | 875.0 | 600.7 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 7.44 | 247.99 | -2.62 | 44.24 | 0.0652 | 1150.0 | 951.8 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 8.84 | 247.74 | -2.87 | 34.88 | 0.0868 | 870.0 | 673.8 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 8.03 | 247.53 | -3.07 | 43.01 | 0.0781 | 976.0 | 647.0 | |
| 0.00 | 5.12 | 0.00 | 2.55 | 9.11 | 247.40 | -3.20 | 36.11 | 0.0940 | 789.0 | 696.4 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 9.67 | 247.31 | -3.30 | 33.56 | 0.1030 | 875.0 | 673.5 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 9.88 | 247.27 | -3.33 | 32.71 | 0.1064 | 986.0 | 767.7 | |
| 0.00 | 3.12 | 0.00 | 1.56 | 9.55 | 247.16 | -3.45 | 35.42 | 0.1028 | 997.0 | 798.1 | |
| 0.00 | 1.48 | 0.00 | 0.73 | 8.06 | 246.96 | -3.64 | 47.64 | 0.0855 | 1093.0 | 807.9 | |
| 0.00 | 2.60 | 0.00 | 1.29 | 7.40 | 246.93 | -3.67 | 54.09 | 0.0787 | 976.0 | 784.5 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 10.42 | 246.24 | -4.37 | 37.26 | 0.1243 | 839.0 | 613.2 | |
| 0.00 | 4.60 | 0.00 | 2.30 | 10.24 | 246.18 | -4.42 | 38.54 | 0.1224 | 846.0 | 775.5 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 11.13 | 245.53 | -5.08 | 38.06 | 0.1415 | 869.0 | 663.0 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 9.24 | 245.40 | -5.20 | 48.84 | 0.1193 | 858.0 | 715.2 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 10.08 | 244.87 | -5.73 | 46.66 | 0.1357 | 849.0 | 602.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 6.76 | 244.74 | -5.86 | 70.94 | 0.1078 | 859.0 | 571.1 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 9.30 | 244.58 | -6.02 | 52.56 | 0.1309 | 988.0 | 681.9 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 10.31 | 244.35 | -6.25 | 47.87 | 0.1451 | 799.0 | 613.8 | |
| 1.74 | 6.51 | 0.87 | 3.26 | 11.00 | 244.31 | -6.29 | 44.68 | 0.1538 | 1037.3 | 834.8 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 9.23 | 244.34 | -6.26 | 54.01 | 0.1336 | 915.0 | 712.2 | |
| 3.12 | 226.08 | 1.56 | 113.37 | 9.47 | 244.22 | -6.39 | 53.11 | 0.1378 | 1118.6 | 531.1 | |
| 0.00 | 2.95 | 0.00 | 1.48 | 11.24 | 243.87 | -6.73 | 45.48 | 0.1619 | 908.0 | 780.4 | |
| 3.73 | -61.00 | 1.87 | -61.00 | 9.83 | 243.88 | -6.73 | 52.50 | 0.1462 | 1043.0 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 10.25 | 243.84 | -6.77 | 50.42 | 0.1511 | 803.0 | 599.2 | |
| 16.92 | 116.12 | 8.46 | 58.04 | 8.30 | 243.75 | -6.85 | 62.26 | 0.1340 | 1304.2 | 463.1 | |
| 0.26 | -61.00 | 0.13 | -61.00 | 9.05 | 243.59 | -7.02 | 58.11 | 0.1427 | 1209.7 | 999999 | |
| 2.95 | -61.00 | 1.48 | -61.00 | 10.09 | 243.50 | -7.10 | 52.53 | 0.1540 | 1054.2 | 999999 | |
| 2.08 | -61.00 | 1.04 | -61.00 | 9.08 | 243.46 | -7.14 | 58.37 | 0.1448 | 1018.2 | 999999 | |
| 17.44 | -61.00 | 8.74 | -61.00 | 9.52 | 243.43 | -7.18 | 55.92 | 0.1495 | 1239.6 | 999999 | |
| 2.52 | -61.00 | 1.26 | -61.00 | 10.48 | 243.31 | -7.29 | 51.29 | 0.1606 | 1083.5 | 999999 | |
| 7.64 | -61.00 | 3.83 | -61.00 | 10.06 | 243.23 | -7.37 | 53.72 | 0.1574 | 1161.2 | 999999 | |
| 1.56 | -61.00 | 0.78 | -61.00 | 9.85 | 243.02 | -7.58 | 55.57 | 0.1583 | 1079.2 | 999999 | |
| 14.58 | -61.00 | 7.32 | -61.00 | 9.73 | 242.69 | -7.91 | 57.33 | 0.1619 | 1096.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 6.09 | 242.61 | -7.99 | 80.32 | 0.1409 | 966.0 | 668.8 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 10.41 | 242.40 | -8.20 | 54.82 | 0.1725 | 712.0 | 568.8 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 6.35 | 242.21 | -8.39 | 78.97 | 0.1485 | 937.0 | 734.1 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 4.49 | 241.60 | -9.00 | 91.45 | 0.1567 | 972.0 | 714.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 9.46 | 240.83 | -9.77 | 63.67 | 0.1876 | 875.0 | 650.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
