SDO HMI 2011-10-28 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.32 | 75.73 | 7.90 | 48.45 | 31.11 | 217.33 | -31.08 | 44.23 | 0.6360 | -945.4 | -532.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

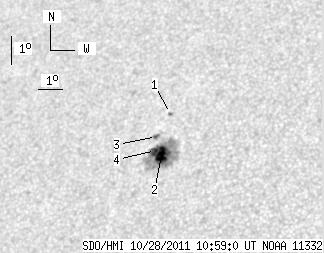

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.84 | 32.43 | 217.24 | -31.18 | 42.64 | 0.6474 | -641.0 | -472.6 | |
| 9.89 | 72.17 | 6.33 | 46.15 | 31.05 | 217.38 | -31.03 | 44.26 | 0.6351 | -1096.9 | -533.2 | |
| 1.82 | 2.26 | 1.18 | 1.46 | 31.64 | 216.96 | -31.45 | 43.84 | 0.6436 | -585.3 | -559.4 | |
| 0.61 | -2.00 | 0.39 | -2.00 | 31.18 | 217.10 | -31.32 | 44.33 | 0.6387 | -780.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
