SDO HMI 2011-10-28 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.20 | 117.60 | 19.75 | 59.39 | 14.81 | 243.11 | -4.21 | 21.13 | 0.1926 | -324.7 | 68.0 | |
|
previous
or next observation for the same group /

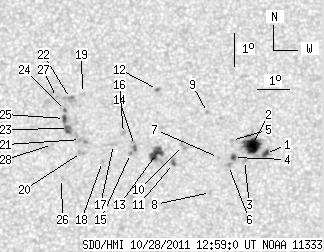

back to the solar disc SDO HMI 2011-10-28 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.04 | 36.77 | 1.53 | 18.50 | 14.48 | 246.06 | -1.26 | 7.19 | 0.1711 | -1005.2 | -560.9 | |
| 17.78 | -1.00 | 8.94 | -1.00 | 14.72 | 245.63 | -1.69 | 9.38 | 0.1763 | -1090.0 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 14.27 | 245.41 | -1.91 | 11.03 | 0.1692 | -896.0 | -724.6 | |
| 2.25 | 2.78 | 1.13 | 1.40 | 14.36 | 245.08 | -2.24 | 12.81 | 0.1719 | -934.7 | -712.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.87 | 245.01 | -2.31 | 12.51 | 0.1808 | -635.0 | -400.9 | |
| 0.00 | 3.04 | 0.00 | 1.53 | 14.12 | 244.92 | -2.40 | 13.99 | 0.1685 | -913.0 | -736.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.36 | 244.61 | -2.71 | 15.32 | 0.1738 | -815.0 | -599.5 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 13.30 | 244.38 | -2.94 | 18.55 | 0.1576 | 869.0 | 641.9 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 15.72 | 244.26 | -3.06 | 15.13 | 0.1980 | -995.0 | -690.8 | |
| 0.00 | 4.16 | 0.00 | 2.10 | 14.71 | 243.53 | -3.79 | 20.26 | 0.1854 | 762.0 | 714.9 | |
| 1.39 | 2.34 | 0.70 | 1.18 | 14.17 | 243.23 | -4.09 | 22.88 | 0.1786 | 890.8 | 870.6 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.41 | 242.69 | -4.63 | 20.95 | 0.2175 | 1072.0 | 875.0 | |
| 11.10 | 15.96 | 5.60 | 8.04 | 14.47 | 242.70 | -4.62 | 24.76 | 0.1869 | -996.8 | -517.3 | |
| 0.00 | 3.56 | 0.00 | 1.80 | 14.70 | 242.02 | -5.30 | 27.30 | 0.1957 | -887.0 | -732.5 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 14.46 | 241.90 | -5.42 | 28.42 | 0.1930 | -957.0 | -733.6 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 15.06 | 241.67 | -5.65 | 27.93 | 0.2040 | -856.0 | -590.8 | |
| 0.00 | 3.21 | 0.00 | 1.62 | 14.73 | 241.37 | -5.95 | 30.01 | 0.2015 | 340.0 | 218.9 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 14.21 | 241.04 | -6.28 | 32.75 | 0.1969 | 883.0 | 625.2 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 16.27 | 240.36 | -6.96 | 30.18 | 0.2326 | 654.0 | 559.1 | |
| 0.00 | 3.38 | 0.00 | 1.71 | 14.48 | 240.38 | -6.94 | 34.60 | 0.2069 | 824.0 | 681.8 | |
| 0.00 | 6.68 | 0.00 | 3.38 | 14.87 | 240.34 | -6.98 | 33.67 | 0.2128 | 1023.0 | 769.7 | |
| 0.00 | 6.42 | 0.00 | 3.27 | 16.11 | 239.99 | -7.33 | 31.83 | 0.2336 | 871.0 | 725.2 | |
| 0.00 | 5.72 | 0.00 | 2.91 | 15.20 | 239.96 | -7.36 | 34.20 | 0.2210 | 1076.0 | 956.9 | |
| 1.13 | 1.21 | 0.57 | 0.62 | 15.74 | 239.84 | -7.48 | 33.21 | 0.2297 | 787.0 | 812.5 | |
| 2.51 | 3.30 | 1.28 | 1.68 | 15.50 | 239.82 | -7.50 | 33.90 | 0.2265 | 925.2 | 888.0 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.69 | 239.79 | -7.53 | 39.22 | 0.2023 | -634.0 | -585.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 16.14 | 239.55 | -7.77 | 33.26 | 0.2380 | 736.0 | 635.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.71 | 239.48 | -7.84 | 37.24 | 0.2191 | 911.0 | 641.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
