SDO HMI 2011-10-28 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.78 | 98.47 | 14.49 | 49.62 | 15.04 | 242.80 | -0.67 | 2.75 | 0.1851 | -226.5 | 158.1 | |
|
previous
or next observation for the same group /

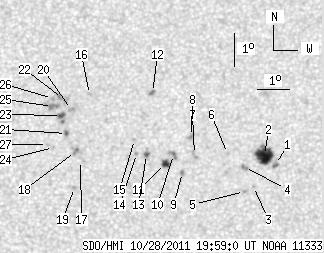

back to the solar disc SDO HMI 2011-10-28 19:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.73 | 0.00 | 1.87 | 14.34 | 246.35 | 2.89 | 343.70 | 0.1746 | -1131.0 | -761.3 | |
| 18.90 | 23.75 | 9.51 | 11.95 | 14.62 | 246.01 | 2.55 | 345.90 | 0.1777 | -1143.6 | -703.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.68 | 245.67 | 2.20 | 346.48 | 0.1606 | -868.0 | -642.2 | |
| 0.00 | 2.86 | 0.00 | 1.44 | 14.26 | 245.39 | 1.93 | 348.81 | 0.1693 | -1165.0 | -935.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 13.53 | 245.39 | 1.93 | 347.92 | 0.1570 | 776.0 | 517.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 14.68 | 244.88 | 1.41 | 352.13 | 0.1750 | -837.0 | -596.8 | |
| 0.00 | 3.38 | 0.00 | 1.70 | 14.65 | 243.86 | 0.40 | 357.76 | 0.1730 | 844.0 | 722.2 | |
| 0.00 | 3.38 | 0.00 | 1.70 | 15.20 | 243.77 | 0.31 | 358.37 | 0.1823 | -1178.0 | -848.5 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 14.11 | 243.49 | 0.03 | 359.83 | 0.1634 | 1137.0 | 839.8 | |
| 0.00 | 4.16 | 0.00 | 2.09 | 14.65 | 243.21 | -0.25 | 1.39 | 0.1729 | -1032.0 | -896.9 | |
| 3.99 | 5.55 | 2.00 | 2.79 | 14.38 | 242.97 | -0.49 | 2.85 | 0.1683 | -1129.0 | -858.8 | |
| 0.00 | 2.60 | 0.00 | 1.32 | 16.53 | 242.56 | -0.90 | 4.23 | 0.2057 | 1064.0 | 817.0 | |
| 2.08 | 3.81 | 1.05 | 1.92 | 14.65 | 242.38 | -1.08 | 6.04 | 0.1738 | -1052.3 | -706.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 14.68 | 242.08 | -1.39 | 7.72 | 0.1749 | -874.0 | -620.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 15.10 | 242.01 | -1.45 | 7.74 | 0.1823 | -668.0 | -440.2 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 16.47 | 240.60 | -2.86 | 13.24 | 0.2097 | 806.0 | 678.2 | |
| 0.00 | 0.35 | 0.00 | 0.17 | 14.46 | 240.35 | -3.11 | 17.26 | 0.1777 | 77.0 | 259.8 | |
| 0.00 | 6.24 | 0.00 | 3.14 | 14.74 | 240.20 | -3.27 | 17.61 | 0.1830 | 1052.0 | 786.3 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.65 | 240.18 | -3.28 | 19.75 | 0.1653 | -896.0 | -709.1 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 16.01 | 240.05 | -3.41 | 16.31 | 0.2045 | 1107.0 | 924.7 | |
| 0.69 | 1.99 | 0.35 | 1.01 | 15.28 | 239.91 | -3.55 | 18.09 | 0.1933 | 1083.0 | 873.9 | |
| 0.00 | 6.67 | 0.00 | 3.38 | 16.34 | 239.77 | -3.70 | 17.09 | 0.2114 | 944.0 | 801.4 | |
| 3.12 | 5.55 | 1.58 | 2.81 | 15.82 | 239.75 | -3.72 | 17.97 | 0.2031 | 1004.5 | 721.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.85 | 239.52 | -3.95 | 20.74 | 0.1887 | 744.0 | 549.8 | |
| 0.00 | 7.54 | 0.00 | 3.82 | 16.10 | 239.46 | -4.00 | 18.80 | 0.2090 | 1081.0 | 857.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 16.34 | 239.46 | -4.01 | 18.43 | 0.2130 | 777.0 | 656.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 14.94 | 239.33 | -4.13 | 21.45 | 0.1913 | 940.0 | 742.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
