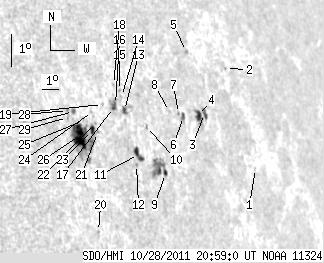

SDO HMI 2011-10-28 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.83 | 135.28 | 48.36 | 127.10 | 12.66 | 301.30 | 58.39 | 281.99 | 0.8505 | 262.1 | -7.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 20:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.94 | 11.04 | 309.09 | 66.18 | 279.98 | 0.9134 | -389.0 | -290.8 | |
| 0.00 | 0.69 | 0.00 | 0.82 | 14.13 | 308.38 | 65.47 | 283.39 | 0.9087 | -367.0 | -283.0 | |
| 3.03 | 14.13 | 3.31 | 15.28 | 12.92 | 306.26 | 63.35 | 282.09 | 0.8928 | -291.6 | -448.2 | |
| 4.33 | -3.00 | 4.66 | -3.00 | 12.89 | 305.84 | 62.93 | 282.07 | 0.8895 | -643.9 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.69 | 14.83 | 305.97 | 63.06 | 284.25 | 0.8910 | -578.0 | -499.9 | |
| 2.43 | 3.99 | 2.53 | 4.15 | 12.93 | 304.85 | 61.94 | 282.14 | 0.8818 | -541.2 | -495.1 | |
| 0.00 | 0.95 | 0.00 | 0.99 | 13.04 | 304.58 | 61.67 | 282.27 | 0.8795 | -627.0 | -552.9 | |
| 0.00 | 0.95 | 0.00 | 0.97 | 13.14 | 304.04 | 61.13 | 282.41 | 0.8752 | -392.0 | -426.7 | |
| 2.17 | 20.63 | 2.14 | 20.16 | 11.32 | 303.08 | 60.17 | 280.35 | 0.8667 | -371.2 | -393.8 | |
| 0.00 | 1.21 | 0.00 | 1.18 | 12.79 | 302.46 | 59.56 | 282.07 | 0.8618 | 270.0 | 248.6 | |
| 5.89 | 7.28 | 5.59 | 6.90 | 12.00 | 301.69 | 58.78 | 281.17 | 0.8548 | 448.5 | 350.8 | |
| 0.00 | 1.04 | 0.00 | 0.98 | 11.71 | 301.47 | 58.56 | 280.84 | 0.8527 | -417.0 | -362.7 | |
| 2.60 | 5.37 | 2.45 | 5.08 | 13.35 | 301.37 | 58.46 | 282.78 | 0.8524 | 455.5 | -53.2 | |
| 0.00 | 0.61 | 0.00 | 0.57 | 13.78 | 301.36 | 58.45 | 283.28 | 0.8525 | 160.0 | 141.0 | |
| 0.00 | 1.04 | 0.00 | 0.98 | 13.97 | 301.32 | 58.41 | 283.50 | 0.8522 | 201.0 | 175.4 | |
| 1.39 | 6.76 | 1.29 | 6.27 | 13.57 | 300.92 | 58.01 | 283.06 | 0.8485 | 370.8 | 251.7 | |
| 1.73 | -16.00 | 1.60 | -16.00 | 13.49 | 300.77 | 57.87 | 282.97 | 0.8471 | -194.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.97 | 14.17 | 301.05 | 58.14 | 283.76 | 0.8499 | 420.0 | 348.7 | |
| 0.00 | 0.43 | 0.00 | 0.40 | 13.62 | 300.19 | 57.28 | 283.16 | 0.8419 | 265.0 | 305.0 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 9.87 | 298.78 | 55.87 | 278.72 | 0.8272 | 604.0 | 532.5 | |
| 0.00 | 1.30 | 0.00 | 1.17 | 12.81 | 299.61 | 56.70 | 282.23 | 0.8361 | 73.0 | 33.4 | |
| 0.00 | 1.21 | 0.00 | 1.09 | 13.08 | 299.60 | 56.69 | 282.56 | 0.8361 | 197.0 | 147.0 | |
| 3.21 | 55.13 | 2.86 | 48.45 | 12.88 | 299.36 | 56.45 | 282.33 | 0.8338 | 321.9 | 284.8 | |
| 0.00 | 0.69 | 0.00 | 0.62 | 13.45 | 299.56 | 56.65 | 283.00 | 0.8360 | 366.0 | 322.1 | |
| 0.00 | 2.34 | 0.00 | 2.07 | 13.21 | 298.98 | 56.07 | 282.76 | 0.8304 | 440.0 | 391.8 | |
| 24.62 | -23.00 | 21.55 | -23.00 | 12.78 | 298.61 | 55.70 | 282.26 | 0.8266 | 772.0 | 999999 | |
| 0.43 | 2.43 | 0.38 | 2.12 | 13.52 | 298.54 | 55.63 | 283.15 | 0.8263 | 630.6 | 560.5 | |
| 0.00 | 1.30 | 0.00 | 1.13 | 13.57 | 298.23 | 55.32 | 283.24 | 0.8234 | 612.0 | 605.5 | |
| 0.00 | 1.47 | 0.00 | 1.28 | 13.36 | 298.15 | 55.25 | 282.99 | 0.8226 | 726.0 | 700.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
