SDO HMI 2011-10-28 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.07 | 92.75 | 16.15 | 46.72 | 15.00 | 242.99 | 0.63 | 356.07 | 0.1848 | -334.8 | 103.7 | |
|
previous
or next observation for the same group /

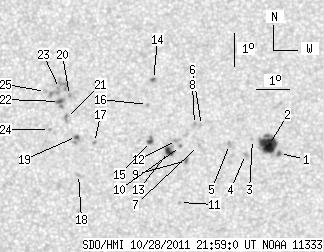

back to the solar disc SDO HMI 2011-10-28 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.47 | 2.17 | 0.74 | 1.09 | 14.31 | 246.44 | 4.09 | 337.45 | 0.1810 | -894.6 | -787.0 | |
| 18.03 | 26.18 | 9.08 | 13.19 | 14.55 | 246.11 | 3.75 | 339.62 | 0.1828 | -1142.4 | -677.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.73 | 245.62 | 3.26 | 342.41 | 0.1830 | -610.0 | -497.5 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 14.28 | 245.40 | 3.04 | 342.78 | 0.1744 | -1101.0 | -866.7 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 14.59 | 244.91 | 2.55 | 345.86 | 0.1772 | -853.0 | -702.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 15.16 | 244.05 | 1.70 | 351.03 | 0.1840 | -710.0 | -617.2 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 14.56 | 243.96 | 1.60 | 351.00 | 0.1734 | 717.0 | 618.6 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 15.19 | 243.84 | 1.48 | 352.18 | 0.1840 | -1054.0 | -826.7 | |
| 1.13 | 2.25 | 0.57 | 1.13 | 14.11 | 243.58 | 1.23 | 352.73 | 0.1648 | 726.2 | 599.7 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 14.53 | 243.40 | 1.04 | 354.07 | 0.1717 | -803.0 | -721.0 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 12.84 | 243.36 | 1.01 | 353.07 | 0.1426 | 772.0 | 580.6 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 14.71 | 243.28 | 0.92 | 354.86 | 0.1746 | -991.0 | -772.9 | |
| 4.85 | 9.10 | 2.44 | 4.57 | 14.38 | 243.03 | 0.68 | 356.10 | 0.1686 | -1084.0 | -743.5 | |
| 1.56 | 1.82 | 0.79 | 0.92 | 16.56 | 242.57 | 0.22 | 358.99 | 0.2058 | 889.9 | 776.2 | |
| 1.91 | 3.47 | 0.96 | 1.74 | 14.68 | 242.48 | 0.12 | 359.32 | 0.1734 | -964.5 | -783.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.80 | 242.39 | 0.03 | 359.85 | 0.1927 | 956.0 | 775.1 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 14.65 | 240.76 | -1.60 | 8.93 | 0.1750 | 878.0 | 622.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.68 | 240.27 | -2.08 | 12.81 | 0.1602 | -857.0 | -600.9 | |
| 1.30 | 3.81 | 0.65 | 1.92 | 14.83 | 240.20 | -2.16 | 11.73 | 0.1798 | 947.7 | 789.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 16.07 | 239.97 | -2.39 | 11.51 | 0.2015 | 1145.0 | 962.0 | |
| 0.00 | 3.12 | 0.00 | 1.57 | 15.37 | 239.89 | -2.47 | 12.70 | 0.1900 | 900.0 | 678.2 | |
| 1.82 | 5.72 | 0.92 | 2.89 | 15.89 | 239.66 | -2.69 | 13.16 | 0.1995 | 1066.8 | 877.7 | |
| 0.00 | 13.26 | 0.00 | 6.71 | 16.28 | 239.66 | -2.70 | 12.73 | 0.2061 | 806.0 | 828.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 15.04 | 239.37 | -2.99 | 15.74 | 0.1867 | 818.0 | 618.9 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 16.19 | 239.22 | -3.13 | 14.80 | 0.2063 | 778.0 | 587.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
