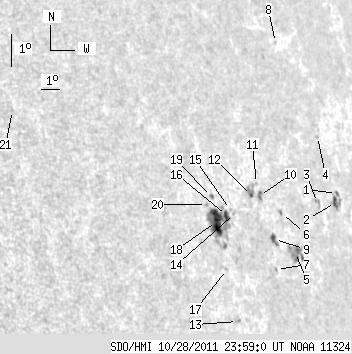

SDO HMI 2011-10-28 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.77 | 125.56 | 35.76 | 122.87 | 12.69 | 301.06 | 59.81 | 281.98 | 0.8629 | 267.7 | 28.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-28 23:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.47 | 12.92 | 1.71 | 14.94 | 13.08 | 306.42 | 65.16 | 282.24 | 0.9063 | -294.9 | -369.1 | |
| 4.60 | -1.00 | 5.29 | -1.00 | 12.82 | 306.21 | 64.96 | 281.96 | 0.9048 | -608.7 | 999999 | |
| 0.00 | 4.16 | 0.00 | 4.60 | 12.91 | 304.97 | 63.72 | 282.08 | 0.8956 | -616.0 | -476.3 | |
| 0.00 | 1.04 | 0.00 | 1.19 | 14.86 | 305.98 | 64.73 | 284.22 | 0.9035 | -534.0 | -472.2 | |
| 0.00 | 18.30 | 0.00 | 18.89 | 11.54 | 302.92 | 61.66 | 280.58 | 0.8793 | -624.0 | -382.3 | |
| 0.95 | 2.17 | 0.97 | 2.21 | 12.76 | 302.50 | 61.25 | 281.97 | 0.8761 | 260.4 | 290.3 | |
| 0.00 | 1.13 | 0.00 | 1.12 | 11.12 | 301.56 | 60.31 | 280.12 | 0.8679 | -557.0 | -486.1 | |
| 0.00 | 1.13 | 0.00 | 1.25 | 17.85 | 304.79 | 63.53 | 287.61 | 0.8959 | -458.0 | -387.6 | |
| 4.60 | 6.16 | 4.58 | 6.13 | 12.02 | 301.77 | 60.51 | 281.15 | 0.8698 | 520.1 | 303.3 | |
| 1.47 | 3.73 | 1.46 | 3.68 | 13.38 | 301.38 | 60.12 | 282.74 | 0.8669 | 472.2 | 338.3 | |
| 0.00 | 0.78 | 0.00 | 0.77 | 13.75 | 301.35 | 60.09 | 283.17 | 0.8667 | 191.0 | 152.6 | |
| 1.04 | 7.46 | 1.01 | 7.26 | 13.42 | 300.90 | 59.64 | 282.80 | 0.8628 | -378.2 | 19.5 | |
| 0.00 | 2.08 | 0.00 | 1.91 | 9.74 | 298.83 | 57.58 | 278.55 | 0.8434 | 424.0 | 392.8 | |
| 0.00 | 1.73 | 0.00 | 1.63 | 12.95 | 299.70 | 58.44 | 282.32 | 0.8521 | 39.0 | 27.9 | |
| 0.00 | 0.78 | 0.00 | 0.73 | 13.09 | 299.51 | 58.26 | 282.48 | 0.8505 | 268.0 | 197.3 | |
| 4.34 | 56.36 | 4.03 | 51.62 | 12.93 | 299.22 | 57.96 | 282.31 | 0.8478 | 373.2 | 382.9 | |
| 0.00 | 1.21 | 0.00 | 1.11 | 11.33 | 298.67 | 57.42 | 280.43 | 0.8422 | 510.0 | 418.6 | |
| 17.78 | -16.00 | 16.23 | -16.00 | 12.79 | 298.59 | 57.34 | 282.18 | 0.8420 | 772.6 | 999999 | |
| 0.52 | 1.82 | 0.48 | 1.66 | 13.55 | 298.59 | 57.33 | 283.08 | 0.8423 | 553.8 | 486.4 | |
| 0.00 | 1.39 | 0.00 | 1.26 | 13.33 | 298.22 | 56.97 | 282.84 | 0.8389 | 739.0 | 693.7 | |
| 0.00 | 1.21 | 0.00 | 0.91 | 16.76 | 289.51 | 48.25 | 288.19 | 0.7543 | -409.0 | -347.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
