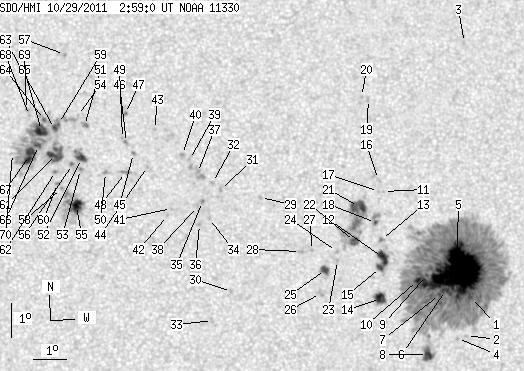

SDO HMI 2011-10-29 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 262.96 | 1254.97 | 134.22 | 641.37 | 6.75 | 252.92 | 13.32 | 284.43 | 0.2389 | -400.5 | -209.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 02:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.21 | 866.41 | 0.63 | 446.27 | 5.24 | 256.06 | 16.46 | 272.56 | 0.2837 | -940.2 | -439.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 4.12 | 255.88 | 16.28 | 268.54 | 0.2809 | 674.0 | 526.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 12.87 | 256.21 | 16.60 | 297.52 | 0.3155 | -725.0 | -594.7 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 4.03 | 255.60 | 16.00 | 268.19 | 0.2763 | 616.0 | 526.2 | |
| 143.64 | -1.00 | 74.02 | -1.00 | 6.03 | 255.62 | 16.02 | 275.44 | 0.2769 | -1573.4 | 999999 | |
| 3.38 | -1.00 | 1.74 | -1.00 | 5.47 | 255.26 | 15.66 | 273.46 | 0.2704 | -1150.4 | 999999 | |
| 1.04 | -1.00 | 0.53 | -1.00 | 5.36 | 255.07 | 15.47 | 273.06 | 0.2671 | -1018.7 | 999999 | |
| 8.15 | -1.00 | 4.18 | -1.00 | 3.58 | 254.66 | 15.06 | 266.25 | 0.2610 | 854.4 | 999999 | |
| 1.13 | -1.00 | 0.58 | -1.00 | 5.93 | 254.68 | 15.08 | 275.31 | 0.2611 | -1056.6 | 999999 | |
| 2.60 | -1.00 | 1.33 | -1.00 | 5.79 | 254.40 | 14.80 | 274.82 | 0.2562 | -1426.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 8.46 | 253.43 | 13.83 | 285.98 | 0.2470 | 555.0 | 413.2 | |
| 8.07 | 15.96 | 4.11 | 8.14 | 6.49 | 253.34 | 13.73 | 278.06 | 0.2393 | -1125.5 | -964.6 | |
| 0.00 | 2.60 | 0.00 | 1.33 | 7.03 | 253.32 | 13.72 | 280.29 | 0.2403 | -951.0 | -752.3 | |
| 7.89 | 11.02 | 4.02 | 5.61 | 5.27 | 253.25 | 13.64 | 272.95 | 0.2363 | -1091.9 | -800.7 | |
| 3.38 | -12.00 | 1.72 | -12.00 | 6.20 | 253.27 | 13.67 | 276.85 | 0.2376 | -1094.6 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 8.82 | 253.29 | 13.69 | 287.55 | 0.2464 | 2.0 | -89.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 8.46 | 253.28 | 13.67 | 286.15 | 0.2445 | 741.0 | 562.4 | |
| 0.87 | 6.07 | 0.44 | 3.10 | 7.54 | 253.15 | 13.55 | 282.52 | 0.2390 | -718.5 | -84.5 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 11.22 | 253.08 | 13.48 | 296.80 | 0.2573 | -747.0 | -626.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 11.31 | 252.87 | 13.27 | 297.49 | 0.2548 | -779.0 | -632.8 | |
| 13.01 | 65.57 | 6.62 | 33.35 | 8.03 | 252.65 | 13.04 | 285.01 | 0.2324 | 1042.8 | -110.2 | |
| 4.08 | -21.00 | 2.07 | -21.00 | 6.99 | 252.49 | 12.89 | 280.67 | 0.2263 | -1077.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 6.43 | 251.95 | 12.35 | 278.52 | 0.2159 | -925.0 | -646.1 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 6.70 | 251.93 | 12.32 | 279.77 | 0.2161 | -851.0 | -731.9 | |
| 5.03 | 6.33 | 2.55 | 3.21 | 6.17 | 251.58 | 11.97 | 277.50 | 0.2090 | -1044.1 | -882.2 | |
| 0.00 | 3.38 | 0.00 | 1.71 | 5.46 | 251.41 | 11.81 | 274.13 | 0.2052 | -836.0 | -645.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 6.74 | 251.19 | 11.59 | 280.52 | 0.2039 | -770.0 | -633.0 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 6.72 | 250.83 | 11.22 | 280.70 | 0.1976 | -900.0 | -757.9 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 8.34 | 249.64 | 10.04 | 290.52 | 0.1850 | -803.0 | -639.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 5.56 | 248.71 | 9.10 | 275.71 | 0.1589 | 933.0 | 691.5 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 8.60 | 248.43 | 8.83 | 294.37 | 0.1673 | 855.0 | 642.3 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.81 | 248.19 | 8.59 | 296.12 | 0.1651 | 873.0 | 699.1 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 4.70 | 248.12 | 8.51 | 270.26 | 0.1482 | 783.0 | 662.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 7.74 | 248.08 | 8.47 | 290.18 | 0.1563 | 747.0 | 585.4 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 8.25 | 247.87 | 8.27 | 293.70 | 0.1562 | 1101.0 | 910.0 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 7.56 | 247.77 | 8.17 | 289.75 | 0.1503 | 964.0 | 771.5 | |
| 0.00 | 10.76 | 0.00 | 5.40 | 9.12 | 247.74 | 8.14 | 299.03 | 0.1606 | 976.0 | 784.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 8.10 | 247.72 | 8.12 | 293.20 | 0.1528 | 819.0 | 700.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 9.51 | 247.51 | 7.90 | 301.87 | 0.1604 | 877.0 | 713.0 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 9.66 | 247.30 | 7.69 | 303.37 | 0.1588 | 1001.0 | 762.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 8.05 | 246.93 | 7.33 | 294.99 | 0.1399 | 908.0 | 692.5 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 7.84 | 246.81 | 7.20 | 293.97 | 0.1365 | 787.0 | 628.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.41 | 246.46 | 6.86 | 310.39 | 0.1549 | 928.0 | 767.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 9.31 | 246.23 | 6.62 | 305.34 | 0.1401 | -794.0 | -631.4 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 9.70 | 245.81 | 6.20 | 309.38 | 0.1384 | 1032.0 | 786.1 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 10.03 | 245.60 | 6.00 | 312.16 | 0.1394 | 1031.0 | 797.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.90 | 245.59 | 5.98 | 316.60 | 0.1496 | 1034.0 | 810.7 | |
| 0.00 | 3.64 | 0.00 | 1.82 | 9.14 | 245.55 | 5.95 | 307.15 | 0.1290 | 879.0 | 676.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.15 | 245.48 | 5.88 | 313.37 | 0.1393 | 898.0 | 795.8 | |
| 0.00 | 2.52 | 0.00 | 1.26 | 9.14 | 244.95 | 5.34 | 310.15 | 0.1209 | 1060.0 | 766.5 | |
| 0.00 | 3.38 | 0.00 | 1.69 | 10.55 | 244.33 | 4.73 | 321.52 | 0.1309 | 1089.0 | 886.5 | |
| 5.20 | 10.41 | 2.60 | 5.19 | 9.56 | 244.23 | 4.62 | 316.86 | 0.1168 | 990.0 | 675.2 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 9.24 | 244.19 | 4.59 | 315.05 | 0.1123 | 1046.0 | 878.5 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 10.85 | 244.13 | 4.52 | 324.16 | 0.1328 | 599.0 | 518.3 | |
| 9.71 | 37.99 | 4.84 | 18.91 | 8.16 | 244.06 | 4.46 | 308.16 | 0.0982 | 1279.4 | 730.2 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 9.39 | 243.95 | 4.35 | 317.53 | 0.1113 | 1192.0 | 1073.5 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.68 | 243.76 | 4.15 | 333.03 | 0.1565 | 779.0 | 661.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 8.67 | 243.61 | 4.01 | 315.06 | 0.0983 | 1019.0 | 894.4 | |
| 1.04 | 150.40 | 0.52 | 74.95 | 10.62 | 243.54 | 3.94 | 326.75 | 0.1238 | 896.0 | 600.0 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 8.82 | 243.49 | 3.89 | 316.99 | 0.0987 | 1086.0 | 793.9 | |
| 14.14 | -59.00 | 7.05 | -59.00 | 9.69 | 243.47 | 3.87 | 322.58 | 0.1099 | 1112.8 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 9.18 | 243.44 | 3.83 | 319.80 | 0.1027 | 1112.0 | 882.7 | |
| 2.60 | -59.00 | 1.30 | -59.00 | 10.47 | 243.42 | 3.82 | 326.90 | 0.1204 | 1113.5 | 999999 | |
| 1.47 | -59.00 | 0.74 | -59.00 | 10.74 | 243.12 | 3.52 | 330.17 | 0.1217 | 921.8 | 999999 | |
| 10.58 | -59.00 | 5.28 | -59.00 | 10.41 | 243.03 | 3.42 | 329.43 | 0.1160 | 1105.7 | 999999 | |
| 3.12 | -59.00 | 1.56 | -59.00 | 9.96 | 242.93 | 3.33 | 328.04 | 0.1085 | 1236.4 | 999999 | |
| 11.62 | -59.00 | 5.79 | -59.00 | 9.66 | 242.66 | 3.05 | 328.73 | 0.1016 | 1189.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 10.86 | 242.67 | 3.06 | 333.92 | 0.1199 | 805.0 | 559.3 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 11.04 | 242.58 | 2.97 | 335.22 | 0.1220 | 775.0 | 621.1 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.72 | 242.14 | 2.54 | 333.48 | 0.0982 | 131.0 | 122.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
