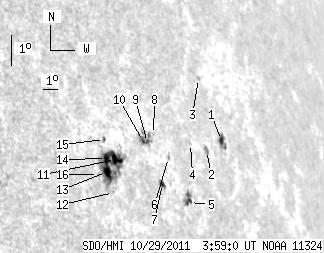

SDO HMI 2011-10-29 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.34 | 105.46 | 29.55 | 109.38 | 12.80 | 300.79 | 61.73 | 282.04 | 0.8791 | 219.2 | 113.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.99 | 8.24 | 5.07 | 10.49 | 12.99 | 306.58 | 67.53 | 282.13 | 0.9226 | -528.8 | -375.8 | |
| 0.00 | 3.12 | 0.00 | 3.78 | 12.78 | 305.29 | 66.23 | 281.91 | 0.9139 | -569.0 | -469.6 | |
| 0.00 | 1.13 | 0.00 | 1.40 | 14.94 | 305.90 | 66.85 | 284.26 | 0.9183 | -252.0 | -321.1 | |
| 0.00 | 0.78 | 0.00 | 0.91 | 13.07 | 304.24 | 65.18 | 282.24 | 0.9065 | -432.0 | -446.9 | |
| 2.43 | 8.67 | 2.73 | 9.75 | 11.34 | 303.36 | 64.31 | 280.34 | 0.8999 | -468.1 | -471.0 | |
| 0.00 | 1.56 | 0.00 | 1.71 | 12.77 | 302.52 | 63.47 | 281.94 | 0.8937 | 214.0 | 135.4 | |
| 2.34 | 3.90 | 2.50 | 4.17 | 12.03 | 301.79 | 62.74 | 281.13 | 0.8879 | 483.4 | 408.9 | |
| 0.00 | 0.69 | 0.00 | 0.74 | 13.52 | 301.85 | 62.79 | 282.81 | 0.8887 | -324.0 | -311.0 | |
| 1.04 | 13.18 | 1.10 | 13.87 | 13.31 | 301.35 | 62.29 | 282.59 | 0.8847 | 429.4 | 138.9 | |
| 0.69 | -9.00 | 0.73 | -9.00 | 13.36 | 301.10 | 62.05 | 282.65 | 0.8828 | -290.5 | 999999 | |
| 5.72 | 60.55 | 5.65 | 59.04 | 12.95 | 299.14 | 60.09 | 282.25 | 0.8665 | 404.7 | 320.6 | |
| 0.00 | 0.78 | 0.00 | 0.76 | 11.98 | 298.65 | 59.59 | 281.15 | 0.8619 | 324.0 | 307.7 | |
| 5.72 | -11.00 | 5.54 | -11.00 | 12.63 | 298.53 | 59.47 | 281.91 | 0.8611 | 737.9 | 999999 | |
| 5.20 | -11.00 | 5.05 | -11.00 | 13.02 | 298.62 | 59.56 | 282.35 | 0.8620 | 826.4 | 999999 | |
| 1.21 | 1.47 | 1.18 | 1.44 | 13.59 | 298.73 | 59.67 | 283.01 | 0.8631 | 406.6 | 414.0 | |
| 0.00 | 1.39 | 0.00 | 1.32 | 12.58 | 297.97 | 58.91 | 281.87 | 0.8561 | 513.0 | 473.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
