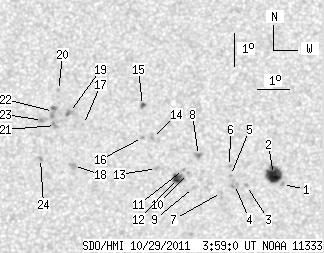

SDO HMI 2011-10-29 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.19 | 79.25 | 13.25 | 40.05 | 15.01 | 243.33 | 4.27 | 338.39 | 0.1992 | -315.1 | 85.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.79 | 14.19 | 246.63 | 7.58 | 322.30 | 0.2100 | -1017.0 | -779.2 | |
| 17.78 | 19.95 | 9.01 | 10.11 | 14.49 | 246.36 | 7.31 | 324.17 | 0.2114 | -1082.3 | -703.7 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 14.17 | 245.52 | 6.46 | 326.50 | 0.1986 | -1023.0 | -767.5 | |
| 0.00 | 5.81 | 0.00 | 2.93 | 14.20 | 245.15 | 6.09 | 328.12 | 0.1957 | -503.0 | -789.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.47 | 245.03 | 5.98 | 329.34 | 0.1986 | -899.0 | -682.4 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 14.75 | 245.01 | 5.95 | 330.15 | 0.2024 | -842.0 | -652.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.96 | 244.74 | 5.68 | 329.20 | 0.1886 | 476.0 | 376.9 | |
| 0.00 | 3.30 | 0.00 | 1.67 | 15.09 | 244.06 | 5.00 | 334.99 | 0.2000 | -1206.0 | -877.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 14.12 | 243.88 | 4.83 | 333.53 | 0.1839 | 886.0 | 623.3 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 14.54 | 243.74 | 4.68 | 335.22 | 0.1893 | -949.0 | -710.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 14.67 | 243.58 | 4.53 | 336.20 | 0.1902 | -880.0 | -688.9 | |
| 6.85 | 8.76 | 3.45 | 4.41 | 14.39 | 243.39 | 4.34 | 336.50 | 0.1846 | -1053.5 | -711.0 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 14.70 | 242.75 | 3.70 | 340.25 | 0.1854 | -1133.0 | -789.5 | |
| 0.00 | 2.86 | 0.00 | 1.45 | 15.64 | 242.64 | 3.59 | 342.38 | 0.2001 | 849.0 | 633.2 | |
| 1.56 | 1.73 | 0.79 | 0.88 | 16.61 | 242.35 | 3.30 | 345.06 | 0.2147 | 736.7 | 351.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.64 | 242.33 | 3.28 | 343.82 | 0.1986 | 979.0 | 724.3 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 16.04 | 240.51 | 1.46 | 352.92 | 0.1990 | 700.0 | 583.1 | |
| 0.00 | 4.08 | 0.00 | 2.05 | 14.80 | 240.20 | 1.14 | 353.74 | 0.1771 | 1023.0 | 856.0 | |
| 0.00 | 4.34 | 0.00 | 2.19 | 16.41 | 240.08 | 1.02 | 355.17 | 0.2045 | 938.0 | 814.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 17.08 | 239.74 | 0.69 | 356.95 | 0.2155 | 670.0 | 572.9 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 16.01 | 239.64 | 0.59 | 357.12 | 0.1972 | 1071.0 | 898.7 | |
| 0.00 | 4.77 | 0.00 | 2.41 | 16.44 | 239.58 | 0.53 | 357.51 | 0.2045 | 926.0 | 873.0 | |
| 0.00 | 3.99 | 0.00 | 2.02 | 16.16 | 239.24 | 0.19 | 359.10 | 0.1996 | 950.0 | 702.7 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 15.01 | 239.18 | 0.12 | 359.34 | 0.1797 | 997.0 | 867.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
