SDO HMI 2011-10-29 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 260.15 | 1213.91 | 133.25 | 623.43 | 6.71 | 252.97 | 14.46 | 282.72 | 0.2568 | -367.5 | -234.1 | |
|
previous
or next observation for the same group /

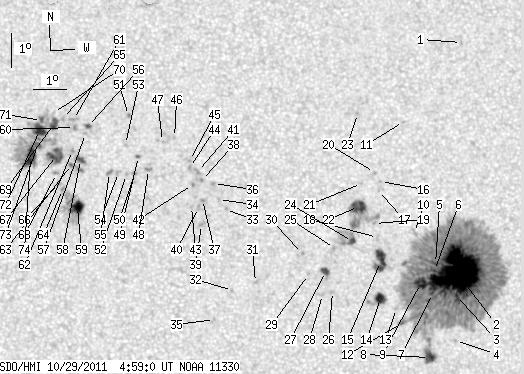

back to the solar disc SDO HMI 2011-10-29 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.59 | 12.89 | 256.17 | 17.66 | 296.31 | 0.3314 | -800.0 | -670.1 | |
| 127.95 | 846.10 | 66.32 | 438.23 | 6.05 | 255.65 | 17.14 | 275.30 | 0.2957 | -1619.3 | -456.5 | |
| 0.87 | -2.00 | 0.45 | -2.00 | 5.34 | 255.63 | 17.12 | 272.88 | 0.2948 | -1081.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 4.00 | 255.57 | 17.06 | 268.31 | 0.2940 | 793.0 | 628.1 | |
| 1.82 | -2.00 | 0.94 | -2.00 | 6.30 | 255.00 | 16.49 | 276.34 | 0.2852 | -1164.0 | 999999 | |
| 0.78 | -2.00 | 0.40 | -2.00 | 6.10 | 254.97 | 16.46 | 275.62 | 0.2843 | -1297.9 | 999999 | |
| 1.04 | -2.00 | 0.54 | -2.00 | 5.41 | 254.88 | 16.37 | 273.22 | 0.2824 | -1078.2 | 999999 | |
| 8.93 | -2.00 | 4.61 | -2.00 | 3.51 | 254.75 | 16.24 | 266.41 | 0.2809 | 893.9 | 999999 | |
| 8.24 | -2.00 | 4.25 | -2.00 | 5.72 | 254.52 | 16.01 | 274.37 | 0.2765 | -1440.9 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.48 | 7.24 | 254.38 | 15.87 | 279.93 | 0.2767 | -727.0 | -527.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 10.56 | 254.18 | 15.67 | 291.60 | 0.2869 | -748.0 | -609.5 | |
| 1.47 | -2.00 | 0.76 | -2.00 | 4.54 | 253.90 | 15.39 | 270.04 | 0.2657 | 627.9 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 4.99 | 253.75 | 15.24 | 271.74 | 0.2632 | -607.0 | -399.0 | |
| 7.72 | 13.01 | 3.95 | 6.66 | 5.30 | 253.26 | 14.76 | 272.97 | 0.2551 | -1171.3 | -832.0 | |
| 16.92 | 19.17 | 8.67 | 9.82 | 6.40 | 253.29 | 14.79 | 277.28 | 0.2568 | -1111.4 | -843.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 8.79 | 253.38 | 14.87 | 286.26 | 0.2654 | -480.0 | -383.6 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 8.52 | 253.31 | 14.80 | 285.34 | 0.2631 | 785.0 | 641.2 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 7.12 | 253.22 | 14.72 | 280.09 | 0.2572 | -735.0 | -594.3 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 7.54 | 253.14 | 14.64 | 281.76 | 0.2570 | -765.0 | -605.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 9.06 | 253.20 | 14.69 | 287.43 | 0.2637 | 804.0 | 650.1 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 8.74 | 252.79 | 14.28 | 286.66 | 0.2556 | 899.0 | 638.2 | |
| 11.80 | 42.33 | 6.03 | 21.65 | 8.05 | 252.67 | 14.16 | 284.13 | 0.2509 | 1079.9 | 307.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 10.83 | 252.75 | 14.24 | 294.34 | 0.2664 | -861.0 | -675.8 | |
| 3.56 | 20.12 | 1.82 | 10.27 | 7.01 | 252.45 | 13.94 | 280.15 | 0.2440 | -952.7 | -495.7 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 6.82 | 251.88 | 13.38 | 279.67 | 0.2341 | -914.0 | -730.4 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 5.54 | 251.79 | 13.28 | 274.20 | 0.2303 | -865.0 | -693.7 | |
| 4.60 | 5.90 | 2.34 | 3.00 | 6.14 | 251.59 | 13.08 | 276.89 | 0.2277 | -1072.8 | -867.1 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 5.45 | 251.48 | 12.97 | 273.90 | 0.2250 | -853.0 | -691.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 6.06 | 251.07 | 12.56 | 276.76 | 0.2187 | -744.0 | -523.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 6.69 | 250.90 | 12.39 | 279.74 | 0.2172 | -914.0 | -792.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 5.85 | 249.44 | 10.93 | 276.50 | 0.1907 | 801.0 | 680.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 5.62 | 248.74 | 10.23 | 275.60 | 0.1784 | 831.0 | 654.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 8.03 | 248.57 | 10.07 | 288.95 | 0.1838 | 704.0 | 617.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.33 | 248.37 | 9.86 | 290.88 | 0.1822 | 713.0 | 579.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 4.76 | 248.18 | 9.67 | 270.77 | 0.1681 | 817.0 | 696.7 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 8.81 | 248.23 | 9.72 | 293.61 | 0.1829 | 925.0 | 735.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.34 | 247.88 | 9.37 | 291.86 | 0.1744 | 972.0 | 867.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 8.91 | 247.86 | 9.35 | 294.88 | 0.1778 | 978.0 | 841.5 | |
| 0.00 | 2.86 | 0.00 | 1.44 | 7.60 | 247.83 | 9.32 | 287.82 | 0.1695 | 927.0 | 699.5 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 8.10 | 247.75 | 9.24 | 290.82 | 0.1709 | 862.0 | 777.2 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 9.18 | 247.75 | 9.24 | 296.54 | 0.1780 | 800.0 | 742.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 8.79 | 247.59 | 9.08 | 294.91 | 0.1727 | 1019.0 | 870.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 8.14 | 247.54 | 9.03 | 291.43 | 0.1677 | 799.0 | 639.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.30 | 247.51 | 9.00 | 297.76 | 0.1752 | 1049.0 | 770.1 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 9.51 | 247.51 | 9.00 | 298.81 | 0.1770 | 940.0 | 663.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.20 | 247.07 | 8.56 | 303.45 | 0.1765 | 670.0 | 579.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.09 | 246.70 | 8.19 | 304.03 | 0.1701 | 825.0 | 651.4 | |
| 0.00 | 2.86 | 0.00 | 1.44 | 9.26 | 246.26 | 7.75 | 301.08 | 0.1561 | -931.0 | -675.3 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 9.65 | 245.96 | 7.45 | 304.22 | 0.1553 | 1022.0 | 690.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 9.14 | 245.83 | 7.32 | 301.85 | 0.1487 | 847.0 | 674.0 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 10.88 | 245.68 | 7.17 | 311.43 | 0.1644 | 1000.0 | 825.4 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.11 | 245.58 | 7.07 | 302.54 | 0.1449 | 930.0 | 601.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.01 | 245.57 | 7.06 | 307.58 | 0.1535 | 992.0 | 749.8 | |
| 0.00 | 2.86 | 0.00 | 1.43 | 9.18 | 245.34 | 6.83 | 303.81 | 0.1420 | 668.0 | 599.1 | |
| 0.00 | 2.43 | 0.00 | 1.21 | 9.18 | 245.07 | 6.56 | 304.89 | 0.1381 | 1141.0 | 945.5 | |
| 2.17 | 4.60 | 1.09 | 2.30 | 10.56 | 244.43 | 5.92 | 315.34 | 0.1448 | 911.0 | 622.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.35 | 244.36 | 5.85 | 314.60 | 0.1415 | 896.0 | 661.1 | |
| 4.51 | 5.29 | 2.25 | 2.64 | 9.57 | 244.20 | 5.69 | 311.15 | 0.1304 | 1007.2 | 858.2 | |
| 10.41 | 39.21 | 5.19 | 19.54 | 8.14 | 244.08 | 5.57 | 302.16 | 0.1141 | 1268.1 | 688.4 | |
| 0.00 | 2.60 | 0.00 | 1.30 | 10.53 | 244.03 | 5.52 | 317.17 | 0.1398 | 1041.0 | 784.4 | |
| 0.00 | 2.95 | 0.00 | 1.48 | 10.77 | 244.00 | 5.49 | 318.46 | 0.1425 | 946.0 | 759.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.85 | 243.96 | 5.45 | 313.92 | 0.1305 | 890.0 | 746.8 | |
| 1.21 | 5.46 | 0.61 | 2.73 | 9.43 | 243.92 | 5.41 | 311.67 | 0.1251 | 1109.1 | 851.2 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 8.68 | 243.64 | 5.13 | 308.31 | 0.1131 | 1067.0 | 840.4 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 10.81 | 243.67 | 5.16 | 320.37 | 0.1392 | 782.0 | 627.6 | |
| 0.00 | 1.65 | 0.00 | 0.82 | 8.86 | 243.52 | 5.01 | 310.21 | 0.1135 | 1071.0 | 873.7 | |
| 11.54 | 19.78 | 5.76 | 9.87 | 9.70 | 243.47 | 4.96 | 315.74 | 0.1227 | 1111.2 | 921.0 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 9.16 | 243.46 | 4.95 | 312.51 | 0.1162 | 981.0 | 833.3 | |
| 6.59 | 114.15 | 3.29 | 56.96 | 10.63 | 243.39 | 4.88 | 321.07 | 0.1338 | 976.6 | 568.4 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 10.99 | 243.40 | 4.89 | 322.69 | 0.1387 | 81.0 | 74.6 | |
| 1.13 | -69.00 | 0.56 | -69.00 | 10.75 | 243.03 | 4.52 | 323.76 | 0.1316 | 897.8 | 999999 | |
| 9.63 | -69.00 | 4.81 | -69.00 | 10.45 | 242.96 | 4.46 | 322.75 | 0.1268 | 1106.4 | 999999 | |
| 4.25 | -69.00 | 2.12 | -69.00 | 10.00 | 242.90 | 4.39 | 320.88 | 0.1200 | 1199.3 | 999999 | |
| 13.01 | -69.00 | 6.49 | -69.00 | 9.64 | 242.68 | 4.17 | 320.31 | 0.1128 | 1187.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
