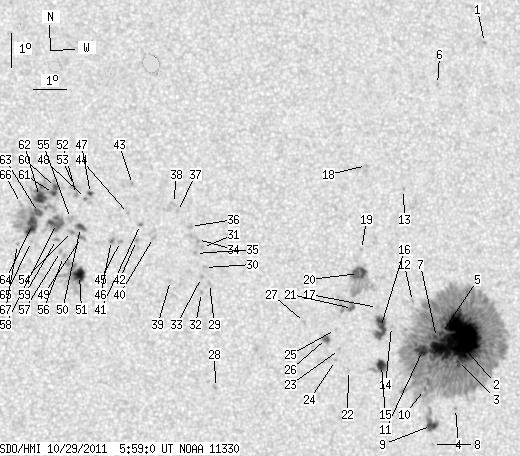

SDO HMI 2011-10-29 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 245.21 | 1194.72 | 125.92 | 615.29 | 6.71 | 253.00 | 15.04 | 282.13 | 0.2662 | -387.8 | -233.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.83 | 14.90 | 257.08 | 19.12 | 299.84 | 0.3665 | -784.0 | -608.9 | |
| 121.53 | 841.15 | 63.19 | 436.99 | 6.03 | 255.67 | 17.71 | 275.13 | 0.3051 | -1632.1 | -459.4 | |
| 1.04 | -2.00 | 0.54 | -2.00 | 5.37 | 255.65 | 17.69 | 272.98 | 0.3042 | -1110.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 3.98 | 255.55 | 17.59 | 268.35 | 0.3029 | 799.0 | 633.6 | |
| 1.56 | -2.00 | 0.81 | -2.00 | 6.22 | 255.17 | 17.21 | 275.88 | 0.2970 | -1405.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 13.67 | 255.46 | 17.49 | 298.67 | 0.3344 | -772.0 | -551.2 | |
| 2.17 | -2.00 | 1.12 | -2.00 | 6.10 | 255.01 | 17.05 | 275.53 | 0.2942 | -1346.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 2.92 | 254.81 | 16.85 | 264.60 | 0.2921 | 714.0 | 523.0 | |
| 8.07 | -2.00 | 4.17 | -2.00 | 3.49 | 254.79 | 16.83 | 266.53 | 0.2908 | 889.9 | 999999 | |
| 1.13 | -2.00 | 0.58 | -2.00 | 4.56 | 254.59 | 16.63 | 270.24 | 0.2866 | -678.3 | 999999 | |
| 7.98 | -2.00 | 4.12 | -2.00 | 5.73 | 254.56 | 16.60 | 274.32 | 0.2864 | -1461.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 7.19 | 254.30 | 16.34 | 279.54 | 0.2843 | -847.0 | -580.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.54 | 254.17 | 16.21 | 290.96 | 0.2952 | -725.0 | -582.6 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 6.46 | 253.62 | 15.66 | 277.21 | 0.2715 | -719.0 | -571.2 | |
| 7.46 | 13.79 | 3.83 | 7.08 | 5.31 | 253.27 | 15.31 | 272.98 | 0.2645 | -1194.0 | -799.8 | |
| 15.44 | 18.91 | 7.93 | 9.71 | 6.44 | 253.28 | 15.31 | 277.26 | 0.2658 | -1118.5 | -868.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 7.04 | 253.20 | 15.24 | 279.53 | 0.2657 | -833.0 | -625.0 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 11.29 | 253.04 | 15.08 | 294.74 | 0.2822 | -763.0 | -600.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 8.78 | 252.77 | 14.81 | 286.32 | 0.2644 | 869.0 | 603.2 | |
| 12.40 | 42.85 | 6.36 | 21.97 | 8.06 | 252.65 | 14.69 | 283.76 | 0.2596 | 1045.9 | 301.3 | |
| 2.60 | 15.27 | 1.33 | 7.81 | 7.02 | 252.43 | 14.46 | 279.91 | 0.2528 | -904.9 | -516.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 5.18 | 252.25 | 14.29 | 272.58 | 0.2472 | 741.0 | 548.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 5.81 | 251.99 | 14.03 | 275.21 | 0.2432 | -924.0 | -733.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 5.49 | 251.86 | 13.90 | 273.89 | 0.2407 | -796.0 | -653.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 6.41 | 251.88 | 13.92 | 277.71 | 0.2423 | -687.0 | -487.0 | |
| 3.73 | 4.94 | 1.90 | 2.52 | 6.15 | 251.60 | 13.63 | 276.74 | 0.2371 | -1109.8 | -875.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 6.64 | 250.93 | 12.97 | 279.18 | 0.2269 | -874.0 | -684.4 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 4.75 | 248.17 | 10.21 | 270.72 | 0.1775 | 974.0 | 741.8 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 7.85 | 248.05 | 10.09 | 287.96 | 0.1833 | 844.0 | 649.9 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 8.32 | 247.91 | 9.95 | 290.70 | 0.1836 | 1087.0 | 817.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 8.92 | 247.87 | 9.90 | 293.81 | 0.1866 | 934.0 | 773.8 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 7.58 | 247.80 | 9.84 | 286.94 | 0.1779 | 966.0 | 784.2 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 8.03 | 247.81 | 9.85 | 289.32 | 0.1803 | 819.0 | 775.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 9.16 | 247.72 | 9.76 | 295.31 | 0.1860 | 799.0 | 747.8 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 8.75 | 247.65 | 9.69 | 293.37 | 0.1820 | 1039.0 | 845.9 | |
| 0.00 | 2.34 | 0.00 | 1.18 | 9.55 | 247.52 | 9.55 | 297.69 | 0.1857 | 693.0 | 666.8 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 10.01 | 247.13 | 9.17 | 300.84 | 0.1836 | 748.0 | 510.4 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 10.25 | 247.02 | 9.05 | 302.29 | 0.1840 | 608.0 | 555.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 7.95 | 246.87 | 8.90 | 290.67 | 0.1646 | 881.0 | 636.1 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 9.24 | 246.38 | 8.42 | 299.03 | 0.1660 | -572.0 | -475.0 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 9.63 | 245.99 | 8.03 | 302.26 | 0.1636 | 986.0 | 735.8 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 9.16 | 245.86 | 7.90 | 300.10 | 0.1575 | 884.0 | 630.3 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 10.83 | 245.78 | 7.81 | 308.89 | 0.1724 | 901.0 | 721.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.97 | 245.63 | 7.67 | 305.17 | 0.1616 | 1030.0 | 768.7 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 9.13 | 245.37 | 7.41 | 301.53 | 0.1501 | 1074.0 | 849.4 | |
| 1.56 | 1.73 | 0.78 | 0.87 | 9.16 | 245.10 | 7.14 | 302.66 | 0.1463 | 1001.1 | 1178.5 | |
| 1.65 | 2.17 | 0.83 | 1.09 | 10.58 | 244.49 | 6.53 | 312.68 | 0.1527 | 841.1 | 741.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 10.43 | 244.33 | 6.37 | 312.63 | 0.1490 | 872.0 | 692.9 | |
| 0.00 | 2.95 | 0.00 | 1.47 | 9.26 | 244.19 | 6.23 | 306.83 | 0.1344 | 894.0 | 734.1 | |
| 3.99 | 5.73 | 2.00 | 2.86 | 9.56 | 244.16 | 6.20 | 308.71 | 0.1372 | 1021.4 | 847.5 | |
| 9.80 | 39.47 | 4.89 | 19.69 | 8.13 | 244.11 | 6.15 | 299.68 | 0.1226 | 1241.4 | 712.2 | |
| 0.00 | 2.78 | 0.00 | 1.39 | 10.55 | 244.06 | 6.10 | 314.46 | 0.1470 | 1078.0 | 804.0 | |
| 0.00 | 3.90 | 0.00 | 1.96 | 10.79 | 244.00 | 6.04 | 315.89 | 0.1493 | 903.0 | 742.0 | |
| 0.00 | 2.78 | 0.00 | 1.39 | 9.44 | 243.89 | 5.93 | 309.28 | 0.1322 | 1242.0 | 975.0 | |
| 0.00 | 4.08 | 0.00 | 2.04 | 9.83 | 243.86 | 5.90 | 311.63 | 0.1362 | 787.0 | 741.1 | |
| 0.00 | 2.17 | 0.00 | 1.08 | 8.70 | 243.63 | 5.67 | 305.74 | 0.1209 | 901.0 | 760.7 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 8.85 | 243.55 | 5.58 | 307.17 | 0.1212 | 1006.0 | 758.0 | |
| 11.88 | 23.42 | 5.94 | 11.70 | 9.69 | 243.44 | 5.48 | 312.91 | 0.1290 | 1126.8 | 703.7 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 9.21 | 243.43 | 5.47 | 310.08 | 0.1235 | 1024.0 | 774.5 | |
| 2.34 | 108.08 | 1.17 | 53.98 | 10.76 | 243.43 | 5.46 | 318.62 | 0.1421 | 821.2 | 590.5 | |
| 2.34 | -60.00 | 1.17 | -60.00 | 10.58 | 243.36 | 5.40 | 318.08 | 0.1391 | 1108.7 | 999999 | |
| 10.76 | -60.00 | 5.38 | -60.00 | 10.50 | 242.93 | 4.97 | 319.98 | 0.1331 | 1096.1 | 999999 | |
| 4.42 | -60.00 | 2.21 | -60.00 | 10.02 | 242.90 | 4.93 | 317.72 | 0.1265 | 1166.1 | 999999 | |
| 11.36 | -60.00 | 5.67 | -60.00 | 9.66 | 242.71 | 4.75 | 316.82 | 0.1198 | 1212.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 9.15 | 242.67 | 4.71 | 313.93 | 0.1131 | 789.0 | 567.2 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 10.29 | 242.35 | 4.39 | 322.40 | 0.1241 | 812.0 | 500.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.07 | 242.25 | 4.29 | 316.05 | 0.1068 | -393.0 | -186.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
