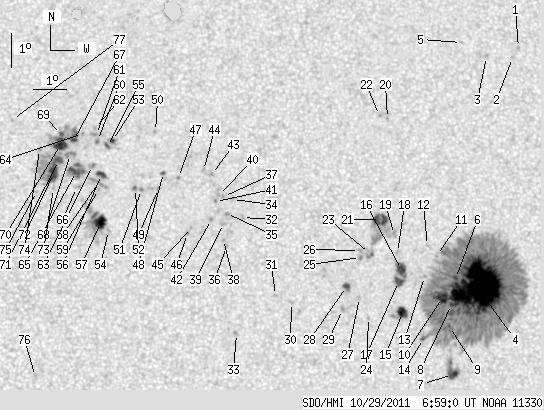

SDO HMI 2011-10-29 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 269.24 | 1210.79 | 138.75 | 625.14 | 6.76 | 252.98 | 15.56 | 281.72 | 0.2745 | -427.4 | -198.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.65 | 13.14 | 257.39 | 19.97 | 294.54 | 0.3673 | -737.0 | -577.0 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 12.85 | 257.17 | 19.75 | 294.00 | 0.3623 | -798.0 | -535.1 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 12.90 | 256.33 | 18.92 | 294.98 | 0.3501 | -698.0 | -596.7 | |
| 149.28 | 830.45 | 77.85 | 432.85 | 6.01 | 255.66 | 18.24 | 274.98 | 0.3139 | -1557.4 | -423.9 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 13.34 | 255.56 | 18.14 | 297.01 | 0.3416 | -746.0 | -538.5 | |
| 2.00 | -4.00 | 1.04 | -4.00 | 6.29 | 254.97 | 17.56 | 276.06 | 0.3029 | -1073.1 | 999999 | |
| 7.55 | 16.74 | 3.92 | 8.69 | 3.44 | 254.80 | 17.39 | 266.53 | 0.3002 | 984.8 | 272.5 | |
| 1.21 | -4.00 | 0.63 | -4.00 | 5.52 | 254.82 | 17.41 | 273.52 | 0.2997 | -1242.8 | 999999 | |
| 1.30 | -4.00 | 0.67 | -4.00 | 4.87 | 254.74 | 17.33 | 271.33 | 0.2982 | -968.7 | 999999 | |
| 8.15 | -4.00 | 4.23 | -4.00 | 5.73 | 254.55 | 17.13 | 274.28 | 0.2953 | -1452.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 6.99 | 254.40 | 16.99 | 278.58 | 0.2946 | -887.0 | -619.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 7.29 | 254.13 | 16.72 | 279.74 | 0.2908 | -676.0 | -456.5 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 6.37 | 254.01 | 16.59 | 276.60 | 0.2869 | -892.0 | -614.6 | |
| 1.65 | -4.00 | 0.85 | -4.00 | 4.53 | 253.92 | 16.51 | 270.13 | 0.2845 | 559.7 | 999999 | |
| 7.11 | 12.14 | 3.66 | 6.25 | 5.32 | 253.29 | 15.87 | 272.97 | 0.2739 | -1170.3 | -854.4 | |
| 9.54 | 22.81 | 4.91 | 11.75 | 6.60 | 253.29 | 15.88 | 277.65 | 0.2755 | -1057.6 | -800.6 | |
| 5.72 | -16.00 | 2.95 | -16.00 | 6.24 | 253.19 | 15.77 | 276.39 | 0.2732 | -1109.7 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 7.11 | 253.19 | 15.77 | 279.54 | 0.2747 | -636.0 | -557.2 | |
| 0.00 | 2.78 | 0.00 | 1.43 | 7.65 | 253.11 | 15.70 | 281.53 | 0.2749 | -196.0 | -206.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 11.11 | 253.05 | 15.64 | 293.49 | 0.2897 | -937.0 | -696.2 | |
| 10.76 | 38.34 | 5.53 | 19.71 | 8.10 | 252.69 | 15.28 | 283.47 | 0.2695 | 1034.2 | 340.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 11.21 | 252.81 | 15.39 | 294.11 | 0.2865 | -904.0 | -763.7 | |
| 0.00 | 7.37 | 0.00 | 3.78 | 7.10 | 252.32 | 14.90 | 279.96 | 0.2602 | -540.0 | -714.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 5.19 | 252.23 | 14.81 | 272.60 | 0.2561 | 797.0 | 612.6 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 6.98 | 252.03 | 14.62 | 279.68 | 0.2553 | -1036.0 | -834.9 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 7.19 | 252.01 | 14.59 | 280.51 | 0.2554 | -244.0 | -242.1 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 5.79 | 251.97 | 14.55 | 275.02 | 0.2521 | -885.0 | -688.7 | |
| 3.47 | 4.77 | 1.77 | 2.44 | 6.13 | 251.57 | 14.16 | 276.49 | 0.2459 | -1080.6 | -994.3 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 5.45 | 251.43 | 14.02 | 273.73 | 0.2427 | -927.0 | -620.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 5.68 | 249.87 | 12.46 | 275.15 | 0.2165 | 632.0 | 475.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 5.90 | 249.39 | 11.97 | 276.36 | 0.2085 | 926.0 | 661.8 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 8.24 | 248.43 | 11.02 | 288.56 | 0.2005 | 549.0 | 492.5 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 4.79 | 248.17 | 10.76 | 271.00 | 0.1869 | 861.0 | 706.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.78 | 248.14 | 10.73 | 291.61 | 0.1988 | 882.0 | 745.1 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 8.37 | 247.95 | 10.53 | 289.93 | 0.1933 | 1128.0 | 881.3 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 7.38 | 247.92 | 10.51 | 285.00 | 0.1881 | 879.0 | 686.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 8.88 | 247.87 | 10.45 | 292.54 | 0.1950 | 899.0 | 740.5 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 7.59 | 247.84 | 10.42 | 286.20 | 0.1876 | 885.0 | 727.3 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 8.07 | 247.85 | 10.43 | 288.62 | 0.1901 | 927.0 | 795.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 8.91 | 247.72 | 10.30 | 292.98 | 0.1928 | 1027.0 | 841.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 8.73 | 247.62 | 10.21 | 292.30 | 0.1902 | 1018.0 | 896.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 8.19 | 247.48 | 10.07 | 289.85 | 0.1848 | 1062.0 | 895.4 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 9.54 | 247.52 | 10.11 | 296.39 | 0.1941 | 880.0 | 669.5 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 9.66 | 247.28 | 9.86 | 297.50 | 0.1913 | 919.0 | 722.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 7.96 | 246.87 | 9.45 | 289.72 | 0.1736 | 864.0 | 688.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 7.79 | 246.74 | 9.33 | 288.97 | 0.1706 | 889.0 | 681.7 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.46 | 246.51 | 9.09 | 298.40 | 0.1780 | -887.0 | -710.7 | |
| 1.47 | 1.65 | 0.74 | 0.83 | 9.62 | 246.05 | 8.64 | 300.40 | 0.1725 | 578.9 | 675.5 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 9.14 | 245.89 | 8.47 | 298.37 | 0.1661 | 951.0 | 676.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 10.85 | 245.84 | 8.43 | 306.93 | 0.1809 | 937.0 | 719.5 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 9.12 | 245.37 | 7.96 | 299.73 | 0.1581 | 1185.0 | 941.0 | |
| 1.30 | 1.82 | 0.65 | 0.91 | 9.15 | 245.19 | 7.77 | 300.47 | 0.1557 | 1074.4 | 1014.0 | |
| 1.82 | 9.54 | 0.91 | 4.79 | 10.59 | 244.52 | 7.11 | 310.41 | 0.1604 | 958.0 | 639.3 | |
| 0.00 | 2.34 | 0.00 | 1.17 | 7.90 | 244.35 | 6.93 | 295.40 | 0.1329 | 90.0 | 68.2 | |
| 1.65 | -53.00 | 0.83 | -53.00 | 10.41 | 244.36 | 6.95 | 310.15 | 0.1564 | 851.8 | 999999 | |
| 4.34 | 5.29 | 2.17 | 2.65 | 9.58 | 244.16 | 6.75 | 306.53 | 0.1449 | 988.6 | 752.4 | |
| 10.50 | 44.50 | 5.24 | 22.22 | 8.14 | 244.11 | 6.69 | 297.83 | 0.1311 | 1263.1 | 653.4 | |
| 0.00 | 6.07 | 0.00 | 3.04 | 9.34 | 244.07 | 6.65 | 305.55 | 0.1412 | 1093.0 | 874.9 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.13 | 244.06 | 6.65 | 304.32 | 0.1391 | 937.0 | 772.5 | |
| 0.00 | 2.60 | 0.00 | 1.30 | 10.59 | 244.06 | 6.65 | 312.29 | 0.1546 | 1181.0 | 925.5 | |
| 0.00 | 3.64 | 0.00 | 1.83 | 10.77 | 244.04 | 6.62 | 313.27 | 0.1563 | 965.0 | 777.5 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 10.95 | 243.98 | 6.57 | 314.36 | 0.1577 | 684.0 | 490.0 | |
| 0.00 | 3.73 | 0.00 | 1.87 | 9.85 | 243.90 | 6.48 | 309.15 | 0.1441 | 853.0 | 785.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 10.81 | 243.61 | 6.20 | 315.31 | 0.1514 | 828.0 | 665.2 | |
| 8.41 | 19.95 | 4.21 | 9.97 | 9.67 | 243.41 | 5.99 | 310.35 | 0.1356 | 1176.5 | 884.5 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.20 | 243.40 | 5.98 | 307.55 | 0.1304 | 849.0 | 691.4 | |
| 2.78 | 101.49 | 1.39 | 50.72 | 10.60 | 243.33 | 5.92 | 315.61 | 0.1455 | 1091.5 | 518.5 | |
| 0.00 | 5.90 | 0.00 | 2.95 | 10.18 | 243.23 | 5.82 | 313.97 | 0.1393 | 914.0 | 940.9 | |
| 1.65 | -67.00 | 0.82 | -67.00 | 10.78 | 242.97 | 5.56 | 318.27 | 0.1435 | 867.7 | 999999 | |
| 10.84 | -67.00 | 5.42 | -67.00 | 10.48 | 242.93 | 5.52 | 317.00 | 0.1393 | 1135.9 | 999999 | |
| 5.55 | -67.00 | 2.77 | -67.00 | 10.01 | 242.87 | 5.45 | 314.87 | 0.1326 | 1175.0 | 999999 | |
| 11.19 | -67.00 | 5.59 | -67.00 | 9.62 | 242.71 | 5.29 | 313.52 | 0.1260 | 1197.1 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.17 | 242.70 | 5.29 | 310.83 | 0.1207 | 764.0 | 574.9 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 10.34 | 242.29 | 4.88 | 319.75 | 0.1301 | 863.0 | 658.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 9.09 | 242.18 | 4.77 | 313.17 | 0.1131 | -412.0 | -269.5 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 3.57 | 242.10 | 4.69 | 256.82 | 0.0842 | 922.0 | 654.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.24 | 241.49 | 4.07 | 328.68 | 0.1346 | 835.0 | 551.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
