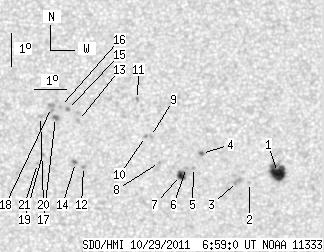

SDO HMI 2011-10-29 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.20 | 63.49 | 11.29 | 32.19 | 15.04 | 243.41 | 5.99 | 331.49 | 0.2129 | -156.4 | 193.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.31 | 21.95 | 8.30 | 11.17 | 14.45 | 246.49 | 9.08 | 318.15 | 0.2300 | -1120.4 | -590.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.16 | 245.61 | 8.20 | 320.10 | 0.2165 | -842.0 | -629.2 | |
| 0.00 | 3.99 | 0.00 | 2.02 | 14.19 | 245.24 | 7.83 | 321.49 | 0.2130 | -894.0 | -776.2 | |
| 1.47 | 1.65 | 0.75 | 0.84 | 15.05 | 244.15 | 6.74 | 327.87 | 0.2140 | -912.2 | -1063.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.63 | 243.89 | 6.48 | 327.78 | 0.2056 | -783.0 | -572.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.63 | 243.67 | 6.26 | 328.65 | 0.2037 | -795.0 | -686.1 | |
| 4.42 | 6.51 | 2.24 | 3.29 | 14.39 | 243.48 | 6.07 | 328.79 | 0.1985 | -1065.9 | -1040.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.79 | 242.84 | 5.43 | 332.51 | 0.1990 | -1012.0 | -735.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.58 | 242.58 | 5.17 | 335.36 | 0.2092 | 778.0 | 663.5 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 15.58 | 242.43 | 5.01 | 336.02 | 0.2081 | 943.0 | 678.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.70 | 242.21 | 4.79 | 339.00 | 0.2243 | 814.0 | 507.5 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 14.68 | 240.50 | 3.08 | 343.34 | 0.1821 | 931.0 | 759.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.07 | 240.36 | 2.95 | 345.97 | 0.2046 | 911.0 | 756.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.80 | 240.25 | 2.84 | 344.78 | 0.1830 | 1085.0 | 997.0 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.41 | 240.02 | 2.61 | 347.88 | 0.2089 | 1011.0 | 821.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 16.50 | 239.81 | 2.39 | 348.94 | 0.2097 | 888.0 | 708.8 | |
| 0.00 | 2.95 | 0.00 | 1.49 | 16.17 | 239.65 | 2.23 | 349.36 | 0.2036 | 1248.0 | 1059.7 | |
| 0.00 | 5.72 | 0.00 | 2.90 | 16.47 | 239.53 | 2.11 | 350.18 | 0.2083 | 821.0 | 823.9 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 15.05 | 239.24 | 1.82 | 350.32 | 0.1833 | 926.0 | 703.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 16.20 | 239.18 | 1.77 | 351.56 | 0.2028 | 865.0 | 657.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 14.77 | 239.08 | 1.66 | 350.90 | 0.1783 | 894.0 | 714.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
