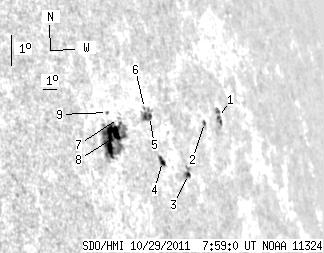

SDO HMI 2011-10-29 07:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.91 | 100.19 | 30.64 | 110.89 | 12.80 | 300.60 | 63.73 | 282.00 | 0.8948 | 392.3 | 62.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 07:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 8.33 | 1.10 | 11.75 | 12.92 | 306.82 | 69.95 | 282.05 | 0.9378 | -612.0 | -331.4 | |
| 1.21 | 1.82 | 1.62 | 2.43 | 12.86 | 305.56 | 68.69 | 281.99 | 0.9301 | -317.7 | -312.0 | |
| 2.08 | 6.42 | 2.55 | 7.86 | 11.43 | 303.50 | 66.63 | 280.44 | 0.9167 | -500.3 | -433.6 | |
| 3.90 | 5.29 | 4.49 | 6.09 | 11.95 | 301.79 | 64.93 | 281.02 | 0.9046 | 378.2 | 232.7 | |
| 1.21 | 10.67 | 1.39 | 12.11 | 13.34 | 301.52 | 64.65 | 282.56 | 0.9027 | 416.4 | -34.3 | |
| 0.00 | 1.13 | 0.00 | 1.28 | 13.60 | 301.29 | 64.42 | 282.86 | 0.9011 | 413.0 | 354.1 | |
| 0.00 | 1.13 | 0.00 | 1.20 | 13.43 | 299.41 | 62.54 | 282.73 | 0.8867 | 275.0 | 162.2 | |
| 18.73 | 64.27 | 19.49 | 67.00 | 12.87 | 298.76 | 61.89 | 282.11 | 0.8814 | 626.5 | 209.6 | |
| 0.00 | 1.13 | 0.00 | 1.17 | 13.66 | 298.78 | 61.91 | 283.01 | 0.8818 | 483.0 | 431.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
