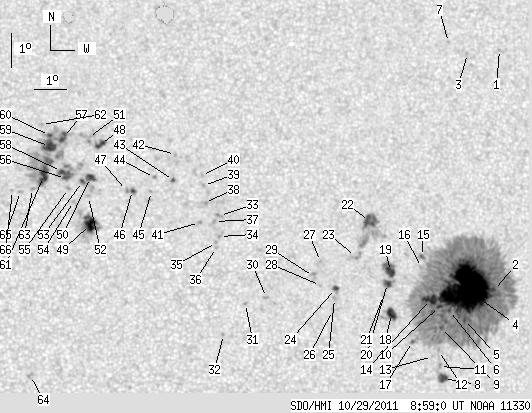

SDO HMI 2011-10-29 08:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 248.18 | 1154.09 | 128.70 | 599.17 | 6.72 | 253.01 | 16.68 | 280.69 | 0.2923 | -508.2 | -199.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 08:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.14 | 257.17 | 20.85 | 293.74 | 0.3803 | -764.0 | -637.7 | |
| 1.39 | 807.15 | 0.73 | 423.33 | 5.94 | 256.52 | 20.20 | 274.53 | 0.3461 | -865.3 | -436.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.05 | 256.12 | 19.80 | 294.50 | 0.3642 | -802.0 | -665.2 | |
| 141.53 | -2.00 | 74.28 | -2.00 | 6.00 | 255.67 | 19.34 | 274.81 | 0.3320 | -1526.1 | 999999 | |
| 2.25 | -2.00 | 1.18 | -2.00 | 5.11 | 255.57 | 19.25 | 272.11 | 0.3301 | -988.2 | 999999 | |
| 1.13 | -2.00 | 0.59 | -2.00 | 5.39 | 255.11 | 18.78 | 273.00 | 0.3224 | -1069.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.40 | 255.53 | 19.21 | 295.99 | 0.3577 | -700.0 | -620.5 | |
| 4.42 | 7.02 | 2.31 | 3.67 | 3.37 | 254.86 | 18.54 | 266.66 | 0.3194 | 1080.9 | 804.5 | |
| 1.73 | -2.00 | 0.91 | -2.00 | 4.89 | 254.84 | 18.52 | 271.44 | 0.3179 | -742.1 | 999999 | |
| 2.08 | -2.00 | 1.09 | -2.00 | 5.51 | 254.79 | 18.47 | 273.42 | 0.3174 | -1183.4 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.27 | 3.73 | 254.75 | 18.42 | 267.77 | 0.3170 | 680.0 | 466.1 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 4.21 | 254.73 | 18.40 | 269.27 | 0.3163 | -96.0 | -100.5 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 4.03 | 254.53 | 18.21 | 268.69 | 0.3132 | 281.0 | 154.8 | |
| 8.41 | -2.00 | 4.39 | -2.00 | 5.73 | 254.52 | 18.20 | 274.14 | 0.3129 | -1401.1 | 999999 | |
| 1.30 | -2.00 | 0.68 | -2.00 | 7.02 | 254.28 | 17.96 | 278.34 | 0.3107 | -738.9 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 6.69 | 254.27 | 17.95 | 277.29 | 0.3099 | -211.0 | -186.6 | |
| 0.35 | -2.00 | 0.18 | -2.00 | 4.49 | 253.92 | 17.59 | 270.13 | 0.3027 | 704.8 | 999999 | |
| 7.63 | 12.49 | 3.95 | 6.46 | 5.34 | 253.28 | 16.96 | 273.00 | 0.2921 | -1156.0 | -714.7 | |
| 6.94 | 20.47 | 3.59 | 10.60 | 6.59 | 253.29 | 16.97 | 277.29 | 0.2936 | -1138.9 | -840.4 | |
| 3.90 | -19.00 | 2.02 | -19.00 | 6.24 | 253.18 | 16.86 | 276.10 | 0.2913 | -1132.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 5.88 | 253.05 | 16.73 | 274.91 | 0.2886 | -611.0 | -396.9 | |
| 7.20 | 41.54 | 3.72 | 21.47 | 8.10 | 252.69 | 16.37 | 282.73 | 0.2873 | 1109.1 | 313.3 | |
| 0.00 | 5.81 | 0.00 | 2.99 | 7.07 | 252.21 | 15.89 | 279.37 | 0.2766 | -825.0 | -780.3 | |
| 2.60 | 4.16 | 1.34 | 2.14 | 6.13 | 251.56 | 15.24 | 276.17 | 0.2640 | -1008.6 | -862.6 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 5.83 | 251.52 | 15.20 | 275.05 | 0.2630 | -861.0 | -759.6 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 5.47 | 251.45 | 15.13 | 273.70 | 0.2615 | -756.0 | -677.2 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 6.94 | 251.12 | 14.80 | 279.46 | 0.2582 | -843.0 | -657.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 6.23 | 251.10 | 14.77 | 276.70 | 0.2564 | -938.0 | -680.2 | |
| 0.00 | 4.16 | 0.00 | 2.13 | 6.50 | 250.89 | 14.57 | 277.85 | 0.2534 | -511.0 | -688.0 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 5.90 | 249.42 | 13.10 | 275.96 | 0.2277 | 987.0 | 749.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 5.73 | 248.77 | 12.45 | 275.44 | 0.2165 | 827.0 | 601.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 4.82 | 248.08 | 11.76 | 271.22 | 0.2041 | 936.0 | 715.5 | |
| 0.00 | 2.78 | 0.00 | 1.41 | 8.37 | 248.05 | 11.72 | 288.22 | 0.2126 | 980.0 | 818.4 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 7.74 | 248.03 | 11.71 | 285.37 | 0.2094 | 891.0 | 648.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 7.56 | 247.93 | 11.61 | 284.65 | 0.2071 | 941.0 | 771.7 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 7.42 | 247.93 | 11.60 | 283.94 | 0.2065 | 809.0 | 599.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.19 | 247.89 | 11.56 | 287.62 | 0.2092 | 1096.0 | 830.9 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 8.76 | 247.60 | 11.27 | 290.67 | 0.2075 | 877.0 | 795.8 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 9.27 | 247.58 | 11.26 | 292.98 | 0.2103 | 938.0 | 807.3 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 9.57 | 247.53 | 11.21 | 294.40 | 0.2114 | 649.0 | 584.3 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 8.17 | 247.43 | 11.10 | 288.16 | 0.2015 | 1080.0 | 884.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 10.21 | 246.75 | 10.43 | 298.78 | 0.2042 | 854.0 | 729.2 | |
| 1.39 | 1.47 | 0.70 | 0.74 | 9.43 | 246.67 | 10.34 | 295.46 | 0.1971 | -738.6 | -732.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 9.53 | 246.09 | 9.76 | 297.18 | 0.1889 | 841.0 | 701.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 9.12 | 245.98 | 9.66 | 295.38 | 0.1842 | 754.0 | 590.1 | |
| 0.87 | 1.91 | 0.44 | 0.96 | 9.15 | 245.40 | 9.08 | 296.93 | 0.1756 | 1027.8 | 971.9 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 9.16 | 245.22 | 8.90 | 297.40 | 0.1728 | 1155.0 | 876.9 | |
| 4.86 | 6.94 | 2.44 | 3.49 | 10.54 | 244.46 | 8.14 | 306.51 | 0.1740 | 1028.0 | 845.5 | |
| 8.76 | 34.08 | 4.39 | 17.07 | 8.15 | 244.10 | 7.78 | 294.65 | 0.1481 | 1269.7 | 680.5 | |
| 5.46 | 14.05 | 2.74 | 7.05 | 9.56 | 244.13 | 7.81 | 302.66 | 0.1599 | 920.7 | 714.1 | |
| 0.00 | 7.37 | 0.00 | 3.71 | 10.75 | 244.10 | 7.78 | 308.74 | 0.1713 | 891.0 | 765.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 8.99 | 244.06 | 7.74 | 299.76 | 0.1539 | 824.0 | 664.9 | |
| 1.47 | -50.00 | 0.74 | -50.00 | 9.44 | 243.89 | 7.56 | 302.84 | 0.1553 | 1052.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 8.85 | 243.60 | 7.28 | 300.40 | 0.1458 | 1016.0 | 756.5 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 9.23 | 243.46 | 7.13 | 303.19 | 0.1471 | 1084.0 | 812.5 | |
| 2.17 | 23.76 | 1.09 | 11.91 | 9.53 | 243.37 | 7.05 | 305.20 | 0.1488 | 926.6 | 905.6 | |
| 5.20 | 106.32 | 2.61 | 53.25 | 10.76 | 243.34 | 7.01 | 311.64 | 0.1613 | 957.9 | 622.0 | |
| 1.99 | -56.00 | 1.00 | -56.00 | 9.74 | 243.25 | 6.93 | 306.81 | 0.1492 | 1213.5 | 999999 | |
| 11.01 | -57.00 | 5.52 | -57.00 | 10.50 | 242.90 | 6.58 | 312.15 | 0.1527 | 1104.1 | 999999 | |
| 1.56 | -57.00 | 0.78 | -57.00 | 10.83 | 242.91 | 6.59 | 313.71 | 0.1566 | 889.8 | 999999 | |
| 10.58 | -57.00 | 5.29 | -57.00 | 9.60 | 242.70 | 6.38 | 308.26 | 0.1402 | 1171.5 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 11.16 | 242.67 | 6.35 | 316.26 | 0.1577 | 721.0 | 611.2 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 9.24 | 242.36 | 6.04 | 307.67 | 0.1318 | 884.0 | 648.9 | |
| 0.00 | 2.95 | 0.00 | 1.47 | 3.67 | 242.24 | 5.91 | 260.62 | 0.1047 | 886.0 | 770.9 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 9.16 | 242.00 | 5.67 | 308.85 | 0.1259 | -307.0 | -229.3 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 9.19 | 241.76 | 5.43 | 310.25 | 0.1230 | -717.0 | -470.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
