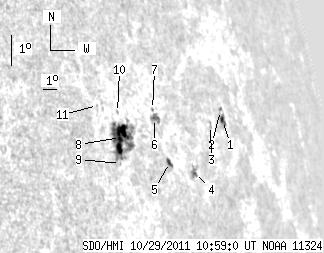

SDO HMI 2011-10-29 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.58 | 88.43 | 27.73 | 103.27 | 12.82 | 300.41 | 65.18 | 282.01 | 0.9055 | 310.6 | 83.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.86 | 5.20 | 4.38 | 7.98 | 12.84 | 306.89 | 71.66 | 281.99 | 0.9476 | -383.0 | -275.8 | |
| 0.00 | 1.13 | 0.00 | 1.73 | 13.15 | 306.91 | 71.68 | 282.32 | 0.9476 | -432.0 | -346.7 | |
| 0.00 | 1.91 | 0.00 | 2.76 | 12.78 | 305.70 | 70.47 | 281.92 | 0.9409 | -404.0 | -343.0 | |
| 1.21 | 5.81 | 1.60 | 7.65 | 11.48 | 303.55 | 68.32 | 280.51 | 0.9278 | -579.4 | -395.6 | |
| 2.95 | 4.07 | 3.61 | 4.98 | 11.95 | 301.77 | 66.55 | 281.01 | 0.9161 | 311.6 | 177.7 | |
| 0.00 | 7.72 | 0.00 | 9.29 | 13.32 | 301.33 | 66.10 | 282.52 | 0.9131 | -234.0 | -23.1 | |
| 0.00 | 1.21 | 0.00 | 1.46 | 13.59 | 301.33 | 66.10 | 282.82 | 0.9131 | 365.0 | 310.5 | |
| 16.56 | 58.78 | 18.14 | 64.60 | 12.93 | 298.67 | 63.44 | 282.15 | 0.8936 | 647.0 | 208.9 | |
| 0.00 | 0.87 | 0.00 | 0.94 | 12.17 | 298.33 | 63.10 | 281.29 | 0.8909 | 393.0 | 382.1 | |
| 0.00 | 0.95 | 0.00 | 1.05 | 13.68 | 298.82 | 63.59 | 282.98 | 0.8950 | 390.0 | 372.5 | |
| 0.00 | 0.78 | 0.00 | 0.83 | 13.98 | 297.61 | 62.38 | 283.37 | 0.8856 | 453.0 | 391.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
