SDO HMI 2011-10-29 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 236.75 | 1155.97 | 123.52 | 604.14 | 6.64 | 253.18 | 17.95 | 279.53 | 0.3124 | -505.0 | -212.5 | |
|
previous
or next observation for the same group /

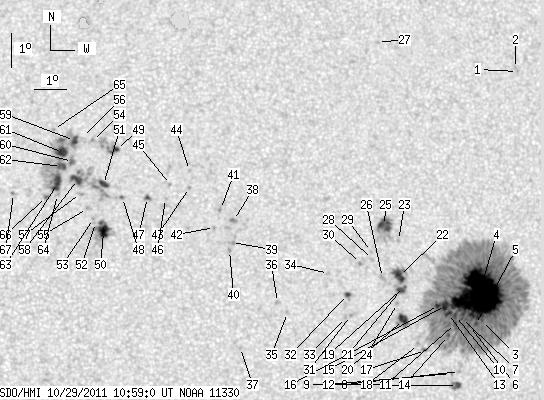

back to the solar disc SDO HMI 2011-10-29 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.47 | 12.64 | 257.38 | 22.15 | 291.46 | 0.3970 | -723.0 | -600.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 12.73 | 257.32 | 22.09 | 291.72 | 0.3966 | -694.0 | -521.6 | |
| 0.95 | 835.63 | 0.50 | 441.32 | 5.24 | 255.79 | 20.56 | 272.49 | 0.3515 | -1024.2 | -424.1 | |
| 130.92 | -3.00 | 69.19 | -3.00 | 5.99 | 255.69 | 20.46 | 274.64 | 0.3503 | -1490.5 | 999999 | |
| 1.21 | -3.00 | 0.64 | -3.00 | 5.13 | 255.56 | 20.33 | 272.17 | 0.3478 | -1010.8 | 999999 | |
| 1.30 | -3.00 | 0.69 | -3.00 | 5.10 | 255.37 | 20.14 | 272.11 | 0.3447 | -912.1 | 999999 | |
| 0.87 | -3.00 | 0.46 | -3.00 | 5.32 | 255.12 | 19.89 | 272.75 | 0.3406 | -1127.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 3.74 | 255.01 | 19.78 | 268.09 | 0.3394 | 603.0 | 428.7 | |
| 4.25 | 6.94 | 2.24 | 3.65 | 3.33 | 254.94 | 19.71 | 266.84 | 0.3387 | 959.7 | 903.4 | |
| 1.99 | -3.00 | 1.05 | -3.00 | 5.41 | 254.93 | 19.70 | 273.04 | 0.3376 | -1100.0 | 999999 | |
| 1.73 | -3.00 | 0.91 | -3.00 | 5.17 | 254.92 | 19.69 | 272.33 | 0.3374 | -1042.9 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 3.69 | 254.76 | 19.53 | 267.88 | 0.3353 | 615.0 | 544.8 | |
| 2.34 | -3.00 | 1.23 | -3.00 | 5.48 | 254.71 | 19.48 | 273.25 | 0.3340 | -1244.9 | 999999 | |
| 1.73 | -3.00 | 0.91 | -3.00 | 4.82 | 254.69 | 19.46 | 271.28 | 0.3336 | -859.8 | 999999 | |
| 4.68 | -3.00 | 2.46 | -3.00 | 5.72 | 254.62 | 19.40 | 273.98 | 0.3327 | -1409.2 | 999999 | |
| 2.08 | -3.00 | 1.09 | -3.00 | 5.72 | 254.40 | 19.17 | 274.03 | 0.3291 | -1451.1 | 999999 | |
| 1.47 | -3.00 | 0.77 | -3.00 | 4.40 | 253.95 | 18.72 | 269.93 | 0.3215 | 639.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 4.58 | 253.74 | 18.51 | 270.50 | 0.3178 | 447.0 | 328.5 | |
| 0.35 | 24.10 | 0.18 | 12.55 | 6.32 | 253.35 | 18.12 | 276.07 | 0.3123 | -1019.2 | -726.4 | |
| 6.68 | 11.62 | 3.48 | 6.05 | 5.34 | 253.28 | 18.06 | 272.92 | 0.3104 | -1137.6 | -752.8 | |
| 4.07 | -19.00 | 2.12 | -19.00 | 6.20 | 253.22 | 17.99 | 275.73 | 0.3100 | -1150.4 | 999999 | |
| 7.80 | -19.00 | 4.06 | -19.00 | 6.65 | 253.20 | 17.97 | 277.18 | 0.3103 | -1109.2 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 7.69 | 253.21 | 17.99 | 280.51 | 0.3126 | -251.0 | -232.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 5.82 | 253.11 | 17.88 | 274.50 | 0.3078 | -980.0 | -812.9 | |
| 11.27 | 24.88 | 5.86 | 12.94 | 8.15 | 252.79 | 17.56 | 282.20 | 0.3070 | 1020.0 | 540.6 | |
| 0.00 | 4.42 | 0.00 | 2.30 | 6.60 | 252.67 | 17.44 | 277.19 | 0.3014 | -440.0 | -383.6 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 13.63 | 252.91 | 17.68 | 298.41 | 0.3370 | -869.0 | -744.1 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 7.15 | 252.37 | 17.14 | 279.11 | 0.2976 | -885.0 | -590.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 7.38 | 252.35 | 17.12 | 279.92 | 0.2977 | -615.0 | -502.6 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 7.04 | 251.99 | 16.76 | 278.90 | 0.2910 | -1027.0 | -847.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 5.49 | 251.63 | 16.40 | 273.63 | 0.2829 | -945.0 | -768.8 | |
| 2.08 | 4.07 | 1.07 | 2.10 | 6.12 | 251.55 | 16.33 | 275.87 | 0.2822 | -971.0 | -813.7 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 5.44 | 251.47 | 16.24 | 273.45 | 0.2802 | -842.0 | -681.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 6.76 | 250.98 | 15.75 | 278.36 | 0.2738 | -877.0 | -611.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 5.63 | 249.68 | 14.45 | 274.46 | 0.2502 | 688.0 | 571.5 | |
| 0.00 | 2.60 | 0.00 | 1.33 | 5.93 | 249.38 | 14.15 | 275.77 | 0.2455 | 900.0 | 708.7 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 4.61 | 248.21 | 12.98 | 270.30 | 0.2249 | 698.0 | 608.7 | |
| 0.00 | 2.77 | 0.00 | 1.41 | 8.40 | 248.09 | 12.86 | 286.96 | 0.2313 | 1000.0 | 892.8 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 7.74 | 248.01 | 12.78 | 284.26 | 0.2272 | 828.0 | 704.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 7.51 | 247.94 | 12.71 | 283.30 | 0.2252 | 788.0 | 719.9 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 8.73 | 247.70 | 12.47 | 288.85 | 0.2266 | 1111.0 | 906.2 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 8.20 | 247.50 | 12.27 | 286.80 | 0.2208 | 995.0 | 815.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 9.41 | 246.77 | 11.54 | 293.13 | 0.2156 | -878.0 | -640.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 9.91 | 246.79 | 11.56 | 295.26 | 0.2193 | 853.0 | 674.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.50 | 246.19 | 10.96 | 294.60 | 0.2072 | 846.0 | 677.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.09 | 246.02 | 10.79 | 293.03 | 0.2019 | 704.0 | 601.3 | |
| 1.47 | 2.95 | 0.74 | 1.49 | 9.13 | 245.47 | 10.24 | 294.26 | 0.1935 | 974.8 | 868.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.14 | 244.71 | 9.48 | 295.95 | 0.1816 | 955.0 | 733.9 | |
| 2.51 | 16.39 | 1.27 | 8.26 | 10.57 | 244.56 | 9.34 | 303.12 | 0.1913 | 911.8 | 775.5 | |
| 8.84 | 28.26 | 4.44 | 14.19 | 8.13 | 244.10 | 8.87 | 291.92 | 0.1654 | 1225.7 | 719.4 | |
| 4.51 | 43.96 | 2.27 | 22.10 | 9.53 | 244.14 | 8.91 | 299.35 | 0.1760 | 875.7 | 790.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 8.40 | 243.86 | 8.64 | 293.99 | 0.1634 | 868.0 | 613.4 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 8.52 | 243.81 | 8.58 | 294.81 | 0.1633 | 990.0 | 762.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 10.85 | 243.84 | 8.61 | 306.49 | 0.1837 | 852.0 | 719.5 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 8.82 | 243.63 | 8.40 | 296.94 | 0.1627 | 926.0 | 742.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 10.95 | 243.53 | 8.30 | 307.87 | 0.1805 | 633.0 | 552.6 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 9.27 | 243.43 | 8.20 | 299.98 | 0.1632 | 759.0 | 588.4 | |
| 6.07 | -51.00 | 3.05 | -51.00 | 9.69 | 243.35 | 8.12 | 302.44 | 0.1657 | 1215.2 | 999999 | |
| 3.38 | 91.82 | 1.70 | 46.09 | 10.86 | 243.29 | 8.06 | 308.30 | 0.1762 | 953.0 | 558.0 | |
| 0.00 | 4.42 | 0.00 | 2.22 | 10.23 | 243.21 | 7.98 | 305.60 | 0.1688 | 1006.0 | 915.0 | |
| 7.11 | -59.00 | 3.57 | -59.00 | 10.50 | 242.91 | 7.68 | 307.95 | 0.1674 | 1141.0 | 999999 | |
| 5.38 | -59.00 | 2.70 | -59.00 | 10.09 | 242.87 | 7.64 | 306.03 | 0.1626 | 1179.4 | 999999 | |
| 9.71 | -59.00 | 4.87 | -59.00 | 9.58 | 242.73 | 7.51 | 303.85 | 0.1558 | 1165.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 9.25 | 242.73 | 7.50 | 302.06 | 0.1527 | 710.0 | 534.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 11.20 | 242.65 | 7.42 | 312.08 | 0.1715 | 841.0 | 624.8 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 9.19 | 242.39 | 7.16 | 302.90 | 0.1473 | 1119.0 | 915.0 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 9.29 | 241.39 | 6.16 | 307.46 | 0.1341 | -801.0 | -547.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
