SDO HMI 2011-10-29 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.36 | 70.27 | 27.49 | 87.71 | 12.88 | 300.60 | 67.02 | 282.05 | 0.9181 | 288.0 | 84.8 | |
|
previous
or next observation for the same group /

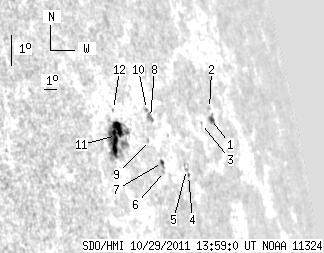

back to the solar disc SDO HMI 2011-10-29 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 5.11 | 3.63 | 8.60 | 12.86 | 306.97 | 73.39 | 282.04 | 0.9566 | -416.2 | -226.4 | |
| 0.00 | 1.99 | 0.00 | 3.34 | 13.19 | 307.02 | 73.43 | 282.38 | 0.9567 | -427.0 | -227.6 | |
| 0.00 | 0.69 | 0.00 | 1.10 | 12.82 | 305.89 | 72.31 | 281.98 | 0.9510 | -352.0 | -301.6 | |
| 0.69 | 1.30 | 0.99 | 1.85 | 11.40 | 303.73 | 70.15 | 280.44 | 0.9391 | -270.6 | -265.1 | |
| 0.00 | 1.47 | 0.00 | 2.09 | 11.59 | 303.66 | 70.08 | 280.64 | 0.9386 | -538.0 | -506.1 | |
| 0.00 | 1.04 | 0.00 | 1.36 | 11.67 | 301.80 | 68.21 | 280.71 | 0.9272 | -272.0 | -237.1 | |
| 1.56 | 3.03 | 2.04 | 3.96 | 11.94 | 301.78 | 68.19 | 281.01 | 0.9270 | 296.4 | 224.9 | |
| 0.00 | 4.68 | 0.00 | 6.06 | 13.33 | 301.56 | 67.98 | 282.51 | 0.9257 | 367.0 | 66.5 | |
| 0.00 | 0.78 | 0.00 | 0.99 | 12.66 | 301.10 | 67.52 | 281.79 | 0.9226 | -247.0 | -294.4 | |
| 0.00 | 0.61 | 0.00 | 0.78 | 13.58 | 301.39 | 67.80 | 282.79 | 0.9246 | 388.0 | 323.6 | |
| 17.94 | 48.79 | 20.83 | 56.67 | 12.99 | 298.73 | 65.15 | 282.17 | 0.9063 | 581.3 | 219.5 | |
| 0.00 | 0.78 | 0.00 | 0.91 | 13.77 | 298.92 | 65.33 | 283.03 | 0.9078 | 368.0 | 297.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
