groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11330 220.98 1139.43 116.33 601.80 6.69 253.35 19.76 278.54 0.3415 -481.3 -233.1


previous   or   next   observation for the same group / back to the solar disc

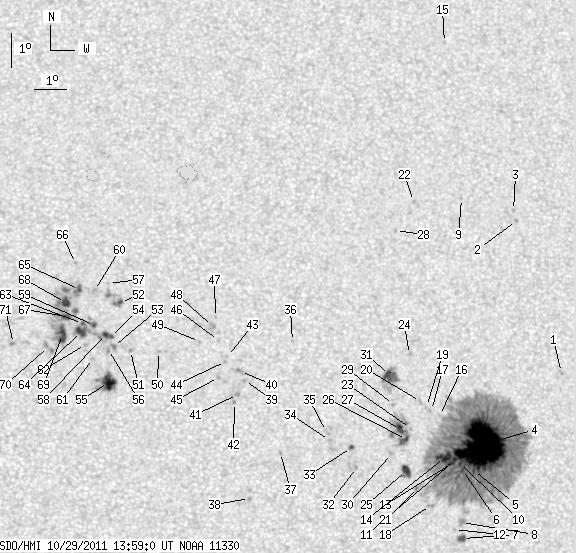

SDO HMI 2011-10-29 13:59:00 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.65 0.00 0.90 8.11 258.44 24.86 279.24 0.4234 -798.0 -650.9
2 0.00 1.39 0.00 0.76 12.70 257.33 23.74 290.47 0.4210 -792.0 -642.5
3 0.00 1.04 0.00 0.57 13.00 257.26 23.67 291.21 0.4214 -695.0 -473.2
4 128.78 815.14 68.82 435.25 6.02 255.68 22.09 274.55 0.3768 -1522.8 -427.1
5 1.04 -4.00 0.55 -4.00 5.28 255.42 21.84 272.59 0.3724 -1101.4 999999
6 1.21 -4.00 0.65 -4.00 5.32 255.07 21.48 272.71 0.3667 -958.7 999999
7 4.16 5.03 2.21 2.67 3.27 255.01 21.42 267.09 0.3667 983.2 848.6
8 0.00 5.29 0.00 2.81 3.75 254.99 21.40 268.39 0.3659 242.0 234.7
9 0.00 1.13 0.00 0.61 13.42 255.57 21.99 293.46 0.3987 -787.0 -639.2
10 0.95 -4.00 0.51 -4.00 5.51 254.98 21.39 273.21 0.3653 -1185.3 999999
11 1.13 -4.00 0.60 -4.00 5.63 254.85 21.27 273.56 0.3633 -1361.2 999999
12 0.00 0.95 0.00 0.51 3.55 254.76 21.17 267.79 0.3624 801.0 655.5
13 2.43 -4.00 1.29 -4.00 5.51 254.72 21.14 273.25 0.3611 -1302.7 999999
14 8.06 -4.00 4.27 -4.00 5.70 254.50 20.92 273.79 0.3577 -1427.5 999999
15 0.00 1.04 0.00 0.57 18.16 255.55 21.96 303.94 0.4302 -772.0 -606.5
16 0.00 0.95 0.00 0.51 6.95 254.40 20.81 277.32 0.3572 -688.0 -542.5
17 0.00 0.43 0.00 0.23 7.11 254.15 20.56 277.83 0.3534 -542.0 -574.0
18 0.00 2.34 0.00 1.24 4.28 254.01 20.43 269.77 0.3496 628.0 538.5
19 0.00 0.78 0.00 0.41 7.23 253.99 20.41 278.22 0.3511 -625.0 -523.1
20 0.00 2.34 0.00 1.24 7.39 253.81 20.23 278.72 0.3484 -691.0 -490.7
21 0.00 3.55 0.00 1.87 4.83 253.64 20.06 271.33 0.3434 487.0 240.1
22 0.00 1.39 0.00 0.74 13.37 253.99 20.41 294.77 0.3752 -726.0 -597.4
23 0.00 1.04 0.00 0.55 6.59 253.45 19.87 276.52 0.3413 -593.0 -506.9
24 0.00 1.47 0.00 0.78 8.80 253.53 19.95 282.87 0.3473 228.0 271.1
25 6.76 10.05 3.56 5.29 5.35 253.28 19.70 272.86 0.3375 -1087.7 -801.3
26 1.04 38.74 0.55 20.36 6.27 253.31 19.73 275.59 0.3387 -1123.2 -658.0
27 4.33 -26.00 2.28 -26.00 6.57 253.13 19.55 276.53 0.3361 -1119.4 999999
28 0.00 1.04 0.00 0.55 12.52 253.33 19.75 293.21 0.3605 -701.0 -620.8
29 0.00 1.13 0.00 0.59 7.32 252.94 19.36 278.82 0.3342 -770.0 -542.2
30 0.00 1.99 0.00 1.05 5.86 252.82 19.24 274.46 0.3302 -939.0 -731.3
31 9.36 25.91 4.92 13.61 8.19 252.86 19.27 281.44 0.3348 1047.3 558.7
32 0.00 1.73 0.00 0.90 5.48 251.70 18.12 273.39 0.3115 -961.0 -782.6
33 1.56 1.99 0.81 1.04 6.07 251.57 17.98 275.34 0.3097 -981.8 -956.8
34 0.00 1.73 0.00 0.90 6.30 250.88 17.30 276.25 0.2986 -821.0 -637.9
35 0.00 2.43 0.00 1.26 6.57 250.80 17.21 277.18 0.2976 -227.0 -258.2
36 0.00 0.95 0.00 0.49 9.28 249.84 16.26 286.86 0.2900 -782.0 -583.6
37 0.00 1.56 0.00 0.80 5.98 249.34 15.76 275.52 0.2726 777.0 605.7
38 0.00 1.39 0.00 0.71 4.63 248.35 14.76 270.50 0.2551 786.0 635.1
39 0.00 1.73 0.00 0.89 8.15 248.29 14.71 284.18 0.2605 833.0 624.3
40 0.00 4.16 0.00 2.13 8.42 248.18 14.60 285.30 0.2596 937.0 752.7
41 0.00 1.91 0.00 0.98 7.73 248.06 14.48 282.79 0.2552 838.0 732.9
42 0.00 1.39 0.00 0.71 7.50 247.96 14.38 281.94 0.2528 804.0 659.9
43 0.00 0.78 0.00 0.40 8.87 247.79 14.21 287.39 0.2553 792.0 721.9
44 0.00 1.13 0.00 0.58 8.72 247.73 14.14 286.90 0.2536 960.0 779.6
45 0.00 1.21 0.00 0.62 8.25 247.49 13.91 285.30 0.2477 1051.0 856.1
46 0.00 1.21 0.00 0.62 9.35 247.53 13.95 289.51 0.2535 847.0 626.4
47 0.00 0.87 0.00 0.44 10.04 247.47 13.89 292.16 0.2563 659.0 532.5
48 0.00 4.68 0.00 2.40 9.78 247.36 13.78 291.31 0.2531 701.0 650.4
49 0.00 1.21 0.00 0.62 9.34 246.94 13.36 290.17 0.2440 -818.0 -543.6
50 0.00 1.13 0.00 0.57 9.06 245.67 12.08 290.81 0.2221 830.0 626.5
51 0.00 1.47 0.00 0.75 9.10 244.81 11.22 292.37 0.2087 846.0 576.0
52 1.73 13.43 0.88 6.81 10.54 244.55 10.96 299.09 0.2149 929.9 793.6
53 0.00 2.95 0.00 1.49 9.23 244.29 10.70 293.88 0.2014 744.0 581.2
54 0.87 37.09 0.44 18.73 9.53 244.20 10.62 295.41 0.2022 867.5 764.1
55 12.83 27.99 6.47 14.12 8.16 244.10 10.52 289.07 0.1921 1184.3 663.0
56 0.00 1.91 0.00 0.96 9.14 244.13 10.55 293.77 0.1984 915.0 793.7
57 0.00 1.04 0.00 0.53 11.12 244.20 10.61 302.22 0.2146 609.0 411.4
58 2.77 -54.00 1.40 -54.00 9.59 244.05 10.47 296.00 0.2003 985.6 999999
59 1.99 -54.00 1.01 -54.00 9.87 243.72 10.14 297.96 0.1973 857.4 999999
60 0.00 2.17 0.00 1.10 10.91 243.76 10.17 302.44 0.2065 919.0 720.6
61 0.00 1.39 0.00 0.70 8.88 243.63 10.05 293.49 0.1889 965.0 688.1
62 0.00 1.99 0.00 1.01 9.30 243.43 9.85 295.97 0.1886 916.0 721.2
63 1.47 -54.00 0.74 -54.00 9.93 243.36 9.77 299.11 0.1923 864.4 999999
64 6.76 -54.00 3.41 -54.00 9.69 243.32 9.74 298.08 0.1898 1167.1 999999
65 0.69 80.77 0.35 40.72 10.95 243.30 9.71 303.77 0.2002 1020.1 685.5
66 0.00 1.47 0.00 0.75 11.73 243.20 9.62 307.22 0.2064 599.0 484.8
67 4.94 -65.00 2.49 -65.00 10.15 242.87 9.29 301.33 0.1869 1125.2 999999
68 6.15 -65.00 3.10 -65.00 10.57 242.86 9.27 303.29 0.1904 1158.5 999999
69 9.97 -65.00 5.02 -65.00 9.61 242.74 9.15 299.13 0.1804 1143.2 999999
70 0.00 4.59 0.00 2.31 9.26 242.30 8.72 298.49 0.1709 956.0 889.3
71 0.00 2.17 0.00 1.09 9.36 241.24 7.65 302.19 0.1560 -888.0 -600.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
