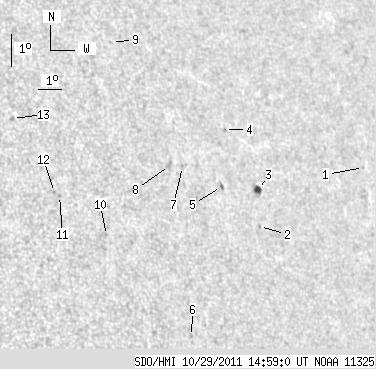

SDO HMI 2011-10-29 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.16 | 22.61 | 3.05 | 15.90 | 16.92 | 277.26 | 44.22 | 289.46 | 0.7090 | 109.8 | 173.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.85 | 16.93 | 285.13 | 52.10 | 287.81 | 0.7952 | -477.0 | -381.8 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 15.45 | 279.65 | 46.62 | 286.82 | 0.7342 | 220.0 | 335.2 | |
| 4.16 | 4.85 | 3.05 | 3.56 | 16.57 | 279.95 | 46.92 | 288.27 | 0.7395 | -666.8 | -603.8 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 18.47 | 279.04 | 46.00 | 291.02 | 0.7333 | -538.0 | -520.6 | |
| 0.00 | 2.43 | 0.00 | 1.73 | 16.75 | 278.34 | 45.31 | 288.86 | 0.7217 | -459.0 | -412.9 | |
| 0.00 | 1.39 | 0.00 | 0.94 | 12.32 | 275.93 | 42.90 | 283.08 | 0.6851 | 588.0 | 481.0 | |
| 0.00 | 1.47 | 0.00 | 1.03 | 17.45 | 276.84 | 43.81 | 290.20 | 0.7060 | 464.0 | 398.2 | |
| 0.00 | 4.07 | 0.00 | 2.82 | 17.51 | 276.30 | 43.26 | 290.43 | 0.6998 | 656.0 | 412.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | 21.39 | 275.07 | 42.04 | 296.25 | 0.6975 | 479.0 | 397.6 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 15.53 | 273.14 | 40.11 | 288.45 | 0.6567 | 689.0 | 576.9 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 16.83 | 271.57 | 38.53 | 290.91 | 0.6406 | 649.0 | 513.8 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 16.93 | 271.39 | 38.36 | 291.13 | 0.6387 | 726.0 | 573.3 | |
| 0.00 | 1.56 | 0.00 | 1.00 | 19.26 | 270.32 | 37.28 | 295.10 | 0.6337 | 689.0 | 563.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
