SDO HMI 2011-10-29 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 219.84 | 1142.28 | 116.24 | 605.40 | 6.62 | 253.40 | 20.37 | 278.07 | 0.3511 | -517.1 | -220.9 | |
|
previous
or next observation for the same group /

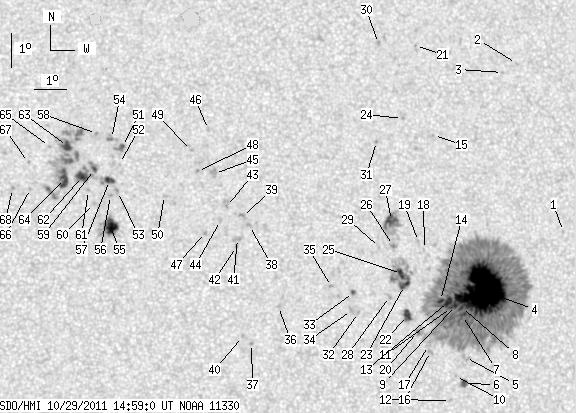

back to the solar disc SDO HMI 2011-10-29 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.81 | 7.67 | 258.46 | 25.43 | 278.08 | 0.4316 | -781.0 | -519.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 12.74 | 257.31 | 24.28 | 290.21 | 0.4292 | -743.0 | -650.0 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 12.49 | 256.82 | 23.79 | 289.96 | 0.4207 | -764.0 | -524.3 | |
| 131.10 | 826.12 | 70.36 | 442.77 | 6.00 | 255.71 | 22.67 | 274.44 | 0.3862 | -1529.7 | -419.1 | |
| 0.00 | 4.33 | 0.00 | 2.31 | 4.03 | 255.09 | 22.05 | 269.22 | 0.3762 | 178.0 | 160.0 | |
| 3.99 | 4.68 | 2.13 | 2.50 | 3.25 | 255.03 | 22.00 | 267.16 | 0.3761 | 926.6 | 991.5 | |
| 3.29 | -4.00 | 1.76 | -4.00 | 5.28 | 255.03 | 22.00 | 272.57 | 0.3750 | -1082.7 | 999999 | |
| 0.95 | -4.00 | 0.51 | -4.00 | 5.52 | 255.01 | 21.97 | 273.21 | 0.3747 | -1148.5 | 999999 | |
| 1.47 | -4.00 | 0.79 | -4.00 | 5.58 | 254.82 | 21.78 | 273.40 | 0.3716 | -1338.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 3.47 | 254.75 | 21.72 | 267.68 | 0.3712 | 522.0 | 536.9 | |
| 1.13 | -4.00 | 0.60 | -4.00 | 5.53 | 254.69 | 21.65 | 273.26 | 0.3695 | -1264.6 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 2.76 | 254.57 | 21.54 | 265.73 | 0.3694 | 840.0 | 623.6 | |
| 4.33 | -4.00 | 2.31 | -4.00 | 5.71 | 254.60 | 21.56 | 273.76 | 0.3681 | -1445.2 | 999999 | |
| 2.17 | -4.00 | 1.15 | -4.00 | 5.74 | 254.34 | 21.31 | 273.88 | 0.3640 | -1368.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 10.67 | 254.39 | 21.36 | 287.12 | 0.3761 | -764.0 | -602.5 | |
| 0.00 | 2.77 | 0.00 | 1.47 | 4.24 | 253.97 | 20.94 | 269.69 | 0.3579 | 868.0 | 626.2 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 4.42 | 253.91 | 20.88 | 270.19 | 0.3569 | 640.0 | 346.6 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 7.28 | 253.89 | 20.86 | 278.22 | 0.3585 | -553.0 | -413.8 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 7.52 | 253.71 | 20.68 | 278.96 | 0.3560 | -594.0 | -425.6 | |
| 0.35 | -4.00 | 0.18 | -4.00 | 4.84 | 253.57 | 20.54 | 271.38 | 0.3512 | 735.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.38 | 254.03 | 21.00 | 294.25 | 0.3840 | -753.0 | -627.3 | |
| 6.76 | 7.54 | 3.57 | 3.98 | 5.33 | 253.27 | 20.24 | 272.78 | 0.3463 | -1098.7 | -926.6 | |
| 4.68 | 42.72 | 2.47 | 22.53 | 6.22 | 253.21 | 20.17 | 275.39 | 0.3459 | -1099.3 | -616.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.21 | 253.43 | 20.39 | 289.21 | 0.3635 | -755.0 | -613.0 | |
| 4.51 | -23.00 | 2.38 | -23.00 | 6.58 | 253.13 | 20.09 | 276.45 | 0.3450 | -1042.4 | 999999 | |
| 0.00 | 2.95 | 0.00 | 1.55 | 7.42 | 252.91 | 19.87 | 278.95 | 0.3428 | -399.0 | -231.7 | |
| 7.54 | 25.13 | 3.97 | 13.25 | 8.17 | 252.88 | 19.85 | 281.13 | 0.3440 | 1055.4 | 594.6 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 5.91 | 252.72 | 19.68 | 274.54 | 0.3376 | -929.0 | -758.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 7.38 | 252.46 | 19.43 | 278.97 | 0.3354 | -589.0 | -366.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 13.48 | 252.83 | 19.80 | 295.64 | 0.3669 | -794.0 | -716.7 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 10.54 | 252.54 | 19.51 | 288.07 | 0.3468 | -941.0 | -705.4 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 5.46 | 251.72 | 18.69 | 273.29 | 0.3209 | -937.0 | -750.9 | |
| 1.73 | 1.82 | 0.91 | 0.95 | 6.06 | 251.58 | 18.55 | 275.18 | 0.3190 | -991.5 | -753.0 | |
| 0.00 | 2.60 | 0.00 | 1.36 | 5.52 | 251.50 | 18.47 | 273.51 | 0.3173 | -892.0 | -712.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 6.25 | 250.89 | 17.86 | 275.96 | 0.3079 | -824.0 | -712.4 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 5.70 | 249.22 | 16.18 | 274.42 | 0.2794 | 642.0 | 433.0 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 4.62 | 248.35 | 15.32 | 270.48 | 0.2645 | 785.0 | 577.7 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 8.13 | 248.40 | 15.36 | 283.61 | 0.2711 | 768.0 | 677.7 | |
| 0.00 | 3.38 | 0.00 | 1.74 | 8.40 | 248.19 | 15.16 | 284.77 | 0.2687 | 659.0 | 740.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 4.83 | 248.08 | 15.04 | 271.29 | 0.2599 | 782.0 | 530.2 | |
| 0.00 | 4.33 | 0.00 | 2.22 | 7.75 | 248.01 | 14.98 | 282.50 | 0.2634 | 744.0 | 638.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 7.51 | 247.97 | 14.94 | 281.63 | 0.2621 | 755.0 | 668.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 8.71 | 247.70 | 14.67 | 286.33 | 0.2620 | 880.0 | 770.4 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 8.30 | 247.50 | 14.47 | 284.97 | 0.2571 | 1013.0 | 731.6 | |
| 0.00 | 4.85 | 0.00 | 2.49 | 9.70 | 247.37 | 14.34 | 290.34 | 0.2615 | 725.0 | 723.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 11.02 | 247.25 | 14.21 | 295.19 | 0.2675 | 797.0 | 570.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 7.95 | 247.02 | 13.99 | 284.04 | 0.2479 | 875.0 | 672.6 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 9.77 | 246.85 | 13.81 | 291.26 | 0.2536 | 859.0 | 686.8 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 10.40 | 246.69 | 13.65 | 293.81 | 0.2549 | 859.0 | 688.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 9.08 | 245.79 | 12.76 | 289.93 | 0.2331 | 819.0 | 599.8 | |
| 1.99 | 5.63 | 1.01 | 2.86 | 10.56 | 244.55 | 11.52 | 298.03 | 0.2234 | 830.5 | 938.8 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 10.05 | 244.44 | 11.41 | 296.17 | 0.2180 | 606.0 | 578.2 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 9.22 | 244.35 | 11.32 | 292.73 | 0.2110 | 713.0 | 589.9 | |
| 0.00 | 4.94 | 0.00 | 2.51 | 10.81 | 244.22 | 11.19 | 299.69 | 0.2204 | 907.0 | 747.5 | |
| 14.21 | 24.35 | 7.18 | 12.31 | 8.18 | 244.10 | 11.07 | 288.33 | 0.2011 | 1152.1 | 642.8 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 9.10 | 244.13 | 11.10 | 292.59 | 0.2068 | 962.0 | 774.0 | |
| 4.42 | 8.67 | 2.24 | 4.39 | 9.55 | 244.12 | 11.08 | 294.62 | 0.2095 | 945.5 | 806.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 10.96 | 243.76 | 10.73 | 301.33 | 0.2150 | 897.0 | 762.9 | |
| 1.91 | 27.38 | 0.96 | 13.84 | 9.89 | 243.67 | 10.63 | 296.99 | 0.2049 | 978.5 | 778.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 8.87 | 243.63 | 10.60 | 292.40 | 0.1975 | 898.0 | 685.2 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 9.26 | 243.46 | 10.43 | 294.57 | 0.1973 | 868.0 | 709.9 | |
| 7.63 | -59.00 | 3.85 | -59.00 | 9.68 | 243.29 | 10.26 | 296.87 | 0.1977 | 1162.2 | 999999 | |
| 6.24 | 87.17 | 3.15 | 44.00 | 10.59 | 242.86 | 9.83 | 301.93 | 0.1985 | 1144.5 | 732.0 | |
| 9.44 | -63.00 | 4.76 | -63.00 | 9.63 | 242.74 | 9.70 | 297.88 | 0.1889 | 1143.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 10.59 | 242.31 | 9.27 | 303.42 | 0.1906 | 804.0 | 597.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.35 | 241.69 | 8.66 | 299.11 | 0.1708 | -272.0 | -279.5 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 10.12 | 241.65 | 8.62 | 303.12 | 0.1769 | 746.0 | 571.8 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 9.35 | 241.14 | 8.11 | 300.72 | 0.1626 | -912.0 | -756.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
