groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11330 221.48 1086.86 117.60 578.50 6.61 253.54 21.06 277.68 0.3621 -540.6 -233.5


previous   or   next   observation for the same group / back to the solar disc

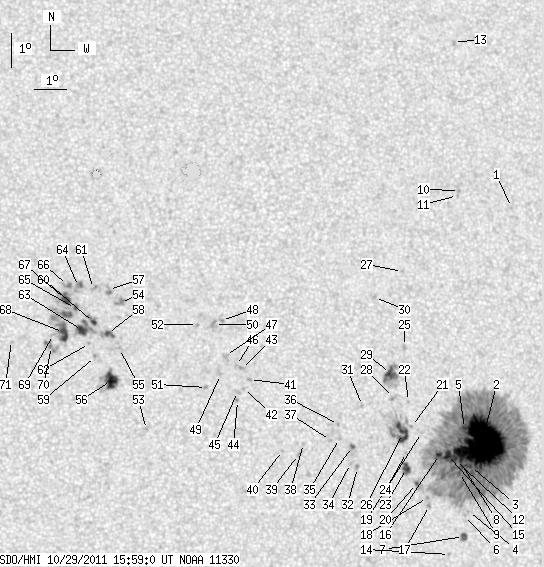

SDO HMI 2011-10-29 15:59:00 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.87 0.00 0.48 13.03 257.23 24.75 290.55 0.4374 -786.0 -594.3
2 137.33 793.98 73.99 427.35 6.01 255.71 23.23 274.41 0.3951 -1538.7 -435.2
3 1.04 -2.00 0.56 -2.00 5.34 255.33 22.84 272.71 0.3886 -1206.2 999999
4 0.00 0.95 0.00 0.51 4.00 255.21 22.73 269.25 0.3872 521.0 411.5
5 0.26 -2.00 0.14 -2.00 6.48 255.18 22.70 275.67 0.3869 -1401.7 999999
6 0.00 1.21 0.00 0.65 3.89 255.08 22.60 268.94 0.3851 459.0 331.1
7 4.33 4.59 2.32 2.46 3.27 255.03 22.55 267.30 0.3850 904.1 713.7
8 1.13 -2.00 0.60 -2.00 5.44 255.04 22.55 272.98 0.3840 -1087.1 999999
9 1.21 -2.00 0.65 -2.00 5.17 254.96 22.48 272.29 0.3827 -1070.4 999999
10 0.00 1.39 0.00 0.75 13.59 255.55 23.07 293.01 0.4155 -739.0 -566.1
11 0.00 0.87 0.00 0.47 13.45 255.47 22.98 292.73 0.4135 -774.0 -564.9
12 0.52 -2.00 0.28 -2.00 5.53 254.85 22.36 273.24 0.3810 -1119.5 999999
13 0.00 1.65 0.00 0.91 18.08 255.90 23.41 302.28 0.4487 -681.0 -616.3
14 0.00 1.39 0.00 0.74 2.74 254.57 22.09 265.83 0.3782 827.0 562.9
15 4.51 -2.00 2.41 -2.00 5.72 254.60 22.11 273.75 0.3770 -1424.8 999999
16 1.73 -2.00 0.92 -2.00 5.73 254.34 21.85 273.79 0.3728 -1380.3 999999
17 0.00 2.60 0.00 1.38 4.22 253.96 21.48 269.70 0.3668 846.0 626.7
18 0.00 1.73 0.00 0.92 4.46 253.91 21.42 270.35 0.3658 628.0 505.1
19 0.00 0.87 0.00 0.46 6.40 253.79 21.30 275.69 0.3644 -785.0 -602.1
20 1.30 6.84 0.69 3.63 4.89 253.57 21.08 271.52 0.3601 551.3 4.5
21 0.00 0.95 0.00 0.51 6.59 253.47 20.99 276.27 0.3596 -612.0 -485.5
22 0.00 1.13 0.00 0.60 7.34 253.41 20.93 278.36 0.3597 -701.0 -542.9
23 5.55 7.88 2.94 4.17 5.34 253.26 20.78 272.80 0.3552 -1108.3 -909.7
24 0.00 1.47 0.00 0.78 5.82 253.28 20.80 274.14 0.3557 -982.0 -640.4
25 0.00 2.08 0.00 1.10 8.98 253.37 20.89 282.90 0.3629 805.0 617.0
26 11.44 31.54 6.05 16.69 6.39 253.18 20.69 275.77 0.3545 -1066.6 -689.4
27 0.00 0.78 0.00 0.42 11.22 253.46 20.98 288.81 0.3726 -783.0 -641.0
28 0.00 2.95 0.00 1.56 7.47 252.94 20.45 278.89 0.3522 -469.0 -143.5
29 6.93 24.26 3.67 12.84 8.19 252.88 20.39 280.93 0.3529 1045.7 579.3
30 0.00 1.65 0.00 0.87 10.47 252.50 20.02 287.50 0.3545 -851.0 -564.5
31 0.00 1.39 0.00 0.73 7.26 251.94 19.45 278.61 0.3356 -750.0 -549.4
32 0.00 2.34 0.00 1.23 5.42 251.71 19.22 273.11 0.3297 -966.0 -793.3
33 1.65 3.12 0.86 1.63 6.05 251.57 19.09 275.05 0.3279 -915.4 -649.2
34 0.00 1.04 0.00 0.54 5.54 251.49 19.01 273.51 0.3262 -817.0 -689.6
35 0.00 1.47 0.00 0.77 6.29 251.17 18.68 275.89 0.3215 -797.0 -578.4
36 0.00 1.30 0.00 0.68 6.71 251.15 18.67 277.20 0.3219 -824.0 -652.9
37 0.00 0.69 0.00 0.36 6.24 250.88 18.40 275.79 0.3168 -929.0 -875.9
38 0.00 1.56 0.00 0.81 6.17 250.03 17.55 275.77 0.3026 743.0 534.9
39 0.00 2.08 0.00 1.08 5.85 249.86 17.38 274.72 0.2995 765.0 621.0
40 0.00 1.04 0.00 0.54 5.98 249.36 16.88 275.27 0.2913 932.0 715.9
41 0.00 1.91 0.00 0.98 8.12 248.41 15.93 283.16 0.2802 825.0 630.0
42 0.00 0.78 0.00 0.40 7.85 248.21 15.73 282.36 0.2762 706.0 618.6
43 0.00 2.08 0.00 1.07 8.45 248.17 15.69 284.51 0.2776 1011.0 795.9
44 0.00 1.30 0.00 0.67 7.50 248.01 15.53 281.21 0.2718 831.0 735.7
45 0.00 2.86 0.00 1.47 7.77 248.02 15.54 282.18 0.2728 738.0 605.1
46 0.00 0.61 0.00 0.31 8.54 248.02 15.54 284.96 0.2754 912.0 719.3
47 0.00 4.16 0.00 2.14 8.85 247.69 15.21 286.34 0.2713 951.0 750.0
48 0.00 1.82 0.00 0.94 9.90 247.61 15.13 290.11 0.2750 719.0 569.7
49 0.00 1.04 0.00 0.53 8.29 247.51 15.03 284.45 0.2662 1059.0 818.9
50 0.00 4.25 0.00 2.18 9.78 247.39 14.90 289.96 0.2709 818.0 729.4
51 0.00 1.47 0.00 0.75 7.91 247.06 14.58 283.39 0.2574 801.0 647.7
52 0.00 0.95 0.00 0.49 9.79 246.86 14.37 290.62 0.2626 867.0 694.0
53 0.00 1.47 0.00 0.75 6.69 245.17 12.69 279.76 0.2224 755.0 629.2
54 0.00 6.15 0.00 3.13 10.49 244.50 12.01 296.83 0.2304 1142.0 817.5
55 0.00 1.30 0.00 0.66 9.12 244.41 11.93 291.30 0.2201 636.0 504.4
56 13.00 27.99 6.58 14.17 8.17 244.14 11.65 287.48 0.2106 1141.9 607.5
57 0.00 4.16 0.00 2.12 10.89 244.14 11.66 299.06 0.2280 579.0 742.8
58 2.08 7.45 1.05 3.78 9.57 244.06 11.58 293.83 0.2173 1040.0 872.5
59 0.00 1.13 0.00 0.57 8.89 243.67 11.19 291.49 0.2069 941.0 776.5
60 1.91 6.32 0.97 3.21 9.91 243.64 11.16 296.03 0.2131 968.8 704.9
61 0.00 2.43 0.00 1.23 10.93 243.68 11.19 300.16 0.2215 884.0 763.2
62 0.00 1.13 0.00 0.57 9.28 243.50 11.01 293.56 0.2066 908.0 690.9
63 6.41 17.15 3.24 8.68 9.68 243.29 10.81 295.69 0.2061 1160.9 868.0
64 0.00 6.76 0.00 3.43 10.99 243.22 10.73 301.45 0.2153 978.0 804.8
65 1.56 3.29 0.79 1.67 10.34 243.10 10.62 298.98 0.2082 1068.8 868.5
66 0.00 4.16 0.00 2.11 11.03 242.88 10.40 302.38 0.2107 917.0 771.4
67 7.19 14.30 3.64 7.23 10.61 242.80 10.32 300.82 0.2060 1104.9 641.5
68 10.40 38.04 5.25 19.22 9.62 242.71 10.23 296.67 0.1968 1143.5 735.8
69 0.00 1.39 0.00 0.70 9.57 242.40 9.92 297.09 0.1917 322.0 315.0
70 0.00 8.66 0.00 4.37 9.21 242.33 9.85 295.53 0.1879 1020.0 850.4
71 0.00 0.69 0.00 0.35 9.41 241.11 8.63 299.50 0.1709 -670.0 -675.9


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
