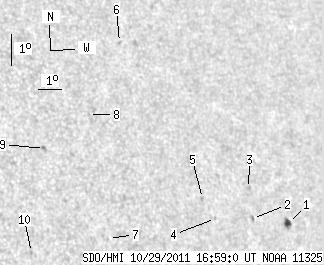

SDO HMI 2011-10-29 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.12 | 17.51 | 2.33 | 12.39 | 17.76 | 276.44 | 44.51 | 290.61 | 0.7144 | 210.3 | 93.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.12 | 5.72 | 2.33 | 4.27 | 16.56 | 279.95 | 48.02 | 288.04 | 0.7517 | -631.3 | -583.5 | |
| 0.00 | 1.82 | 0.00 | 1.32 | 16.81 | 278.37 | 46.44 | 288.69 | 0.7347 | -368.0 | -371.5 | |
| 0.00 | 1.47 | 0.00 | 1.08 | 17.72 | 278.49 | 46.56 | 289.89 | 0.7379 | -201.0 | -297.6 | |
| 0.00 | 0.87 | 0.00 | 0.61 | 16.90 | 276.75 | 44.82 | 289.18 | 0.7164 | 546.0 | 451.0 | |
| 0.00 | 1.56 | 0.00 | 1.10 | 17.53 | 276.37 | 44.44 | 290.15 | 0.7136 | 684.0 | 511.2 | |
| 0.00 | 1.30 | 0.00 | 0.91 | 22.50 | 274.46 | 42.53 | 297.58 | 0.7069 | 626.0 | 499.3 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 16.53 | 272.12 | 40.19 | 289.92 | 0.6603 | 546.0 | 499.8 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 20.35 | 272.38 | 40.45 | 295.39 | 0.6756 | 566.0 | 452.3 | |
| 0.00 | 2.25 | 0.00 | 1.46 | 19.40 | 270.29 | 38.36 | 294.84 | 0.6473 | 707.0 | 487.2 | |
| 0.00 | 1.13 | 0.00 | 0.71 | 16.26 | 268.99 | 37.06 | 290.55 | 0.6201 | 748.0 | 643.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
