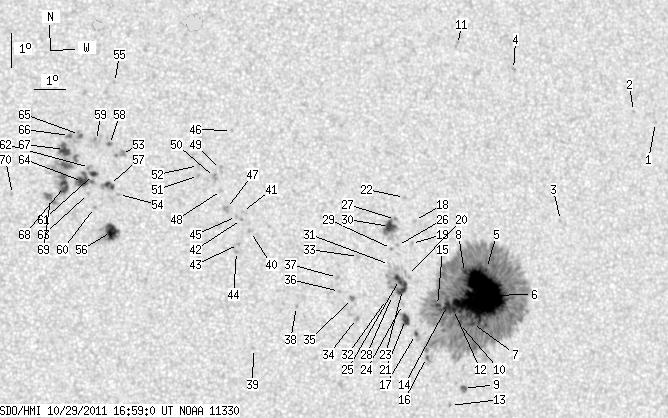

SDO HMI 2011-10-29 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 213.48 | 1076.25 | 113.69 | 575.12 | 6.63 | 253.58 | 21.64 | 277.60 | 0.3714 | -539.2 | -256.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-29 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.60 | 10.94 | 262.01 | 30.08 | 283.72 | 0.5086 | -648.0 | -421.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 11.30 | 261.28 | 29.35 | 284.68 | 0.4989 | -682.0 | -607.4 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 8.14 | 258.49 | 26.56 | 278.89 | 0.4499 | -824.0 | -533.2 | |
| 0.00 | 1.99 | 0.00 | 1.10 | 12.70 | 257.32 | 25.39 | 289.45 | 0.4454 | -810.0 | -672.7 | |
| 0.35 | 786.47 | 0.19 | 425.08 | 6.79 | 255.95 | 24.02 | 276.25 | 0.4083 | -944.2 | -444.5 | |
| 125.53 | -5.00 | 67.93 | -5.00 | 5.99 | 255.75 | 23.81 | 274.31 | 0.4044 | -1575.4 | 999999 | |
| 1.91 | -5.00 | 1.03 | -5.00 | 5.17 | 255.42 | 23.48 | 272.27 | 0.3989 | -1077.9 | 999999 | |
| 0.69 | -5.00 | 0.37 | -5.00 | 6.70 | 255.22 | 23.29 | 276.14 | 0.3967 | -1182.4 | 999999 | |
| 2.34 | 3.90 | 1.26 | 2.10 | 3.25 | 255.06 | 23.13 | 267.37 | 0.3943 | 894.1 | 884.4 | |
| 2.08 | -5.00 | 1.12 | -5.00 | 5.18 | 254.99 | 23.06 | 272.31 | 0.3921 | -1092.8 | 999999 | |
| 0.00 | 2.51 | 0.00 | 1.37 | 13.52 | 255.52 | 23.59 | 292.44 | 0.4228 | -652.0 | -583.7 | |
| 1.56 | -5.00 | 0.84 | -5.00 | 5.61 | 254.81 | 22.88 | 273.40 | 0.3894 | -1342.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 2.75 | 254.63 | 22.70 | 266.01 | 0.3880 | 824.0 | 652.2 | |
| 4.16 | -5.00 | 2.23 | -5.00 | 5.73 | 254.63 | 22.69 | 273.74 | 0.3864 | -1405.7 | 999999 | |
| 1.82 | -5.00 | 0.97 | -5.00 | 5.74 | 254.30 | 22.37 | 273.79 | 0.3812 | -1367.5 | 999999 | |
| 1.13 | 6.32 | 0.60 | 3.38 | 4.21 | 253.89 | 21.96 | 269.70 | 0.3746 | 716.9 | 200.9 | |
| 1.13 | 4.33 | 0.60 | 2.31 | 4.90 | 253.56 | 21.63 | 271.56 | 0.3690 | 633.8 | 236.8 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 8.29 | 253.68 | 21.75 | 280.69 | 0.3748 | -384.0 | -328.6 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 7.61 | 253.55 | 21.62 | 278.91 | 0.3712 | -468.0 | -422.0 | |
| 0.00 | 3.12 | 0.00 | 1.66 | 6.66 | 253.37 | 21.44 | 276.39 | 0.3670 | -538.0 | -502.0 | |
| 6.50 | 9.18 | 3.45 | 4.88 | 5.36 | 253.26 | 21.32 | 272.82 | 0.3641 | -1097.6 | -777.5 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 8.99 | 253.40 | 21.47 | 282.65 | 0.3721 | 758.0 | 518.2 | |
| 7.45 | 33.87 | 3.96 | 17.98 | 6.25 | 253.19 | 21.26 | 275.29 | 0.3636 | -1088.3 | -637.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 5.81 | 253.18 | 21.24 | 274.06 | 0.3630 | -724.0 | -612.3 | |
| 3.81 | -23.00 | 2.02 | -23.00 | 6.55 | 253.11 | 21.18 | 276.13 | 0.3626 | -1039.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 7.57 | 253.10 | 21.16 | 278.93 | 0.3639 | 561.0 | 347.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 8.34 | 253.07 | 21.14 | 281.06 | 0.3652 | 815.0 | 715.6 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 6.08 | 252.87 | 20.93 | 274.87 | 0.3581 | -860.0 | -720.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 7.48 | 252.90 | 20.97 | 278.76 | 0.3605 | -709.0 | -508.0 | |
| 9.27 | 16.72 | 4.92 | 8.88 | 8.14 | 252.87 | 20.94 | 280.59 | 0.3614 | 1008.9 | 517.6 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 7.01 | 252.81 | 20.88 | 277.47 | 0.3583 | -218.0 | -199.9 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 5.97 | 252.67 | 20.74 | 274.58 | 0.3548 | -837.0 | -728.7 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 7.27 | 251.83 | 19.90 | 278.51 | 0.3429 | -824.0 | -588.5 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 5.43 | 251.69 | 19.76 | 273.12 | 0.3386 | -983.0 | -820.5 | |
| 0.00 | 2.60 | 0.00 | 1.37 | 6.03 | 251.59 | 19.66 | 274.91 | 0.3372 | -1053.0 | -862.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 6.25 | 251.18 | 19.25 | 275.64 | 0.3308 | -739.0 | -572.0 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 6.67 | 251.14 | 19.20 | 276.91 | 0.3306 | -816.0 | -678.5 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 5.84 | 249.81 | 17.88 | 274.60 | 0.3078 | 810.0 | 645.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 4.62 | 248.43 | 16.50 | 270.55 | 0.2843 | 774.0 | 603.1 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 8.10 | 248.45 | 16.52 | 282.71 | 0.2899 | 774.0 | 686.4 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 8.71 | 248.23 | 16.29 | 284.92 | 0.2883 | 840.0 | 676.5 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 8.47 | 248.18 | 16.25 | 284.14 | 0.2868 | 968.0 | 840.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 7.73 | 248.06 | 16.13 | 281.65 | 0.2823 | 811.0 | 685.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 7.52 | 247.99 | 16.06 | 280.96 | 0.2806 | 909.0 | 677.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 8.56 | 248.03 | 16.10 | 284.57 | 0.2846 | 905.0 | 766.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 11.13 | 248.00 | 16.07 | 293.12 | 0.2967 | 595.0 | 528.6 | |
| 0.00 | 3.55 | 0.00 | 1.83 | 8.81 | 247.73 | 15.80 | 285.67 | 0.2807 | 855.0 | 851.1 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 9.35 | 247.60 | 15.67 | 287.65 | 0.2809 | 858.0 | 616.8 | |
| 0.00 | 2.60 | 0.00 | 1.34 | 9.97 | 247.60 | 15.66 | 289.79 | 0.2839 | 605.0 | 529.7 | |
| 0.00 | 3.64 | 0.00 | 1.88 | 9.74 | 247.40 | 15.46 | 289.21 | 0.2795 | 901.0 | 768.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 9.81 | 246.90 | 14.97 | 289.99 | 0.2720 | 847.0 | 702.6 | |
| 0.00 | 2.51 | 0.00 | 1.29 | 10.11 | 246.91 | 14.98 | 291.02 | 0.2739 | 595.0 | 530.7 | |
| 0.00 | 5.02 | 0.00 | 2.56 | 10.48 | 244.53 | 12.60 | 295.76 | 0.2392 | 1035.0 | 791.1 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 9.29 | 244.39 | 12.46 | 291.23 | 0.2295 | 739.0 | 559.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 12.64 | 244.41 | 12.48 | 303.75 | 0.2547 | 732.0 | 544.8 | |
| 12.74 | 24.95 | 6.46 | 12.66 | 8.19 | 244.14 | 12.21 | 286.88 | 0.2197 | 1171.0 | 614.3 | |
| 3.29 | 8.14 | 1.67 | 4.14 | 9.59 | 244.12 | 12.19 | 292.89 | 0.2271 | 867.4 | 910.5 | |
| 1.65 | 1.99 | 0.84 | 1.02 | 10.79 | 244.17 | 12.24 | 297.56 | 0.2360 | 968.1 | 899.5 | |
| 0.00 | 7.97 | 0.00 | 4.06 | 10.91 | 243.77 | 11.84 | 298.80 | 0.2310 | 724.0 | 627.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 8.91 | 243.64 | 11.71 | 290.75 | 0.2154 | 858.0 | 697.7 | |
| 3.03 | 4.16 | 1.54 | 2.11 | 9.90 | 243.64 | 11.71 | 294.97 | 0.2216 | 899.5 | 611.8 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 10.11 | 243.53 | 11.59 | 296.05 | 0.2213 | 898.0 | 738.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 9.34 | 243.47 | 11.54 | 292.87 | 0.2152 | 894.0 | 600.2 | |
| 7.19 | 15.25 | 3.65 | 7.73 | 9.70 | 243.30 | 11.36 | 294.73 | 0.2148 | 1120.2 | 934.9 | |
| 0.00 | 3.12 | 0.00 | 1.59 | 11.10 | 243.26 | 11.32 | 300.58 | 0.2248 | 817.0 | 770.7 | |
| 1.56 | 2.69 | 0.79 | 1.36 | 11.08 | 242.95 | 11.01 | 301.16 | 0.2201 | 865.3 | 764.8 | |
| 7.62 | 64.46 | 3.87 | 32.64 | 10.66 | 242.78 | 10.84 | 299.85 | 0.2141 | 1096.6 | 761.4 | |
| 6.67 | -67.00 | 3.38 | -67.00 | 9.56 | 242.74 | 10.81 | 295.17 | 0.2052 | 1126.6 | 999999 | |
| 0.00 | 9.01 | 0.00 | 4.55 | 9.20 | 242.30 | 10.37 | 294.42 | 0.1960 | 1153.0 | 903.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.34 | 241.14 | 9.21 | 297.65 | 0.1791 | -871.0 | -685.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
