SDO HMI 2011-10-29 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.68 | 36.57 | 8.16 | 18.88 | 14.94 | 244.08 | 12.70 | 311.35 | 0.2837 | -57.7 | 140.5 | |
|
previous
or next observation for the same group /

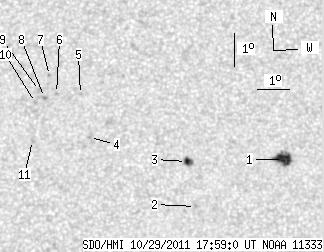

back to the solar disc SDO HMI 2011-10-29 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.82 | 16.89 | 6.69 | 8.81 | 14.39 | 247.06 | 15.68 | 303.31 | 0.3146 | -1076.9 | -721.1 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 13.03 | 244.19 | 12.81 | 304.34 | 0.2628 | 816.0 | 692.4 | |
| 2.86 | 6.24 | 1.47 | 3.21 | 14.39 | 243.98 | 12.60 | 308.97 | 0.2731 | -1096.0 | -947.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.16 | 240.98 | 9.60 | 318.73 | 0.2451 | 846.0 | 624.2 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 16.47 | 240.76 | 9.38 | 322.78 | 0.2596 | 752.0 | 558.5 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 16.51 | 240.01 | 8.63 | 325.11 | 0.2526 | 1025.0 | 825.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 17.06 | 239.81 | 8.43 | 326.97 | 0.2584 | 752.0 | 611.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.39 | 239.63 | 8.25 | 326.03 | 0.2474 | 1166.0 | 932.8 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 16.60 | 239.48 | 8.10 | 326.99 | 0.2490 | 834.0 | 611.0 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 16.24 | 239.34 | 7.96 | 326.60 | 0.2426 | 777.0 | 518.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.09 | 239.20 | 7.82 | 324.16 | 0.2254 | 858.0 | 727.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
